50Hz Metal Roof Ridge Cap Roll Forming Machine Cr12

Categories Ridge Cap Roll Forming Machine
Brand Name: Gracias
Model Number: Ridge cap
Certification: ISO,CE
Place of Origin: China
MOQ: one set
Price: Negotiable
Payment Terms: T/T, L/C
Supply Ability: 60sets per month
Delivery Time: 45 work days
Packaging Details: as customer's request
Voltage: 380V 50Hz 3phases
Condition: New
Tile type: Colored Steel,Galvanized steel (GL)
Use: Produce Ridge Cap tile
Warranty: 1 Year
Thickness: 0.3-0.8mm
After-sales service provided: Video technical support,Online support
Control system: PLC System
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

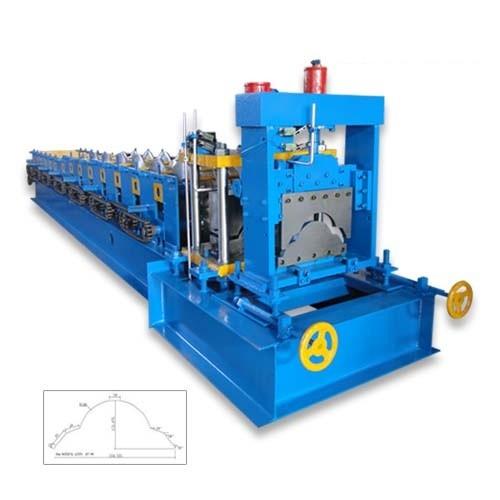

50Hz Metal Roof Ridge Cap Roll Forming Machine Cr12

50Hz Metal Roof Ridge Cap Roll Forming Machine Cr12


Product Description:

Model numberridge cap roll forming machine
Rolled material0.3-0.5mm thickness, aluminum sheet, galvanized sheet, colored steel sheet and various steel plates
Effective width1100mm
Feeding width1250mm
Forming steps11 stations
Roller45# forged steel, hard chrome plating within 0.05mm
Diameter of shaft60mm
Main motor power4 kw
Pump power3 kw
Sprocket chain1 inch
Drive typeby chain
Cutting BladeCr12, heat treatment 60-62°C
Frequency ConverterIt has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm).
component1 set of manual decoiler,1 set of main roll forming machine,1 set of computer control cabinet,1 set of hydraulic Syst

Detail Show:

1. main roll machine:
2. cutting system:
3. step-formed mechanism:(hydraulic)
4. decoiler and feeding:
5. PLC control box and hydraulic pump:
