| Categories | Video Digital Optical Converter |
|---|---|
| Brand Name: | Olycom |
| Model Number: | OM615-16V↑1D↓WT/R |
| Certification: | CE RoHS FCC |
| Place of Origin: | Shenzhen, China |
| MOQ: | 1 pair |
| Price: | Negotiable |
| Payment Terms: | T/T, Paypal |
| Supply Ability: | 800 pairs per week |
| Delivery Time: | 5~8 working days |
| Packaging Details: | 1 piece in 1 carton. 2.79KG/pcs |
| Product name: | RS485 data fiber video converter |
| Video: | 16 Port |
| Video port: | BNC |
| Data: | RS485, RS422 RS232 optional |
| Bandwidth: | 0~300kbps |
| Voltage: | AC220V |
| Dimension: | 48.5cm*23.7cm*4.5cm |
| Weight: | 5.58kg/pair(Gross Weight) |
| Operating Temp: | -20℃～+70℃ |
| Warranty: | 1 year |
| Company Info. |
| Shenzhen Olycom Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
1080P 4K AHD CVI TVI Video Data Optical Converter
Overview of 4K Video Fiber Converter
Olycom 1U rack 1080P AHD CVI TVI optical video transmitter and receiver features beow
Key Features of AHD CVI TVI Video Extender
Specification of Video Optical Converter
| Video | |
| Channel Quantity | 16ch from camera to control center |
| Compatible Systems | NTSC/PAL/SECAM |
| Impedance/Voltage | BNC 75Ω (unbalanced) / 2.0Vp-p |
| Differential Gain | < ±1% |
| Differential Phase | < ±1 |
| S/N ratio | >60dB(weighting)(8 bit) |
| Interface | BNC |
| Data | |
| Channel Quantity | 1, from control center to camera |
| Data Protocol | RS485 |
| Bandwidth | 0~300kbps |
| Error Rate | 10-9 |
| Interface | Phoenix terminal |
| Optical | |
| Wavelength | 1310nm/1550nm |
| Output Power | -8~3dBm |
| Optic fiber | Single mode (9/125um) 20Km, multimode (50/125um) 1Km, ( 62.5/125um) 500m |
| Receiving sensitivity | -30dBm |
| Interface | FC standard, ST/SC optional |
| Electrical. Environmental. Mechanical | |
| Operating Voltage | AC220V |
| Operating Temperature | -20℃～+70℃ |
| Storage Temperature | -45℃～+85℃ |
| Humidity | 0~95%non-condensing |
| Dimension | 485(L)*237(W)*45(H) mm, 19”1u |
| Weight | 2.24kg/piece (Net Weight), 5.58kg/pair(Gross Weight) |
Ordering Details
| OM615-16V↑1D↓WT/R-FC20 | 16ch video Tx + 1ch RS485 data Rx, single-mode, single fiber, 20Km, FC connector |
| OM615-16V↑1D↓MT/R-FC05 | 16ch video Tx + 1ch RS485 data Rx, multi-mode, single fiber, 1Km, FC connector |
Above listed are most frequently ordered items. Please contact us for other configurations.
Application
Our Advantages
Fast dispatch, it usually takes 2~4 working days to release out the order by DHL/FedEx/UPS.
Easy to customize: we support printing your logo/model name on the device even if it is an order for several pieces.
In stock: We got our own warehouse, for popular models, we have many in stock for fast delivery.
Real-time demonstration: We will send actual product photos and testing videos to clients, our production lines contribute to good in-sales and after-sales services.

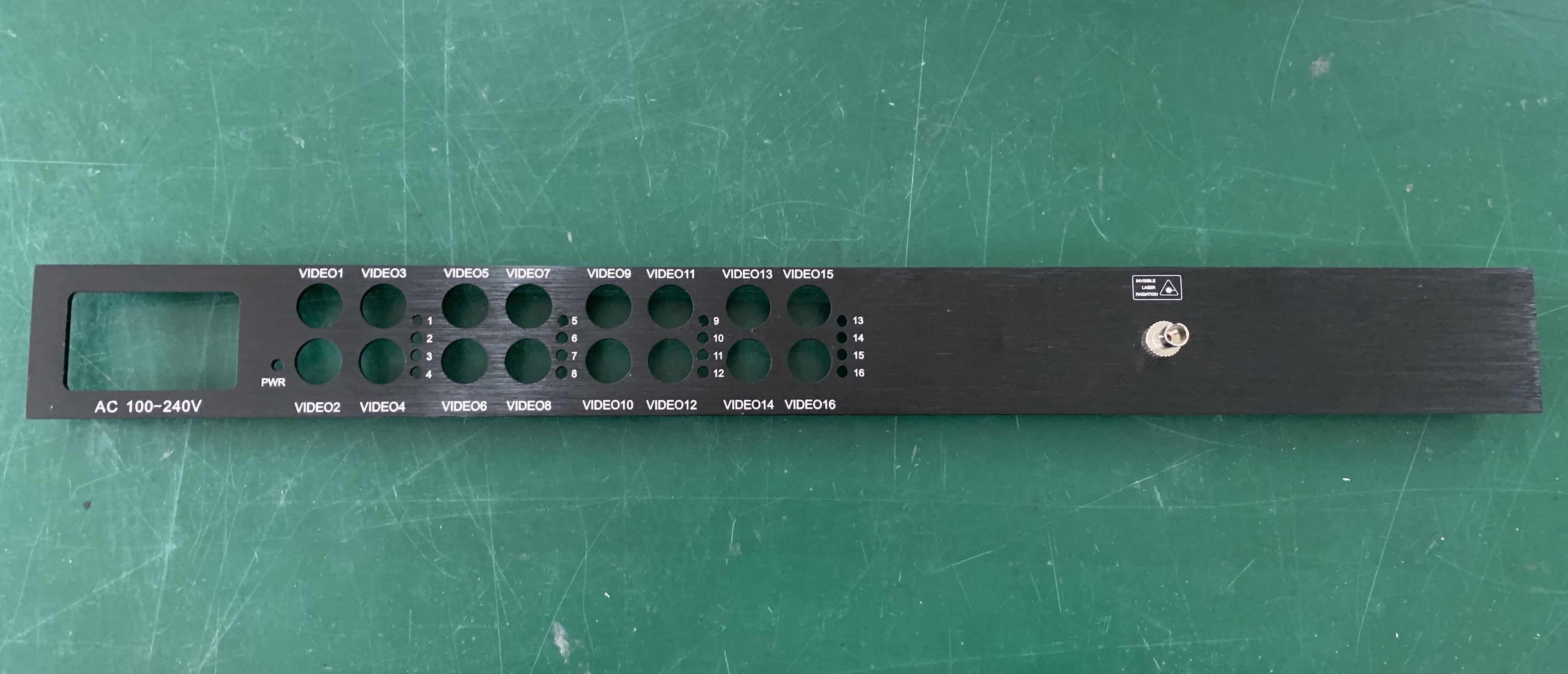

Product Images
|
