| Categories | Video Digital Optical Converter |
|---|---|
| Brand Name: | Olycom |
| Model Number: | OM615-HDSDIWT/R |
| Certification: | CE RoHS FCC |
| Place of Origin: | Shenzhen, China |
| MOQ: | 1 pair |
| Price: | Negotiable |
| Payment Terms: | T/T, Paypal |
| Supply Ability: | 1000 pairs/month |
| Delivery Time: | 4~7 working days |
| Packaging Details: | 1 pair in a box, 0.7kg(G.W) |
| Product Name: | SDI Video Media Converter |
| Speed: | 1.485 Gbps |
| Connector: | SC/FC/ST |
| Wavelength: | 1310nm/1550nm |
| Company Info. |
| Shenzhen Olycom Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
OLYCOM OM615-HDSDIWT/R sdi to fiber optic converter offers long-range transmission up to 40km, this fiber optic video transmitter automatically recognizes and transmits SDI, HD-SDI signals and is fully compliant with SMPTE 259M, 292M, 424M and ITU digital video standards.
| Optical | |
| Wavelength | 1310nm/1550nm |
| Fiber Type and Distance | Multimode (50/125um)5Km, (62.5/125um) 2Km Single mode (9/125um) 20Km / 40Km |
| Transmitting Power | -5dBm to -10dBm |
| Receiving Sensitivity | -26dBm to -30dBm |
| Return Loss | > 14dB |
| Jitter | < 0.2UI |
| Interface | LC |
| Video | |
| Signal type | HD-SDI, SDI digital video signals |
| Gain | Unity |
| Resolution | 8 or 10 bits, automatic |
| Data rates | 270 Mbps, 1.485 Gbps |
| Operation standards | SMPTE 259M-C, SMPTE 292M, SMPTE 424M, ITU-R BT.601, ITU-R BT.1120 |
| Auto data rate lock | Yes |
| Video Input - Transmitter | |
| Number/signal type | 2 single link SDI, HD-SDI digital component video 1 for Tx, 1 for local preview |
| Interface | 2 female BNC |
| Impedance | 750ohms |
| Nominal level | 0.8 Vp-p |
| Minimum/maximum levels | 0.5 V to 1.0 Vp-p |
| Return loss | ≥15 dB @ 5 MHz to 1.5 GHz, ≥10 dB @ 1.5 GHz to 3.0 GHz |
| Input cable equalization | Automatic for up to -30 dB of cable loss |
| Video Output - Receiver | |
| Number/signal type | 2 single link SDI, HD-SDI digital component video 1 for Rx, 1 for backup / share |
| Interface | 2 female BNC |
| Impedance | 750ohms |
| Re-clocking | Automatic for 270 Mbps, 1.485 Gbps or bypassed for unrecognized rates |
| Nominal level | 0.8 Vp-p |
| Minimum/maximum levels | 0.5 V to 1.0 Vp-p |
| Return loss | <-25 dB @ 100 MHz |
| Electrical. Environmental. Mechanical | |
| Voltage | DC12V1A |
| Power Consumption | 12W |
| Operating Temperature | -35℃～＋75℃ |
| Storage Temperature | -40℃～85℃ |
| Humidity | 5～95% non-condensing |
| Dimension | 117 mm L x 80 mm W x 22 mm |
| Weight | 0.35KG per piece |
| EMI/RFI | FCC Part 15 Class A, EU EMC indication |
| MTBF | >100000 hours |
Application
This video optical converter transmitter favored in government, military, and medical environments for use in digital signage, broadcast, staging, and HD CCTV applications.
Ordering Options
| OM615-HDSDIWT/R-LC20 | HD-SDI Fiber Optic Video transmitter and receiver, for SDI/HD-SDI video and embedded signals, with HD video SFP, single mode, LC connector, 20Km |
OM615-HDSDIWT/R-LC40 | HD-SDI Fiber Optic Video transmitter and receiver, for SDI/HD-SDI video and embedded signals, with HD video SFP, single mode, LC connector, 40Km |

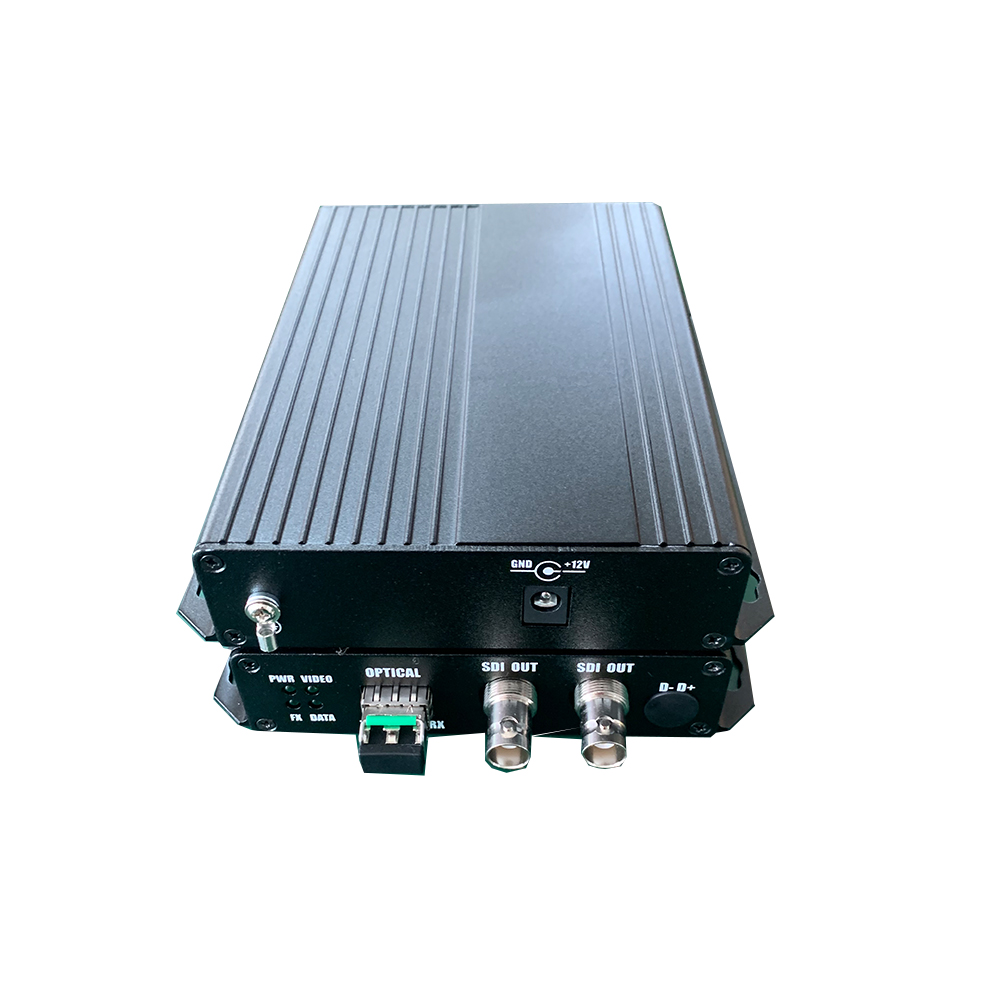

Product Photos
|
