Analog Video Data Audio Contact Closure Fiber Optical Converter
Model Name: OM610-1V↑1D↑↓1A ↑↓1K↑↓1EWT/R
We support your model name
Also referred to as fiber converters, media converters, optical video converters, this fiber optical video transmitter and receiver provide below functions and thus are favored in government, military, and medical environment projects and tenders.
Specification
| Optical | |
| Wavelength | 1310nm/1550nm |
| Output Power | -8~3dBm |
| Optic Fiber | Single mode (9/125um) 20Km to 80Km Multimode (50/125um) 1Km, ( 62.5/125um) 500m |
| Receiving Sensitivity | -30dBm |
| Interface | FC/ST/SC |
| Video | |
| Bandwidth | 8MHZ |
| Compatible Systems | NTSC/PAL/SECAM |
| Impedance/Voltage | BNC 75Ω (unbalanced) / 2.0Vp-p |
| Differential Gain | < ±1% |
| Differential Phase | < ±1 |
| S/N ratio | >60dB(weighting)(8 bit) |
| Interface | BNC |
| Data | |
| Data Protocol | RS232, RS422, Manchester, BIPHASE data |
| Bandwidth | 0~300kbps |
| Error rate | 10-9 |
| Interface | Phoenix terminal |
| Audio | |
| Impedance / Voltage | 600ohm(unbalanced) / 2.0Vp-p |
| Frequency Response | 10~20kHz |
| Total Harmonic Distortion | <0.05% |
| Differential Phase | < ±1 |
| S/N ratio | >95dB(weighting) |
| Interface | Phoenix terminal |
| Sample Rate | 48k Hz |
| Resolution | 16 bits |
| Contact Closure | |
| Signal Input | Alarm, Binary input, support TTL RS-232/422/485 or passive switch button |
| Signal Output | Arbitrary alarm, Binary output, support TTL RS-232/422/485 or relay output |
| Interface | Phoenix terminal |
| Ethernet | |
| Work Mode | Full duplex / half duplex, autosensing |
| Network Speed | 10/100Mbps, autosensing |
| Interface | RJ45 |
| Electrical. Environmental. Mechanical | |
| Operating Voltage | Standalone:220VAC to 5V/12VDC, Rack: dual 220V/-48V AC Card: powered by chassis |
| Operating Temperature | -35℃～+75℃ |
| Storage Temperature | -45℃～+85℃ |
| Humidity | 0~95% non-condensing |
| Dimension And Weight | Standalone and card: depends on different configurations Chassis: 19”3U |
Application
Ordering Details
Olycom OM610 series of optical transmitter and receiver offer a wide selection of configurations, ranging from a simple setup with a single channel of a specific type of signal to sophisticated solutions with many channels of different signals (video, audio, data, telephone, alarm, and Ethernet).
The flexible configurations are open to customization and ODM to cater various needs.
| OM610-1V↑1D↓1P1E WT/R | 1ch video Tx + 1ch RS485 data Rx + 1ch 10/100M Ethernet + 1 Telephone. |
| OM610-1V↑2D↓2A↑1E WT/R | 1ch video Tx + 2ch RS485 data Rx + 2ch audio Tx + 1ch 10/100M Ethernet |
| OM610-1V↑2D↓2A↑2K↑WT/R | 1ch video Tx + 2ch RS485 data Rx + 2ch audio Tx + 1ch Contact Closure Tx |
| OM610-2P1EWT/R | 2ch Telephone + 1ch 10/100M Ethernet |
| OM610-2V↑1D↓1P1E WT/R | 2ch video Tx + 1ch RS485 data Rx + 1ch 10/100M Ethernet + 1 Telephone. |
| OM610-2V↑2D↓2A↑1E WT/R | 2ch video Tx + 2ch RS485 data Rx + 2ch audio Tx + 1ch 10/100M Ethernet |
| OM610-4EWT/R | 4ch 10/100M Ethernet |
| OM610-4P2D↓WT/R | 4ch Telephone+ 2ch RS485 data Rx |
| OM610-4V↑1D↓4E WT/R | 4ch video Tx + 1ch RS485 data Rx + 4ch 10/100M Ethernet |
| OM610-4V↑1D↓4PWT/R | 4ch video Tx + 1ch RS485 data Rx + 4ch Telephone |
| OM610-4V↑12D↓WT/R | 4ch video Tx + 12ch RS485 data Rx |
| OM610-2D↓8PWT/R | 2ch RS485 data Rx + 8ch Telephone |
| OM610-20D↓WT/R | 20ch RS485 data Rx |
| Item Number Code | |
| OM600 | OM600-Video Optical Transmitter / Receiver, 610-desk-top standalone, 620-card style, 613-mini series, 615-HD series |
| V | Video |
| A | Audio |
| D | Data |
| K | Alarm (I/O, contact closure) |
| P | Telephone |
| E | Ethernet |
| M,W | M-Multi-mode, W-Single mode |
| S,U | S-1310nm, U-1550nm |
| T,R | T -Transmitter, R-Receiver |
| FC,ST,SC,LC | Fiber connector type |
| ↑,↓, ↑↓ | ↑- forward (from TX to RX), ↓ - reverse (from RX to TX), ↑↓- bidirectional |
| 1,2,3,… | Digits ahead of signal-quantity of required channel |
| 05, 20, 40… | Digits next to fiber connector-working distance |

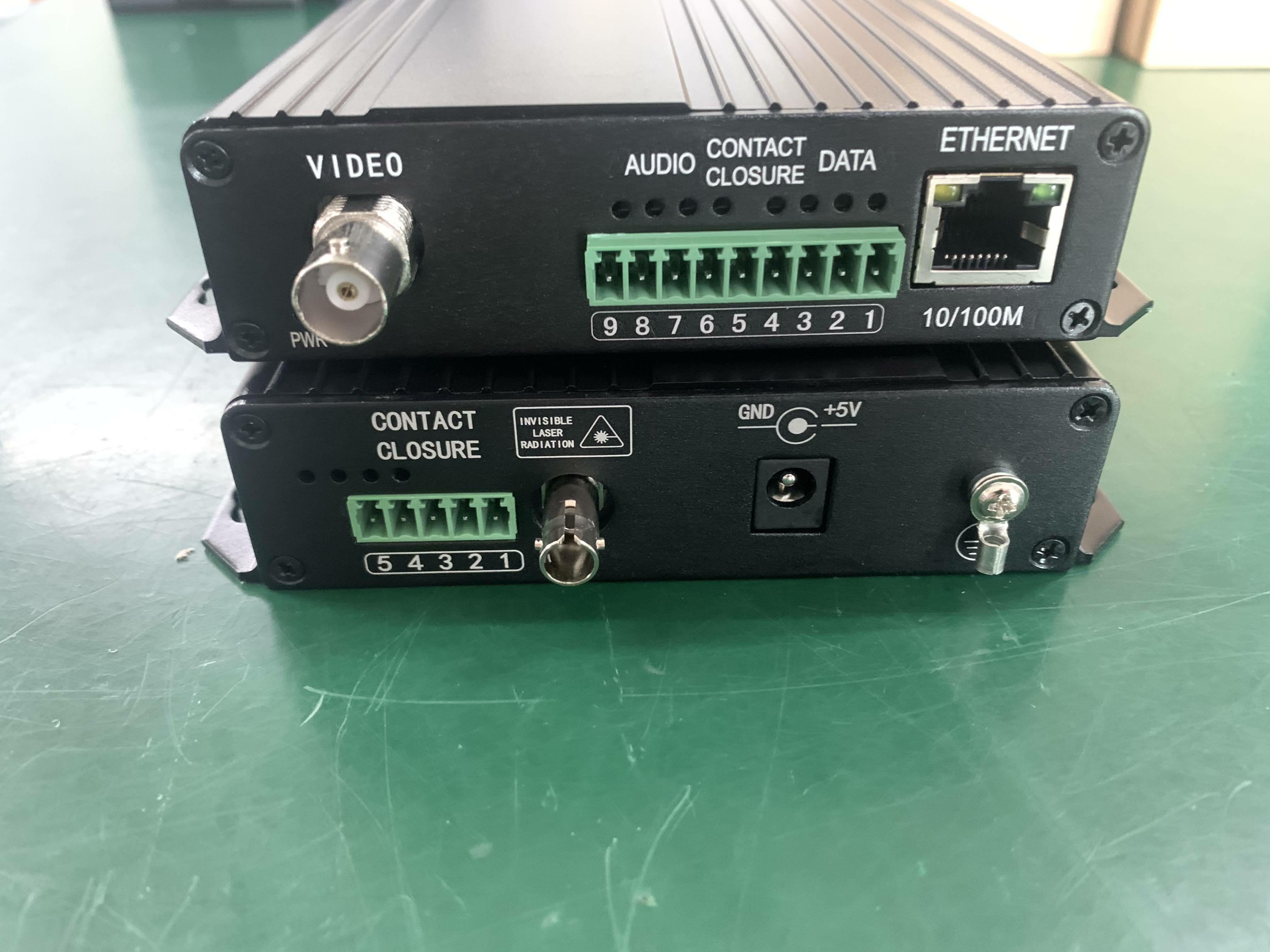

Product Photos
|
