HBGB 32 X 4.5mm Stainless Steel Floor Serrated Metal Grating ISO14001

32 X 4.5 Mm Serrated Type Bar Galvanized Platform Floor Steel Grating

Walkway steel grating introduction:

Steel plate by the bearing flat steel bar in accordance with certain spacing and cross arrangement,the welded info a metal products with square lattice in the middle;a steel lattice plate is mainly used to make steel structure platform board,ditch cover plate,steel ladder step plate,building ceiling etc.Lattice steel plate applied to alloy building materials,power station,boiler,shipbuilding,petrochemical,chemical and general industrial buildings, municipal construction and other industrial, with light ventilation,skid resistance,strong bearing capacity.beautiful and durable,easy to clean,convenient installation and other advantages.

Galvanized serrated bar grating details:

serrated hot dip galvanized grating
specification:253/30/100
Twisted cross bar:6*6mm .pitch: 100mm
size:3m*1m

Galvanized serrated bar grating size:

1. Size: 1000mm L x 660mm W/pc, closed ends
2. Flat bar: 40x6mm, 25mm spacing from center to center
3. Round bar (2nos.): Ø20mm slot through flat bar, fully welding at the ending of

the flat bar;

4. Finish: Hot dipped galvanized.

Galvanized serrated bar grating surface specifications​:

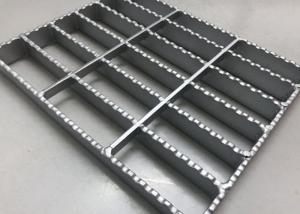

Product pictures:

Applications of galvanized serrated steel bar grating:

* Anti slip bridge decking
* Bridge walkway
* Drainage systems
* Fire truck platforms
* Mass transit platforms
* Marine and ship decks
* Mezzanines
* Non-slip walkways
* Non-skid pit covers
* Slip resistant platforms
* General Industries
* Truck platforms
* Vault covers
* Wet Decks
* Wastewater treatment plant grating
* Stair treads

We are a major manufacturer of wire mesh and wire fabric products in Hebei, China more than 20years. Our metal wire mesh products have been exported to Europe, the USA, the Middle East, Southeast Asia, Africa and several other parts of the world.

Concentrating on putting continued effort into maintaining product standards, our manufacture and sales quality management systems have been certified as ISO9001:2008 compliant by ISOQAR.

Operating to the principle of "Product quality is our life", we sincerely hope to have the opportunity to cooperate with you.
