| Categories | Galvanized Serrated Bar Grating |
|---|---|
| Brand Name: | HBGB |
| Model Number: | GB-006 |
| Certification: | ISO 9001 |
| Place of Origin: | China |
| MOQ: | 100pcs |
| Price: | negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 2000 pcs per day |
| Delivery Time: | 15-25 days |
| Packaging Details: | Steel Pallet or customized |
| Product namee: | Steel grating |
| Grating type: | Serrated type |
| Surface treatment: | galvanized |
| Cross Bar Size: | 6 mm, 8 mm, 10 mm |
| Usage: | Anti-Slip Places |
| Sample: | available |
| Features: | Highly Anti-corrosion |
| Bearing bar: | 25x2,25x3,25x4,25x4.5,25x5,30x3,30x4,30x4.5,30x5,32x5,40x5,50x5 mm etc |
| Usual pitch: | 41mm x100mm & 30mm x100mm |
| Special pitch: | 41mmx50mm, 30mmx 50mm, 33mmx 100mm, 33mmx50mm,33mmx38mm, 34mm x 100mm, 34mmx50mm,34mm x 38mm |
Steel Grating made by welding with flat steel and cross/round bars with certain distances. Our Steel Grating enjoy the feature of high strength, light structure, high bearing, convenience for loading and other properties. The hot dipped zinc coating gives the product excellent anti-corrosion.
Material | Q235,SS 304,SS316 |
Bearing type | Flat bar,serrated bar |
Bearing bar | 30mm high x 3mm thickness or 32mm high x 5mm thickness 30mm,40mm,60mm pitch |
Cross bar | 6x6mm; 50mm,100mm pitch |
Panel size | 1x6m,or as your request |
Edge | with bound end or without |
Untreated, Painting or Hot Dipped Galvanizing
| Product Name | Serrated Steel Grating |
| Material | Low Carbon Steel/Stainless Steel |
| Grade | CN:Q235,Q345, US:A36,UK:43A |
| Standard | CN: YB/T4001-1998, US: ANSI/NAAMM, UK: BS4592-1987, AUS1657-1988, JJS |
| Certification | CE, GOST, ISO9001, ISO14001, HSE |
| Bearing bar size | 20X5, 25X3, 25X4, 25X5, 30X3, 30X4, 30X5, 32X3, 32X5, 40X5, 50X4... 75X8, 100X8mm, etc |
| Bearing bar pitch | 20,25,30,32.5,34.3,40,50,60,62,65mm |
| Bearing bar type | Plain, Serrated (tooth-like), I bar (I section), Serrated-I |
| Cross bar size | 5X5, 6X6, 8X8mm (twisted bar)/5, 6, 8mm ( round bar) |
| Cross bar pitch | 40, 50, 60, 65, 76, 100, 101.6, 120, 130mm, etc. |
| Panel size | 3x20ft,3x24ft,3x30ft,5800x1000,6096x1000,7315x1000, as request |
| Surface treatment | Untreated, hot DIP galvanized, cold DIP galvanized, painted, powder coated, pickling, electrolytic polishing, or as customers’ requirement. |
| Galvanization Standard | CN: GB/T13912, US: ASTM (A123), UK: BS729 |
| Color | Silver/Black |
| Application | petroleum and chemical, port, power, transportation, papermaking, medicine, steel and iron, food, municipality, real estate, manufacturing |

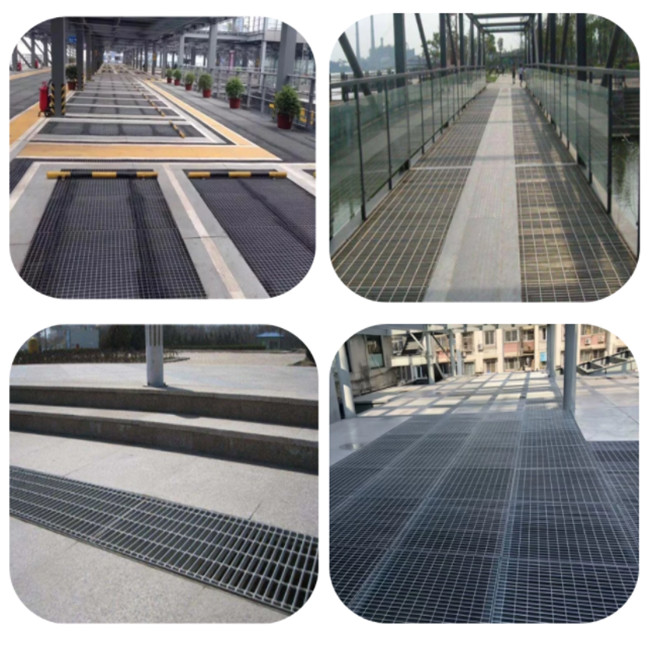

* Anti slip bridge decking
* Bridge walkway
* Drainage systems
* Fire truck platforms
* Mass transit platforms
* Marine and ship decks
* Mezzanines
* Non-slip walkways
* Non-skid pit covers
* Slip resistant platforms
* General Industries
* Truck platforms
* Vault covers
* Wet Decks
* Wastewater treatment plant grating
* Stair treads
|
