1/4''X1/8'' Heavy Duty Steel Galvanized Serrated Bar Grating Non Skid PVC Coated

Heavy Duty Serrated Steel Grating for Sliding Resistance Platform

Serrated steel grating introduction:

Steel grating is a kind of widely used grid products. They are used in various industrial fields and has the strongest resistance to surface impact.

Galvanized serrated bar steel grating details:

Material :Mild steel & Low carbon steel, etc.
Surface treatment: hot-dipped galvanized, electric galvanized.
1) Bearing bar shapes: plain or serrated or I bar type.
2) Bearing Bar Pitch (center to center): 30, 40, 60mm are recommended,but we can also do it under customer's request.
3) Bearing Bar (Load Bar) Specifications (mm):The specification(thickness of bearing bar)of plain type and serrated type is 20 x 3 to 100 x 10;
4) Cross bar pitch(mm) :38, 40, 50, 60, 76, 80, 100, 110, 120 etc.

Galvanized serrated bar steel grating size:

1. Size: 1000mm L x 660mm W/pc, closed ends
2. Flat bar: 40x6mm, 25mm spacing from center to center
3. Round bar (2nos.): Ø20mm slot through flat bar, fully welding at the ending of

the flat bar;

4. Finish: Hot dipped galvanized.

Galvanized serrated bar grating surface specifications​:

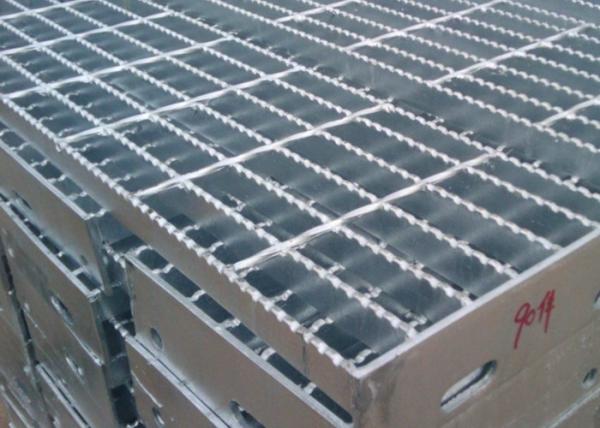

Product pictures:

Applications of galvanized serrated steel bar grating:

* Anti slip bridge decking
* Bridge walkway
* Drainage systems
* Fire truck platforms
* Mass transit platforms
* Marine and ship decks
* Mezzanines
* Non-slip walkways
* Non-skid pit covers
* Slip resistant platforms
* General Industries
* Truck platforms
* Vault covers
* Wet Decks
* Wastewater treatment plant grating
* Stair treads

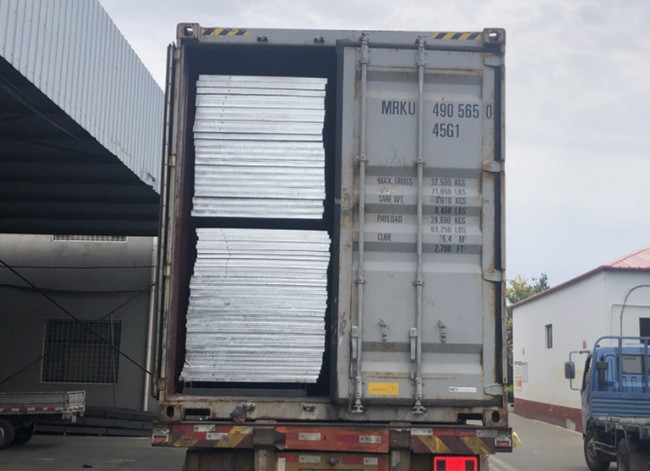

Loading:
