ROHS CE 21dBi Long Range WiFi Antenna 802.11a 45 Degree Dual Slant Antenna

4.8-6.5GHz 21dBi 45 Degree WiFi WLAN MIMO Sector Antenna

This a 4-Port 45 Degree Dual Slant Polarized +45°/-45° Sector Antenna that features a versatile dual radio mounting system for attaching two Ubiquiti Networks RocketM5 or Rocket Prism 5AC, Mimosa C5c, Cambium ePMP™ 1000 or TP-Link WBS-510 directly to the antenna.

This antenna provides 4 separate ports, two +45° polarized and two -45° polarized, and all ports support 4.8 GHz - 6.5 GHz operation.

Features

• Expanded Coverage: 4800 MHz to 6500 MHz
• 4 ports, Suits for Dual Radio like RocketM5, Mimosa C5c
• Cross Polarized, ±45° Polarization (Polarization Diversity)
• 45 Degree Beamwidth
• All-Weather Outdoor Operation
• Heavy Duty Tilt Mounting Brackets
• MIMO Applications
• 5 GHz 802.11a
• Wi-Fi Hotspots
• WISP Base Station
• WiMAX

Electrical Specifications

Mechanical Specifications

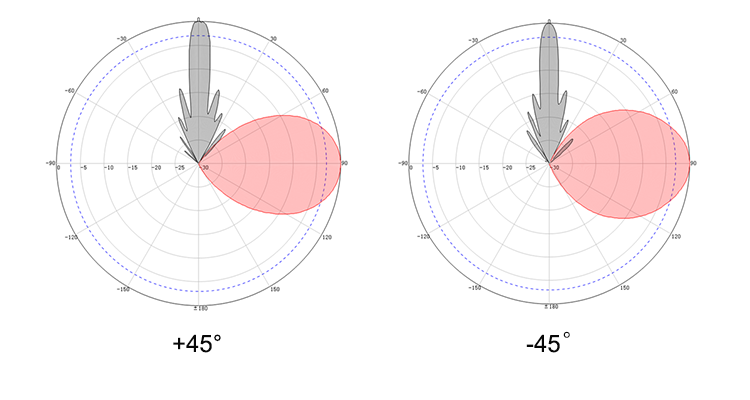

Radiation Patterns

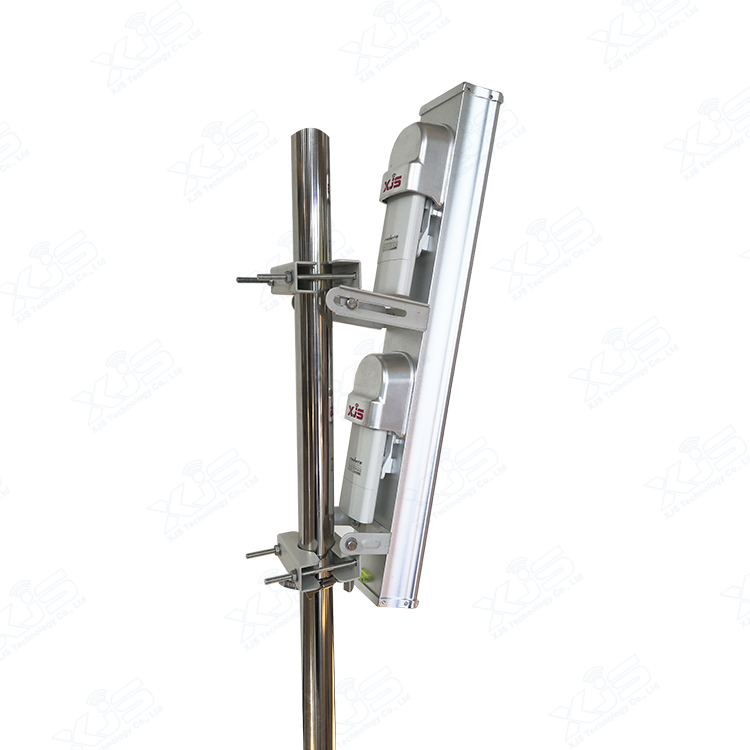

Designed for use with Dual Radios

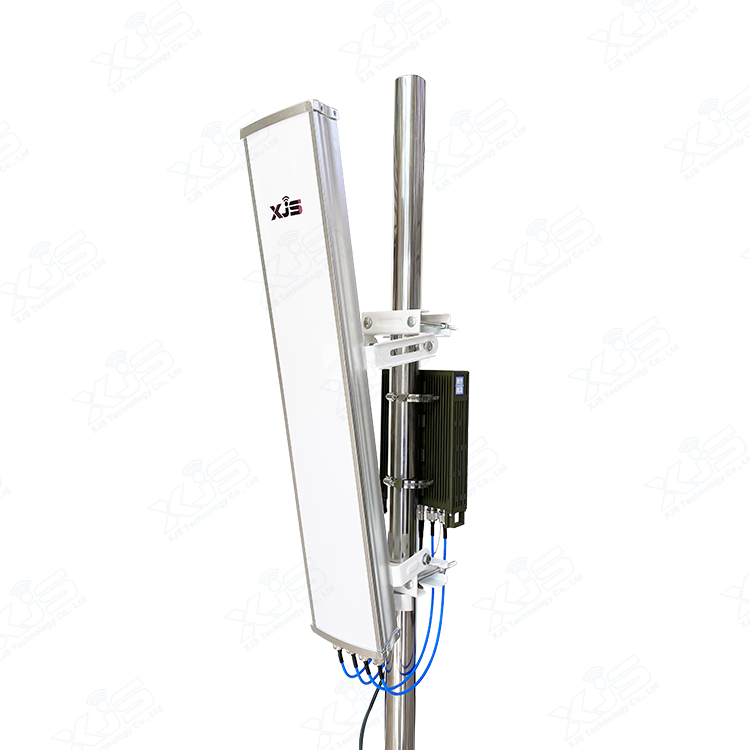

This antenna includes mounting brackets for attaching two AP radios to the rear of the antenna, minimizing the required tower space. The kit also includes four low loss N Male to RP-SMA Male cables for connecting the radios to the antenna.

Compact High Performance MIMO Antenna for Multiple WiFi Radios

One or more WiFi radios can be connected to this versatile antenna simultaneously. The unique design of this antenna offers high performance MIMO operation in a compact cost-effective package, making it an ideal choice for rapid deployment communications systems and emergency WiFi hotspots.
