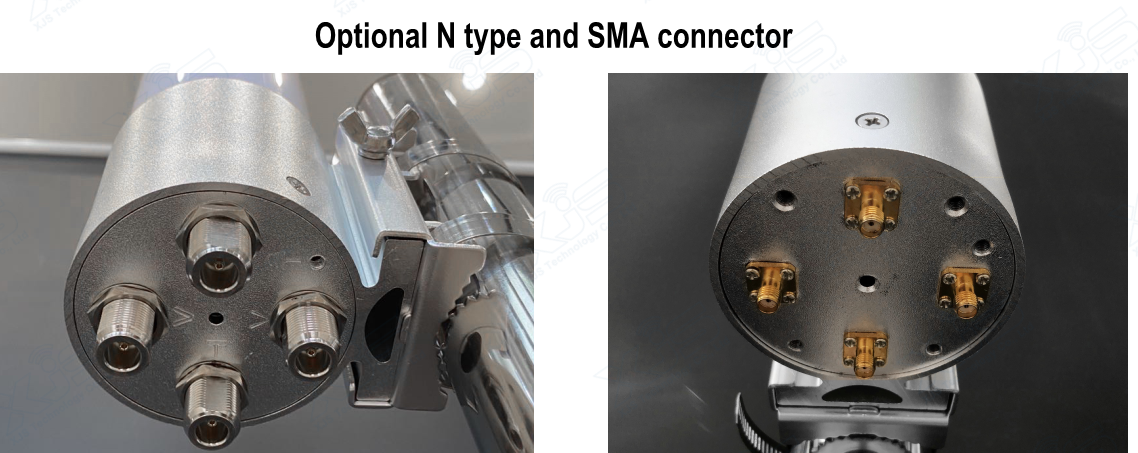

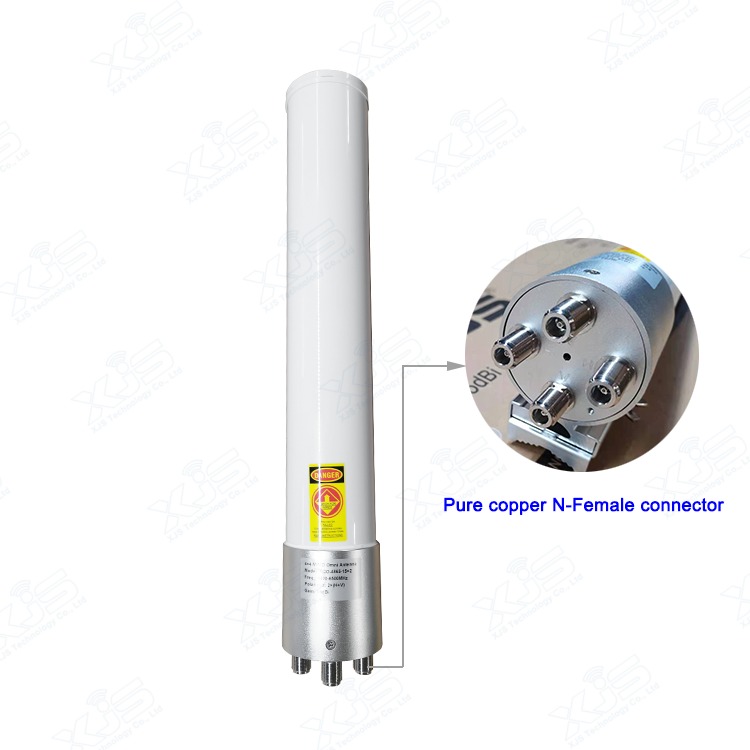

360 Degree 5GHz 15dBi WiFi 4×4 MIMO Antenna N Type SMA Connector Antenna

5 GHz 15 dBi WiFi 4×4 MIMO Omni antenna

This Omni antenna’s unique design incorporates quad-180º overlapping antenna polarizations, boosts throughput by providing balanced dual-stream coverage over 360º of azimuth. it operates over a wide frequency range, from 4.9 to 6.4 GHz without sacrificing performance, supporting licensed public safety bands and other expanded frequencies

Applications

• 5.1-5.8 GHz Outdoor Wireless LAN systems
• Supports 1x2 and 2x2 MIMO AP/Routers
• IEEE 802.11a/n applications
• WiMax, WISP, WiFi, Communication

Features

• MIMO - Multiple-Input and Multiple-Output
• UV-resistant radome for all-weather operation

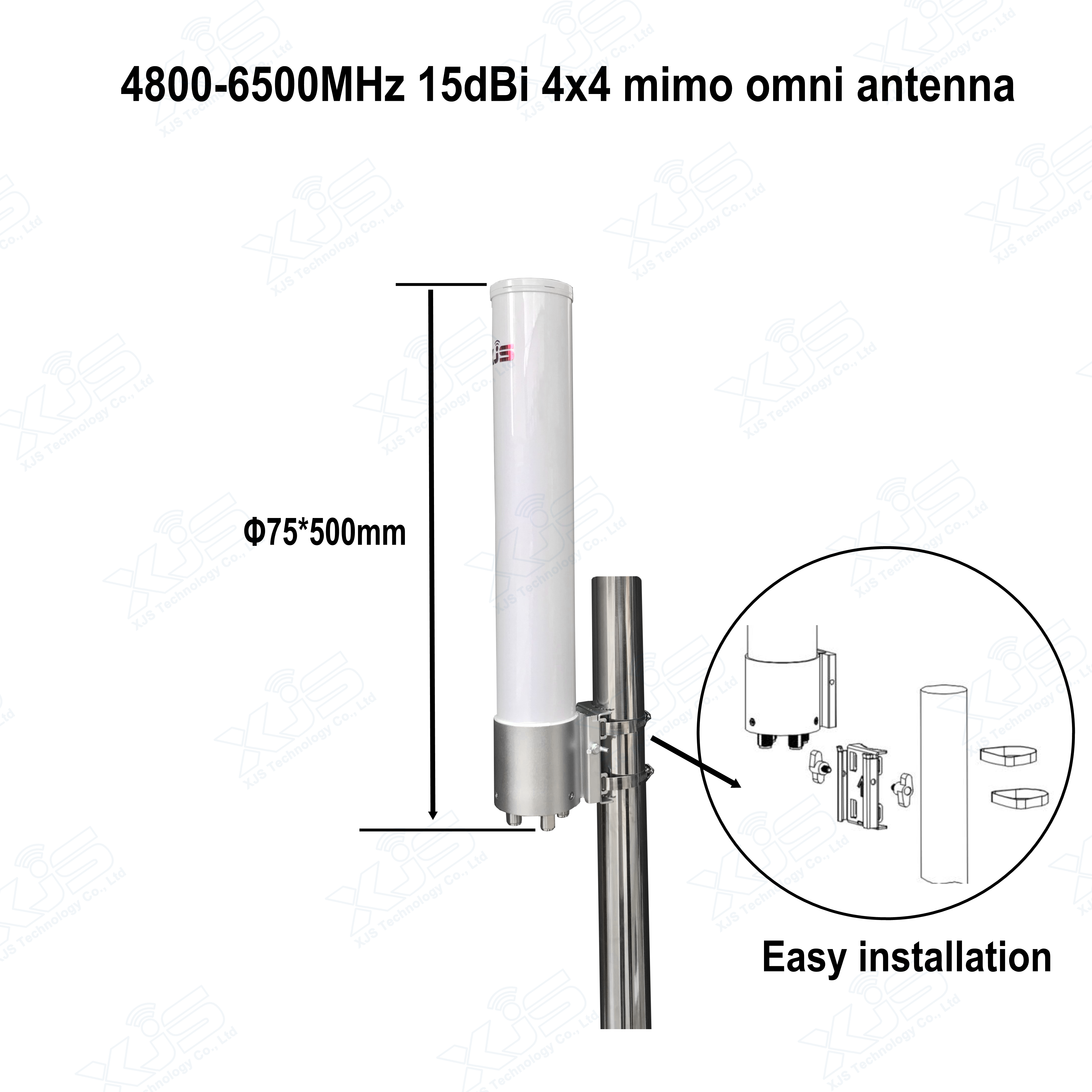

• Includes mast mounting hardware

Electrical Specifications

Mechanical Specifications

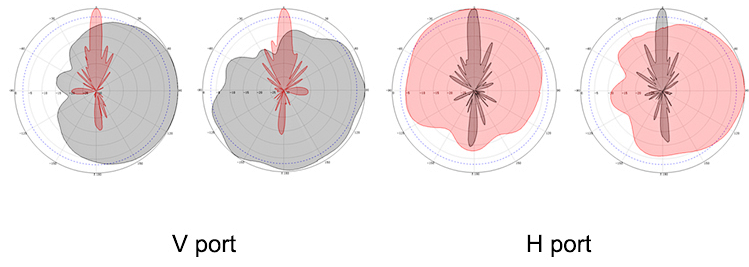

RF Antenna Patterns

Packing
