2400MHz To 2500MHz UNII ISM Long Range WiFi Antenna 10DBi

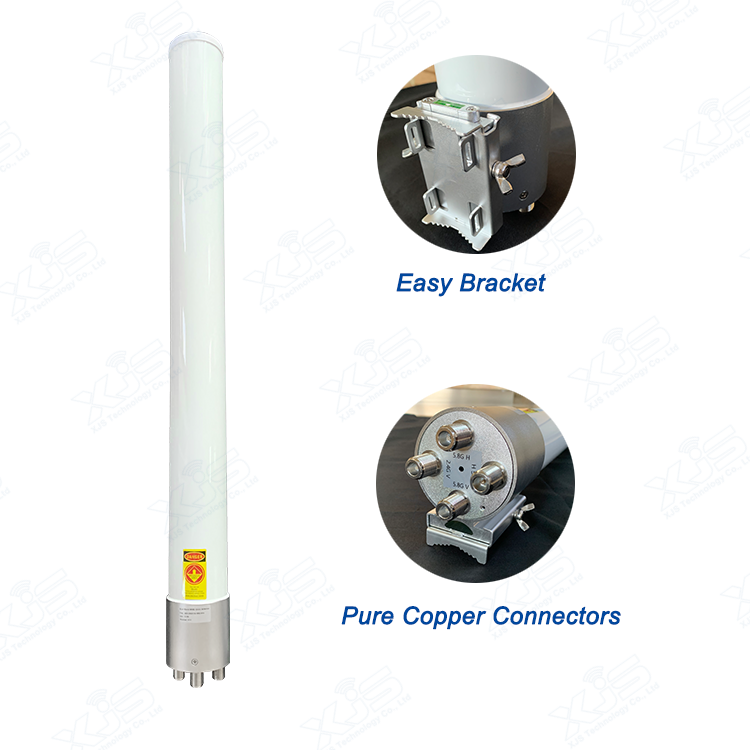

Omni Directional 2.4/5.8 GHz Dual Band 10 DBi WiFi Dual Polarized Mimo Omni Antenna

The TQO-2458-10 is a professional high gain dual band omnidirectional base station Wi-Fi antenna designed and optimized for the 2.4 and 5.8GHz frequency. This antenna is ideally suited for multipoint applications where long range and wide coverage is desired.

The TQO-2458-10 construction features a heavy-duty fiberglass radome for durability and aesthetics. Designed to operate in the harshest of environments, the TQO-2458-10 far exceeds other omnidirectional antennas.

Applications

• 5.8 GHz UNII and ISM applications
• 2.4/5.8 GHz IEEE 802.11a/b/g and 802.11ac applications
• 2.4GHz Wi-Fi applications
• Point-to-multipoint applications
• Wireless video system

Features

• ​Integral N-Female connector
• Twin heavy duty steel mounting brackets and u-bolts
• All weather operation
• Fiberglass radome
• Heavy duty industrial grade design

Electrical Specifications

Mechanical Specifications

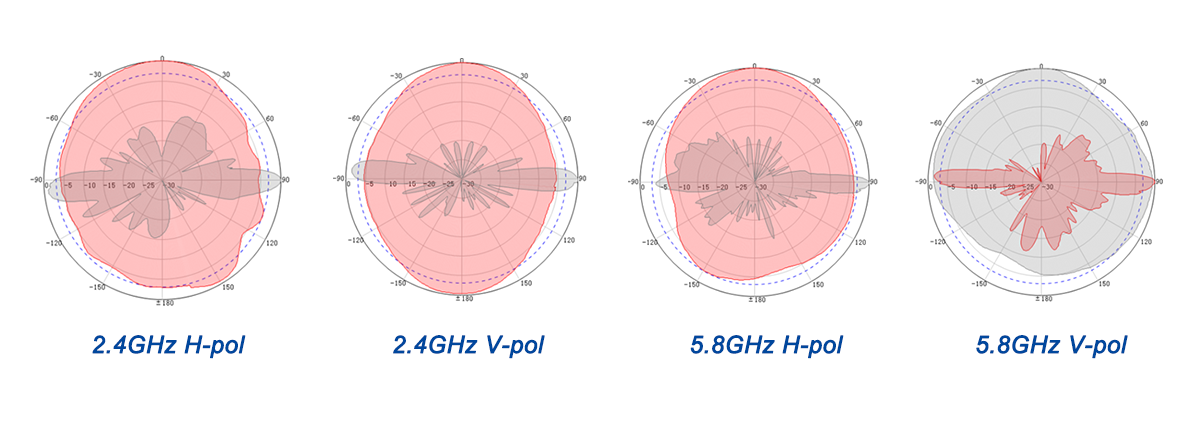

Radiation Patterns

RF Antenna Patterns

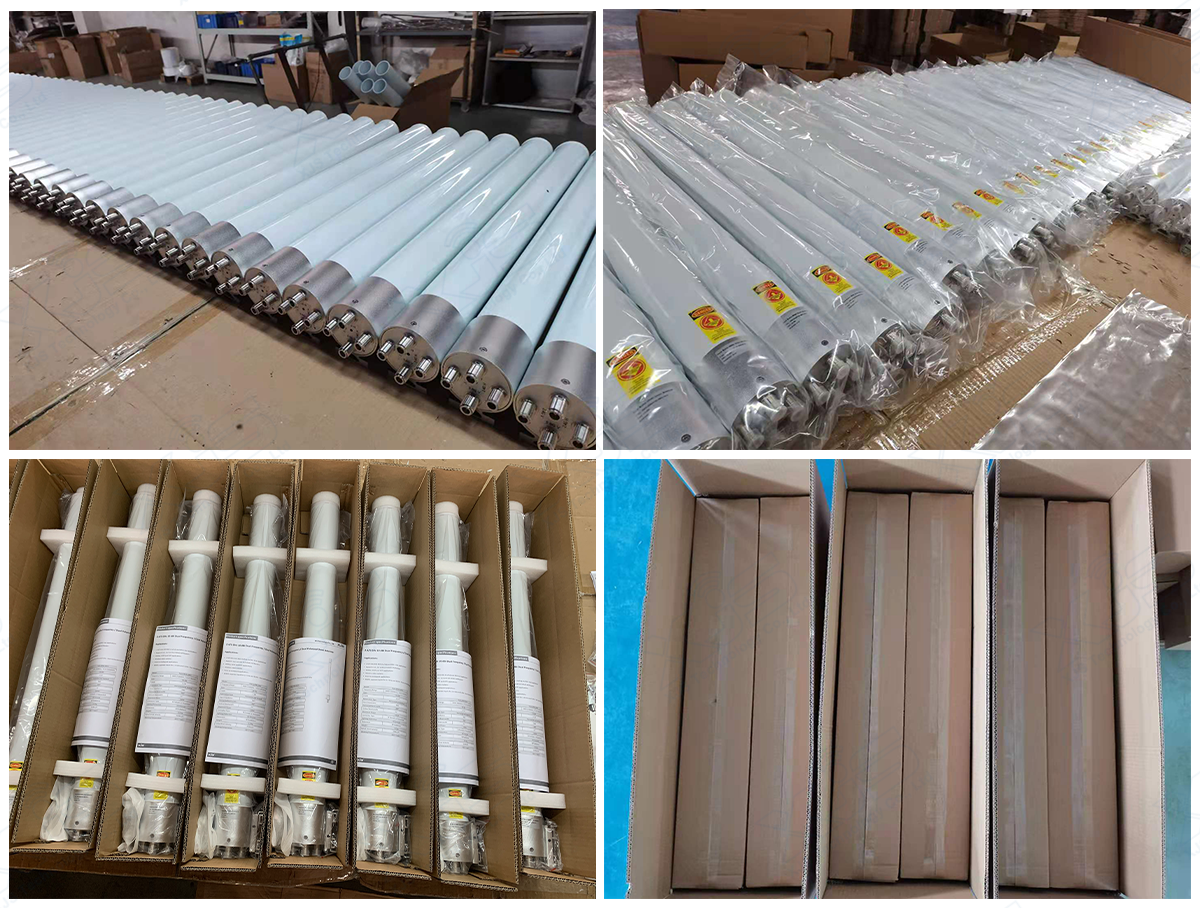

Antenna Packing
