Clamp Forklift Double Pallet Handler Attachment 915x80x45mm Fork

Categories Forklift Clamp Attachment
Brand Name: Bonafe
Place of Origin: China
MOQ: 1 Units
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 Unit/Units per Year
Delivery Time: 5-8 work days
product category:: Forklift attachment single double pallet handlers
Place of Origin:: China
Material:: Steel
Applicable Industries:: Manufacturing Plant, Hotels, Garment Shops, Building Material Shops
Frame Width:: 1100mm
Weight:: 490kg
Backrest Height:: 1220mm
Vertical Center of Gravity:: 277mm
Horizontal Center of Gravity:: 196mm
Effective Thickness:: 226mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

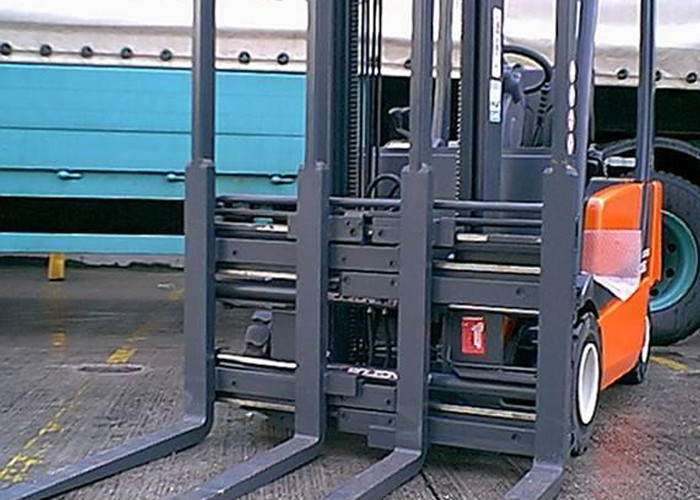

Clamp Forklift Double Pallet Handler Attachment 915x80x45mm Fork


Forklift attachment single double pallet handlers 915*80*45mm fork


FDS25G-A005 Opening Range ITI 330-815mm, Opening Range OTO 660-2035mm, Horizontal Center of Gravity 196mm, Weight 490kg

FDS25G-B005 Opening Range ITI 330-815mm, Opening Range OTO 660-2035mm, Horizontal Center of Gravity 191mm, Weight 488kg



Functions & Applications
Flexible application of single or double pallets handling. Be widely used for handling and stacking operations in food and beverage industry, import and export trade and bulking goods industry. Particularly apply to handle and stack palletized goods in container truck.



Features
* Wide vision and easy to operate.
* Superior arm-slide bearing for extended service life.



Options
* Different fork width and length

* Different mounting class


Parameter

Capacity@
Load Center
(Kg@mm)
Model No.Minimum Truck Carriage Width
(mm)
Frame Width
(mm)
Opening
Range ITI
ITI (mm)
Opening
Range OTO
(mm)
Avg.Pallet SpreadFrork
Set Spread
Fork Size
(mm)
Backrest Height
H
(mm)
Vertical
Center of
Gravity
VCG
(mm)
Weight
(kg)
Effective
Thickness
ET(mm)
Horizontal
Center of
Gravity
HCG(mm)
2500@600FDS25G-A0059141100330-815660-2035508610915*80*451220277490226196
2500@600FDS25G-B0059141100330-815660-2035508610915*80*451220277488221191


Remark:

1. Obtain the actual capacity of the forklift and attachments from the forklift manufacturer

2. Two sets additional oil circuit required on forklift.

3. Sideshiting left 100mm, right 100mm


Other size available on request.


Hydraulic Flow&Pressure

ModelMin.
Hydraulic
Flow(L/min)
Rec.
Hydraulic
Flow(L/min)
Max.
Hydraulic
Flow(L/min)
Min.
Hydraulic
Pressure(Bar)
Max.
Hydraulic
Pressure(Bar)
FDS25G20406035160

Options:

Heighten load backrest

Different mounting class



Applicable Industries

Manufacturing Plant, Hotels, Garment Shops, Building Material Shops



Can be customized according to size
Customized solutions:
Carton Clamp
Block Clamp
Bale Clamp
Roll Clamp
......
all kinds of attachment
