| Categories | Forklift Clamp Attachment |
|---|---|
| Brand Name: | Bonafe |
| Place of Origin: | China |
| MOQ: | 1 Units |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000 Unit/Units per Year |
| Delivery Time: | 5-8 work days |
| product category:: | Forklift Clamp Attachments |
| Place of Origin:: | China |
| Material:: | Steel |
| Applicable Industries:: | Manufacturing Plant, Chemical fiber, Workshop, Port industries |
| Fork Size:: | 50x150x1220mm |
| Weight:: | 880kg |
| Opening Range：: | 640-1950mm |
| Vertical Center of Gravity:: | 270mm |
| Horizontal Center of Gravity:: | 300mm |
| Effective Thickness:: | 345mm |
| Company Info. |
| Bonafe Technology Co., Ltd |
| View Contact Details |
| Product List |

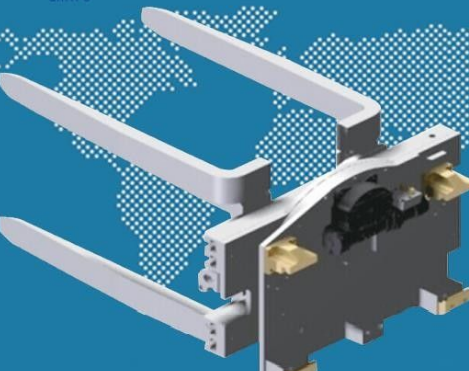

Forklift connecting turntable with 50x150x1220mm forklift fork
Parameter
| Capacity@ Load Center (Kg@mm) | Model No. | Mounting Class | Opening Range (mm) | Fork Size (mm) | Frame Width D(mm) | Fork Spacing (mm) | Vertical Center of Gravity CGV(mm) | Weight (kg) | Effective Thickness ET(mm) | Horizontal Center of Gravity CGH(mm) |
| 2300@600 | TAL30D-006B | III | 640-1950 | 50x150x1220 | 1015 | 635(4fork) | 270 | 880 | 345 | 300 |
| 2300@600 | TAL30D-007B | III | 710-2060 | 50x150x1220 | 1015 | 754(4fork) | 270 | 760 | 345 | 300 |
Product Description
TAL30D-006B Fork Size 50x150x1220mm, Frame Width 1015mm, EffectiveThickness 345mm, Vertical Center of Gravity 270mm
TAL30D-007B Fork Size 50x150x1220mm, Frame Width 1015mm, EffectiveThickness 345mm, Vertical Center of Gravity 270mm
Options
* Fork sizes
* Various mounting classes available
* Custom opening ranges
Remark:
1. Obtain the actual capacity of forklift and accessories from the forklift manufacturer.
2. Two sets of additional oil circuits are required on the forklift.
3. The opening range is the space between the tips of the two arms.
4. The fork size can be customized according to user requirements.
Installation&Option
Hydraulic Flow&Pressure
| Model | Min. Hydraulic Flow(L/min) | Rec. Hydraulic Flow(L/min) | Max. Hydraulic Flow(L/min) | Min. Hydraulic Pressure(Bar) | Max. Hydraulic Pressure(Bar) |
| TAL30D | 20 | 40 | 60 | 35 | 160 |
Rotator Specifications
| Model | Rotator Speed | Rotator Torque |
| TAL30D | 5.2r/min@57L/min | 9000N.m@160Bar |
Applicable Industries
Manufacturing plant, chemical fiber, workshop, port industry
Can be customized according to size
Customized solutions:
1. Carton Clamp
2. Block Clamp
3. Bale Clamp
4. Roll Clamp
......
