Turn A Load 3527lbs Forklift Clamp Attachment Fork Extensions

Categories Forklift Clamp Attachment
Brand Name: Bonafe
Place of Origin: China
MOQ: 1 Units
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 Unit/Units per Year
Delivery Time: 5-8 work days
product category:: Forklift Clamp Attachments
Place of Origin:: China
Material:: Steel
Applicable Industries:: Manufacturing Plant, Chemical fiber, Workshop, Port industries
Fork Size:: 50x125x1200mm
Weight:: 560kg
Opening Range:: 620-1900mm
Vertical Center of Gravity:: 265mm
Horizontal Center of Gravity:: 330mm
Effective Thickness:: 300mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

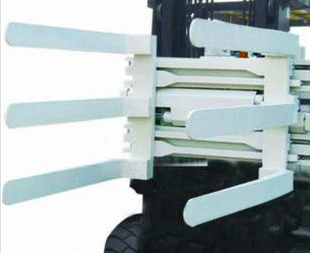

Turn A Load 3527lbs Forklift Clamp Attachment Fork Extensions

1600kg forklift with twister 45x125x1220mm

Parameter

Capacity@
Load Center
(Kg@mm)
Model No.Mounting ClassOpening Range
(mm)
Fork
Size
(mm)
Frame
Width
D(mm)
Fork
Spacing (mm)
Vertical
Center of
Gravity
CGV(mm)
Weight
(kg)
Effective
Thickness
ET(mm)
Horizontal
Center of
Gravity
CGH(mm)
1600@600TAL20D-004AII715-196045x125x1220940850265662295325
1600@600TAL20D-005AII660-190045x125x1220940450265750295325
1600@600TAL20D-006AII555-183050x125x12001040560265750300330
1600@600TAL20D-007AII618-183040x125x1220940635265662290325


Product Description

TAL20D-004A Fork Size 45x125x1220mm, Frame Width 940mm, EffectiveThickness 295mm, Vertical Center of Gravity 265mm

TAL20D-005A Fork Size 45x125x1220mm, Frame Width 940mm, EffectiveThickness 295mm, Vertical Center of Gravity 265mm

TAL20D-006A Fork Size 50x125x1200mm, Frame Width 1040mm, EffectiveThickness 300mm, Vertical Center of Gravity 265mm

TAL20D-007A Fork Size 40x125x1220mm, Frame Width 940mm, EffectiveThickness 290mm, Vertical Center of Gravity 265mm


Options
* fork size
* Various installation categories are available
* User defined range


Remark:
1. Get the actual capacity of the stacker and accessories from the stacker manufacturer.
2. Two sets of additional oil circuits are required on the forklift.
3. The opening area is the space between the tips of the two arms.
4. The fork size can be adjusted as needed.


Installation&Option
Hydraulic Flow&Pressure

ModelMin.
Hydraulic
Flow(L/min)
Rec.
Hydraulic
Flow(L/min)
Max.
Hydraulic
Flow(L/min)
Min.
Hydraulic
Pressure(Bar)
Max.
Hydraulic
Pressure(Bar)
TAL20D20406035160


Rotator Specifications

ModelRotator SpeedRotator Torque
TAL20D5.2r/min@57L/min9000N.m@160Bar



Applicable Industries
Manufacturing plant, chemical fibre, workshop, port industry




Can be customized according to size
Customized solutions:
1. Carton Clamp
2. Block Clamp
3. Bale Clamp
4. Roll Clamp
......
all kinds of attachment
