1x2 Mechanical OSW Fiber Optic Switch
Introduction
Olycom's 1x2 Mechanical Fiber Opitc switch is used to turn on and turn off optical signal. The 1x2 Mechanical Fiber Optic Switch is based on Advanced Optoelectronic Integrated Technology. With the development of optical communication, Optical Switch device is the key to a new generation of all-optical network in near future.
Feature
· Low Insertion Loss
· Wide Wavelength Range
· Low Crosstalk
· High Stability, High Reliability
· Epoxy-free on Optical Path
· Latching and Non-latching
Application
1. R&D in Laboratory
2. System Monitoring
3. OADM
4. MAN (Metropolitan Area Network)
| Parameters | Unit | OSW1×2 | |
| Wavelength Range | nm | 850±40 / 1300±40 | 1260 ~ 1650 |
| Test Wavelength | nm | 850 / 1300 | 1310 / 1550 |
| Insertion Loss 1, 2 | dB | Typ: 0.6 Max: 1.0 | Typ: 0.6 Max: 1.0 |
| Return Loss 1, 2 | dB | MM ≥ 30 SM ≥ 50 | |
| Crosstalk 1 | dB | MM ≥ 35 SM ≥ 55 | |
| PDL | dB | ≤0.05 | |
| WDL | dB | ≤0.25 | |
| Repeatability | dB | ≤±0.02 | |
| Operating Voltage | V | 3.0 or 5.0 | |
| Durability | Cycles | ≥ 10 Million | |
| Switching Time | ms | Typ: 3 Max: 8 | |
| Optical Power | mW | ≤500 | |
| Operating Temperature | ℃ | -10 ~ +70 | |
| Storage Temperature | ℃ | -40 ~ +85 | |
| Relative Humidity | % | 5 ~ 95 | |
| Weight | g | 14 | |
| Dimension | mm | (L)27.0×(W)12.0×(H)8.2 ±0.2 | |
Note: 1 Within operating temperature and SOP. 2 Excluding Connectors. | |||
Optical Route
| State A | State B |
|  |

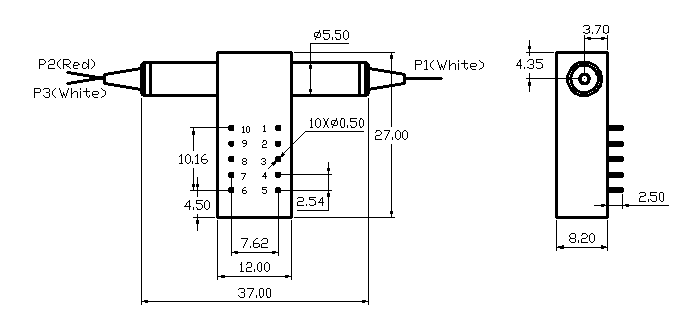

Dimension
Pin Configurations
| Type | State | Optical Route | Electric Drive | Status Sensor | ||||||
| 1×2 | Pin 1 | Pin 5 | Pin 6 | Pin 10 | Pin 2-3 | Pin 3-4 | Pin 7-8 | Pin 8-9 | ||
| Latching | A | P1-P2 | -- | -- | GND | V+ | Close | Open | Open | Close |
| B | P1-P3 | V+ | GND | -- | -- | Open | Close | Close | Open | |
| Non-latching | A | P1-P2 | -- | -- | -- | -- | Close | Open | Open | Close |
| B | P1-P3 | V+ | -- | -- | GND | Open | Close | Close | Open | |
Electrical Specification
| Specifications | Voltage | Current | Resistance |
| 5V latching | 4.5~5.5 V | 36~44 mA | 125 Ω |
| 5V non-latching | 4.5~5.5 V | 26~32 mA | 175 Ω |
| 3V latching | 2.7~3.3 V | 54~66 mA | 50 Ω |
| 3V non-latching | 2.7~3.3 V | 39~47 mA | 70 Ω |
|
