| Categories | Fiber Optical Switch |
|---|---|
| Brand Name: | Olycom |
| Model Number: | OM-FBS-22LC1 |
| Certification: | CE RoHS FCC ISO9001 |
| Place of Origin: | Guangdong, China |
| MOQ: | 1 pc |
| Price: | Negotiable |
| Payment Terms: | T/T, PayPal |
| Supply Ability: | 5000pcs/month |
| Delivery Time: | 3~5 working days |
| Packaging Details: | 1pc in a box |
| Product name: | 2*2B Bypass optical switch |
| Certificaiton: | CE FCC ROHS compliance |
| Power supply: | DC12~52V |
| Packing: | Neutral Packing |
| Application: | Telecommunication Network |
| Company Info. |
| Shenzhen Olycom Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Industrial Optical Bypass Switch
D2*2B/D4*4B OEM/ODM DC24V input

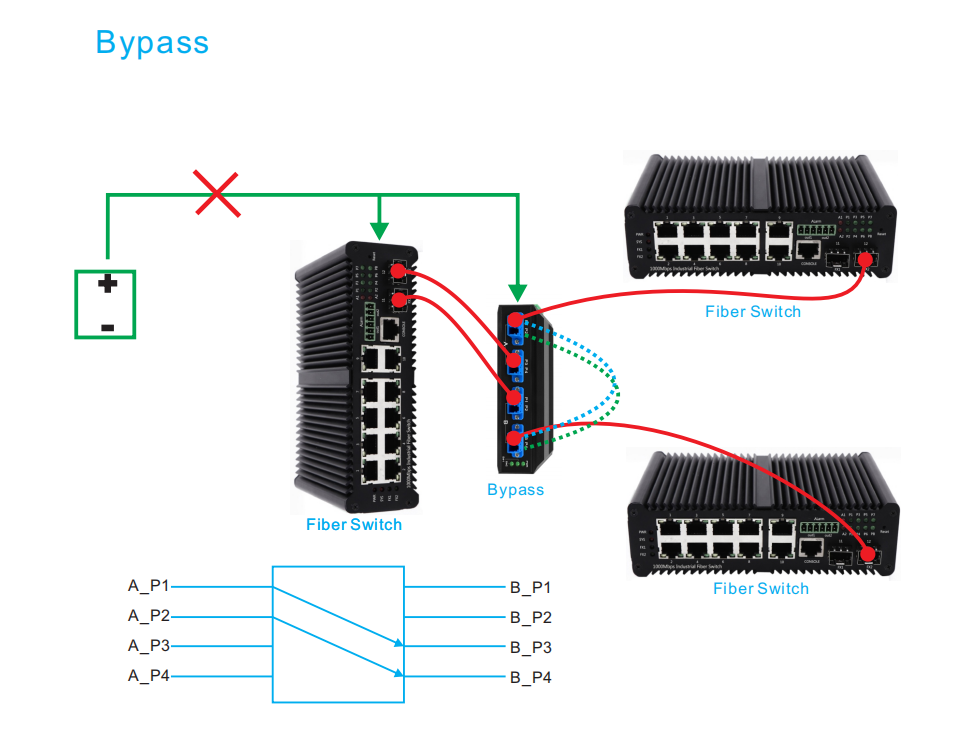

Introduction of bypass switch
Specification
| Product Name | Fiber Bypass |
| Power Interface | Standard industrial terminal block. |
| Polarity Protection | Support |
| Optical Fiber Interface | LC |
| Wavelength Range | 850±40/1300±40nm; 1260~1650nm |
| Test Wavelength | 850/1300nm; 1310/1550nm |
| Insert Loss | Typ:0.6 dB Max:1.0 dB ; Typ:0.6dB Max:1.0 dB |
| Return Loss | MM≥30 dB SM≥50 dB |
| Channel Crosstalk | MM≥35 dB SM≥55 dB |
| Polarization Loss | ≤0.05 dB |
| Wavelength Loss | ≤0.05 dB |
| Temperature Loss | ≤0.05 dB |
| Repeatability | ≤0.05 dB |
| Operating voltage | 3.3V-5V |
| Service life | ≥100000000 times |
| Switching time | ≤10 ms |
| Transmission optical power | ≤500 mw |
| Environment | Working temperature:-20°～ 70°C Storage temperature:-40°～ 85°C |

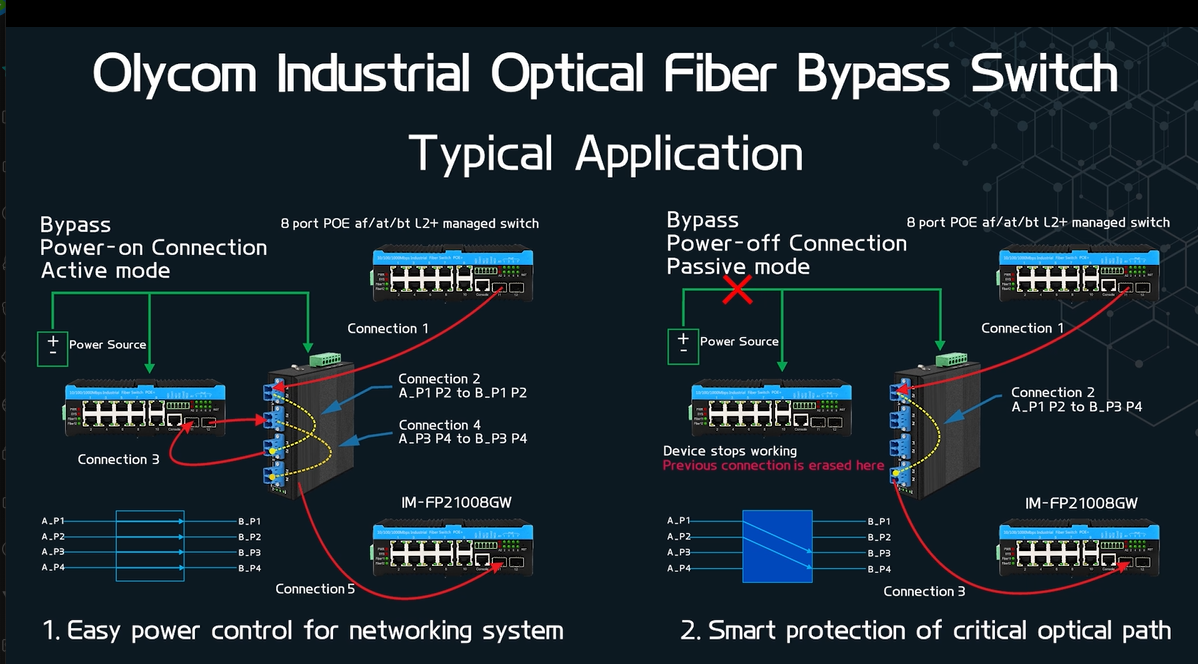

Application
Production Steps:
Welding: Weld the necessary components
Cleaning: To avoid any possible dysfunction due to dust or scraps on the PCB boards.
Assembling: Builds up components of a product, like panels, screws, PCB boards.
Testing: To make sure the product is basically working fine after assembling
Aging: To check if the product can work smoothly for long time without any minors such as LED indicators, voltage. This will usually last for 24 to 48 hours.
Testing: To test if the product can process data or video signals correctly. Any data loss? Transmission rate correct? Any data packet failure? Such questions would be verified in this procedure.
QC testing: This is the third and also last check of product quality. If it goes good, our packing staff will pack it up according to customer requirements and attach to the packing box a product lable.
When all above is done, the product will go to market.
|
