Low Insertion Loss 1x1 Mechanical OSW Fiber Optical Switch

1x1 Mechanical OSW Fiber Optic Switch


Introduction


Olycom' 1x1 Mechanical OSW Fiber Optic Switch is not affected by the polarization and wavelength. It supports all wavelength at 850nm and 1260nm~1650nm, and It provides high reliability, low insertion loss, fast switching speed and bi-directional performance. They are widely used for multiplex OADM, cross connectors OXC, system testing and protection.


Feature


· Low Insertion Loss

· Wide Wavelength Range

· Low Crosstalk

· High Stability, High Reliability

· Epoxy-free on Optical Path

· Latching and Non-latching


Application


1. R&D in Laboratory

2. System Monitoring

3. OADM

4. MAN (Metropolitan Area Network)


ParametersUnitOSW1×1
Wavelength Rangenm850±40 / 1300±401260 ~ 1650
Test Wavelengthnm850 / 13001310 / 1550
Insertion Loss 1, 2dBTyp: 0.6 Max: 1.0Typ: 0.6 Max: 1.0
Return Loss 1, 2dBMM ≥ 30 SM ≥ 50
Crosstalk 1dBMM ≥ 35 SM ≥ 55
PDLdB≤0.05
WDLdB≤0.25
RepeatabilitydB≤±0.02
Operating VoltageV3.0 or 5.0
DurabilityCycles≥ 10 Million
Switching TimemsTyp: 3 Max: 8
Optical PowermW≤500
Operating Temperature℃-10 ~ +70
Storage Temperature℃-40 ~ +85
Relative Humidity%5 ~ 95
Weightg14
Dimensionmm(L)27.0×(W)12.6×(H)8.2 ±0.2

Note: 1 Within operating temperature and SOP.

2 Excluding Connectors.

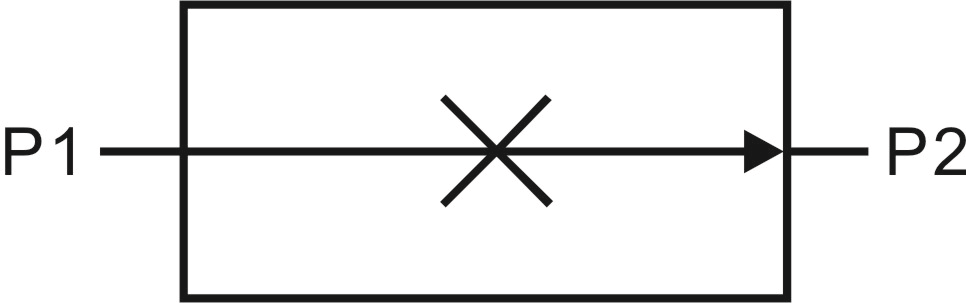

Optical Route


State AState B

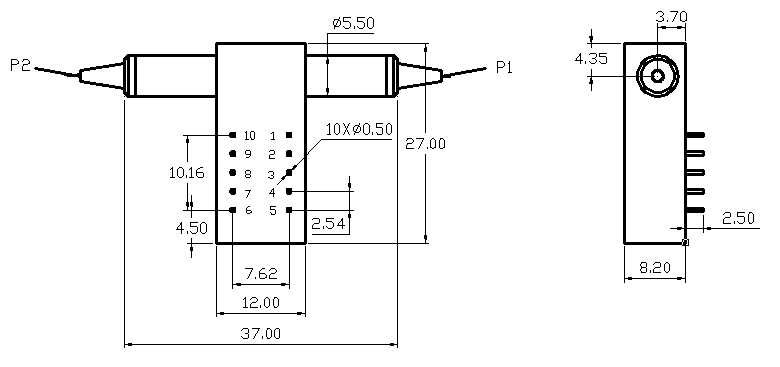

Dimension



Pin Configurations


TypeStateOptical RouteElectric DriveStatus Sensor
1×1Pin 1Pin 5Pin 6Pin 10Pin 2-3Pin 3-4Pin 7-8Pin 8-9
LatchingALight close----GNDV+CloseOpenOpenClose
BP1-P2V+GND----OpenCloseCloseOpen
Non-latchingALight close--------CloseOpenOpenClose
BP1-P2V+----GNDOpenCloseCloseOpen

Electrical Specification


SpecificationsVoltageCurrentResistance
5V latching4.5~5.5 V36~44 mA125 Ω
5V non-latching4.5~5.5 V26~32 mA175 Ω
3V latching2.7~3.3 V54~66 mA50 Ω
3V non-latching2.7~3.3 V39~47 mA70 Ω
