Brand Name: | LEADYO |
Model Number: | LP24V80 |
Certification: | UN38.3, CE,MSDS,UKCA |
Place of Origin: | China |
MOQ: | 1pcs |
Price: | Negotiable |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online |
Supply Ability: | 60Mwh |
Delivery Time: | 15-45 Days |
Packaging Details: | UN3480 Standard Export |
Nominal voltage: | 25.6V |
Nominal capacity: | 80Ah |
Weight: | 21kg |
Dimension: | 345*173*160mm |
Max charge current: | 100A |
Max discharge current: | 100A |
CaseABS Case: | Metal case |
terminal: | M8 |
Application: | Floor Machine |
High Light: | LiFePO4 Li-ion 24V80Ah Floor Cleaning Machine Battery |
Company Info. |
Shenzhen Leadyo Technology Co., Ltd. |
Verified Supplier |
View Contact Details |
Product List |

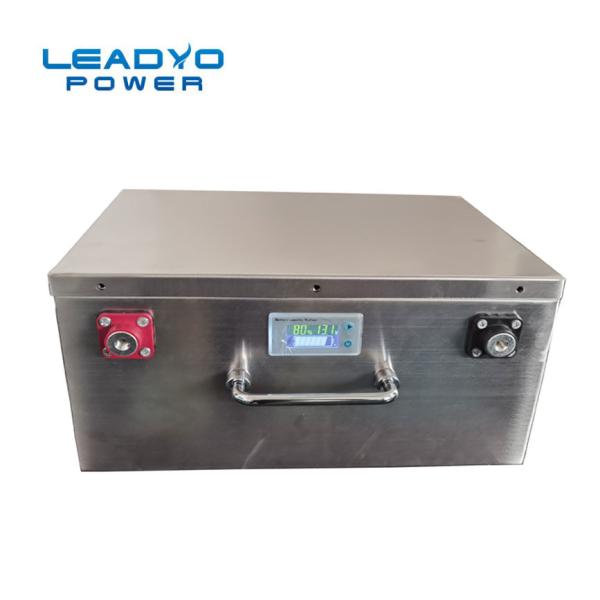

LiFePO4 Li-ion 24V80Ah Floor Cleaning Machine Battery lifepo4 battery pack
Leadyo lithium ion Phosphate (LiFePO4) Battery pack is designed as lighter-weight, longer-lasting replacement for floor cleaning machine lead acid batteries.
LiFePO4 battery pack delivers higher power, greater energy density
and increased safety to deliver superior performance and reduced
operating costs as compared to lead acid.
Features:
Long life
LiFePO4 batteries solution with extreme long usage life is now the
best battery solution for floor cleaning machine, it helps to
minimize the floor Cleaning machine battery replacement costs of
ownership.
Lighter weight
The LiFePO4 battery weighs less than half of comparable lead acid
batteries, providing customers with a lighter-weight solution to
optimize your product design and avoid unnecessary oversizing,
which helps minimize cost and system complexity.
High power
LiFePO4 deliver stronger power of lead acid, including at high
discharge rates and harsh temperature condition, while maintaining
high energy capacity to maximize product performance.
Super safety
LiFePO4 technology offers excellent abuse tolerance, establishing a
foundation of safety at the cell level. In addition, multiple
system-level of protection are employed to deliver greater
durability and reliability compared to lead acid and competing
lithium ion NMC or NCA battery technologies.
ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
Nominal Voltage | 25.6V | Terminal Type | M6 | |
Nominal Capacity | 80Ah | Weight | 21kg | |
Nominal Energy | 2048Wh | Case Dimension(L*W*H) | 345*173*160mm | |
Internal Resistance | ≤30 @50% SOC | Case Type | Metal | |
Capacity | @16A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
Maximum In Series | 2PCS | BMS:low voltage,high voltage,over temperature, | ||
Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
MAX Continuous Discharge Current | 100A | Max Charge Current | 100A | |
Peak Current | 300A | Recommended Charge Current | 16A - 40A | |
Discharge pulse current | 500±50A (31±10ms) | End of Charge voltage | 28.8V±0.2V | |
BMS Low Voltge Cut-off | 20V (2.0V±0.05v) pc) | Balancing current | Auto start | |
Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
Discharge Temperature | -20~+65℃ | Certifications | CE for Battery Pack | |
Charge Temperature | -20~+45℃ | UL1642 & IEC62133 for cells | ||
Storage Temperature Range | -20~+45℃ | |||
BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
Battery High Temperature Protection | 60℃ |
