| Categories | Floor Cleaning Machine Battery |
|---|---|
| Brand Name: | LEADYO |
| Model Number: | LP36V200 |
| Certification: | UN38.3, CE,MSDS,UKCA |
| Place of Origin: | China |
| MOQ: | 1pcs |
| Price: | Negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online |
| Supply Ability: | 60Mwh |
| Delivery Time: | 15-45 Days |
| Packaging Details: | UN3480 Standard Export |
| Nominal voltage: | 36V |
| Nominal capacity: | 200Ah |
| Weight: | 68kg |
| Dimension: | 705*305*260mm |
| Current: | 150A |
| Pluse current: | 500A |
| Case: | Metal case |
| Terminal: | M8 |
| Monitoring system: | Bluetooth / LCD display |
| High Light: | Long Cycle Life 36V 200ah Lithium Iron Phosphate LiFePO4 Battery Pack |
| Company Info. |
| Shenzhen Leadyo Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

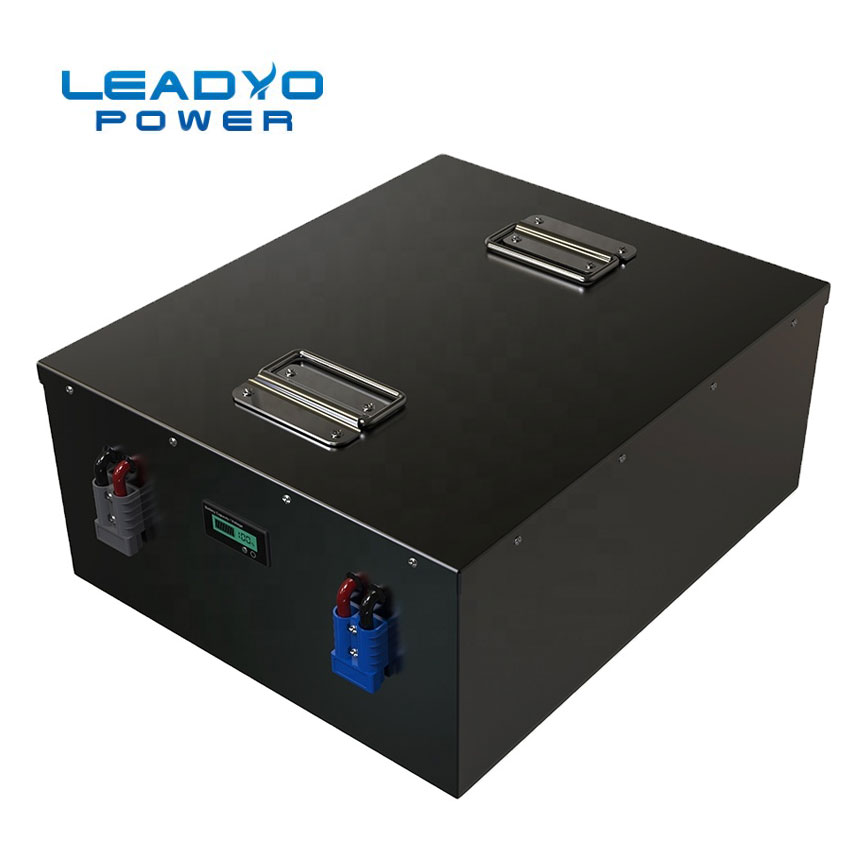

Long Cycle Life 36V 200ah Lithium Iron Phosphate LiFePO4 Battery Pack
The Leadyo 36V 100Ah Li-ion Battery is a state of the art
rechargeable battery pack made with Lithium Iron Phosphate cells
designed for 36V devices. It is perfect for e-scooters, e-bikes,
solar applications, robots, and other applications that require a
higher-energy density battery.
The Leadyo battery has a built in battery management system (BMS)
that keeps the battery running at peak performance and protects the
cells for thousands of cycles, including over-charge,
over-discharge, over-current, and short-circuit protection.
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 38.4V | Terminal Type | M8 | |
| Nominal Capacity | 200Ah | Weight | 65kg | |
| Nominal Energy | 7680Wh | Case Dimension(L*W*H) | 705*305*260mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
| Capacity | @20A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series and Parallel | NO | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 150A | Max Charge Current | 150A | |
| Peak Current | 500A | Recommended Charge Current | 40A - 100A | |
| Discharge pulse current | 700±100A (31±10ms) | End of Charge voltage | 43.2V±0.2V | |
| BMS Low Voltge Cut-off | 30V (2.0V±0.05v) pc) | Balancing current | Auto start | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
