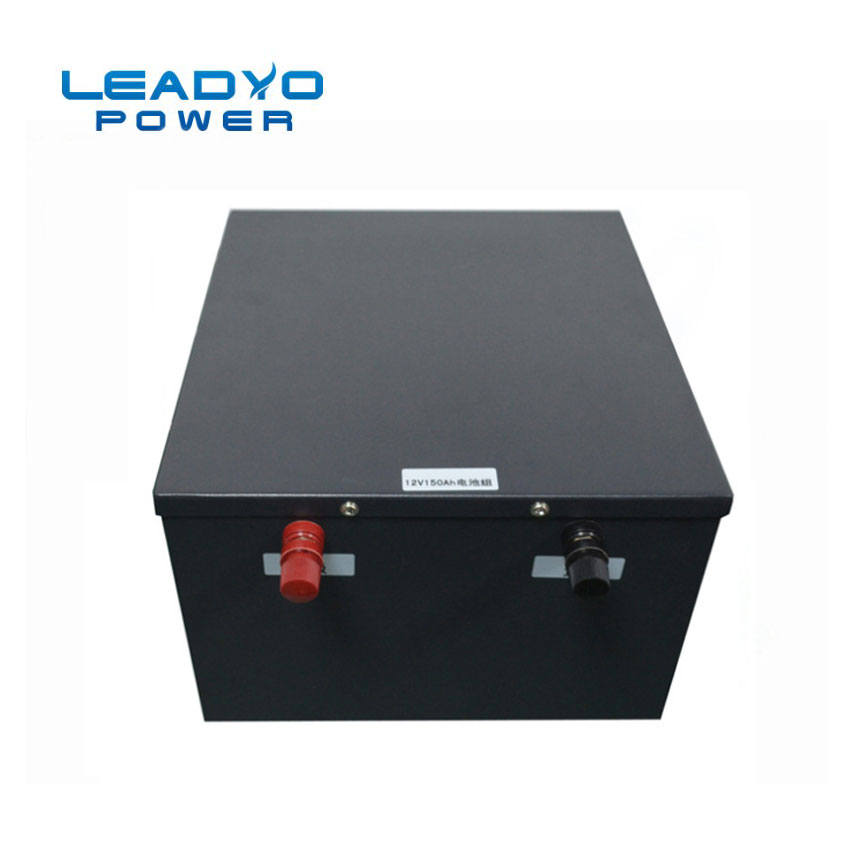

Name: lifepo4 150Ah 36V Lithium Ion Battery Low High Emperature Protection For Solar
Brand: LEADYO
Price: 1 USD

Home >

lifepo4 150Ah 36V Lithium Ion Battery Low High Emperature Protection For Solar

Categories	Floor Cleaning Machine Battery
Brand Name:	LEADYO
Model Number:	LP36V150
Certification:	UN38.3, CE,MSDS,UKCA
Place of Origin:	China
MOQ:	1pcs
Price:	Negotiable
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
Supply Ability:	60Mwh
Delivery Time:	15-45 Days
Packaging Details:	UN3480 Standard Export
Nominal voltage:	36V
Nominal capacity:	150Ah
Weight:	50kg
Dimension:	550305260mm
Current:	100A
Pluse current:	500A
Case:	Metal case
Terminal:	M8
Monitoring system:	Bluetooth / LCD display
High Light:	36V 150Ah Low high emperature protection lifepo4 batteries for solar

Contact Now

Add to Cart

Company Info.

Shenzhen Leadyo Technology Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

lifepo4 150Ah 36V Lithium Ion Battery Low High Emperature Protection For Solar

36V 150Ah Low high emperature protection lifepo4 batteries for solar

Light weight LIFEPO4 Lithium Batteries are compatible with any application powered by Lead Acid, Gel or AGM Batteries

Can make 4pcs in series to get a 48V battery pack
Unlimited parallel to add the capacity 200Ah,300Ah to 1000Ah
Custom Stickers on the shell.
Bluetooth APP with customer's company logo
With CE,UN38.3 and MSDS certificates

ELECTRICAL SPECIFICATIONS		MECHANICAL SPECIFICATIONS
Nominal Voltage	38.4V	Terminal Type	M8
Nominal Capacity	150Ah	Weight	50kg
Nominal Energy	5760Wh	Case Dimension(LWH)	550305260mm
Internal Resistance	≤30 @50% SOC	Case Type	Metal
Capacity	@30A: 300minutes(5hours)	Cell type / Chemistry	LiFePO4
Self Discharge	5% /per month	LCD or Bluetooth Function	Optional
Maximum In Series and Parallel	NO	BMS:low voltage,high voltage,over temperature,
Maximum In Parallel	No limit	Over current,short-circuit protection .etc
Discharge Current and Voltage Specifications		Charge Current and Voltage Specifications
MAX Continuous Discharge Current	150A	Max Charge Current	100A
Peak Current	300A	Recommended Charge Current	30A - 75A
Discharge pulse current	500±50A (31±10ms)	End of Charge voltage	43.2V±0.2V
BMS Low Voltge Cut-off	30V (2.0V±0.05v) pc)	Balancing current	Auto start
Short Circuit Protection	200-800 µs Auto recover or charge release	Balancing Voltage	3.6V±0.05v pc
Temperature Ranges		COMPLIANCE SPECIFICATIONS
Discharge Temperature	-20～+65℃	Certifications	CE for Battery Pack
Charge Temperature	-20～+45℃		UL1642 & IEC62133 for cells
Storage Temperature Range	-20～+45℃		UL1642 & IEC62133 for cells
BMS High Temperature Protection	90℃	Shipping classification	UN 3480
Battery High Temperature Protection	60℃

FAQ

1. Are you factory or trade company?We ara leading battery manufacturer in China,Is a high-tech
enterprise, specializing in R&D and marketing of Lithium
rechargeable battery products.Main use in Marine, RV,camping,Electric-fence, led light and other Solar/Wind
Power system, Golf Cart, AGV, floor machines,Forklift, EV,E-bike,
robot,power tooling, UPS, Medical and Military Equipment etc.

2.What is your main product?
12V-48V LiFePO4 Batteries (To Replace lead acid batteries)
12V 24V Automatic Start-Stop LiFePO4 Battery
1-32S Max 250A BMS/PCM
battery charger
Lithium ion cells, LiFePo4 cells and LTO cells
3.How to get a quote?
Please contact with us sales5@leadyo-battery.com or
Phone/whatsapp:+ 8618825284421

4.When you delivery order?
Normally 7-15 days for samples order , it can be negotiated based
on exact order quantity and schedule.

5.Do you accept OEM and ODM?
Yes sure, can customized your logo and design battery according to
your requirements.
