1280×1024 Resolution All In One Touch Computer 17 Inch PCAP

Categories Industrial Touchscreen Computer
Brand Name: KeeTouch
Model Number: KTP-170M-005
Certification: CCC, UL, FCC, CE, CB, RoHS
Place of Origin: Shenzhen,China
MOQ: 1 piece
Price: Negotiable
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 Pieces per Week
Delivery Time: 7-15 work days
Packaging Details: carton box
System Memory: Two 260-pin DDR4 2400/2666MHz SO-DIMM socket, supports up to 32GB Max
BIOS: AMI uEFI BIOS, 256Mbit SPI Flash ROM
operating system: Windows7/Windows10/Andriod(optional)
Touch Surface Hardness: 6H
Touch Screen Transparency: 85%
Waterproof Rating: IP65
View angle: 85/85/80/80(CR=10)/88/88/85/85(CR=5)
Product name: Industrial Touchscreen Computer
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

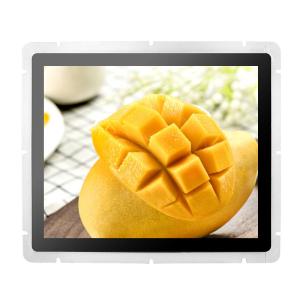

1280×1024 Resolution All In One Touch Computer 17 Inch PCAP

17 Inch PCAP All-In-One Touch Computer 1280×1024 Resolution



Industrial Touchscreen Computer Main Features

This PCAP all-in-one touch computer has anti-vandal and IP65 surface waterproof functions. With pure flat and narrow edge design, the PCAP touch computer is very sleek and fashionable. There are various configurations for your option, J1900, i3, i5 etc. It also supports operating systems: WIN7, WIN10, Android. According to customers individual requirements, other sizes (7’’-43’’) are available.

Industrial Touchscreen Computer Specifications

KTP-170M-005
DisplayScreen17 inch
Resolution1280×1024
According to the proportion5:4
Brightness1000nit
Contrast1000:1(Typ.)/600:1(Min.)
Response Time5ms
View angle85/85/80/80(CR=10)/88/88/85/85(CR=5)
Active Display Area337.920×270.336mm
PC ConfigurationCPU

Intel® 8th Gen Supports LGA 1151 CPU Up to 95W Max
Intel® 9th Gen Supports 4 core & 6 core CPU (TDP: 95W), 8 core CPU, only support
CPU TDP up to 35W Max.
Intel® C246 Chipset

System MemoryTwo 260-pin DDR4 2400/2666MHz SO-DIMM socket, supports up to 32GB Max
BIOSAMI uEFI BIOS, 256Mbit SPI Flash ROM
The operating systemWindows7/Windows10/Andriod(optional)
Touch ScreenTouch MethodCapacitive Touch
Touch Surface Hardness6H
Touch Screen Transparency85%
I/O interface1-VGA, 10-USB,4-LAN,2-HDMI, 1-DC,1-SWITCH, 1-PHONEIX TERMINAL
Other parametersCooling SystemFan
Enclosure MaterialMetal
Waterproof RatingIP65 ( Only for front panel )
Power Consumption≤30W
Working Temperature0 ~ 50 °C
Storage Temperature-20~60°C
Stroage Humidity20%~80%
Stroage Humidity10%~90%
Size418*355*98 (mm)
Warranty1 year
CertificationCCC, ETL, FCC, CE, CB, RoHS

The Industrial Touchscreen Computer Mechanical Dimensions

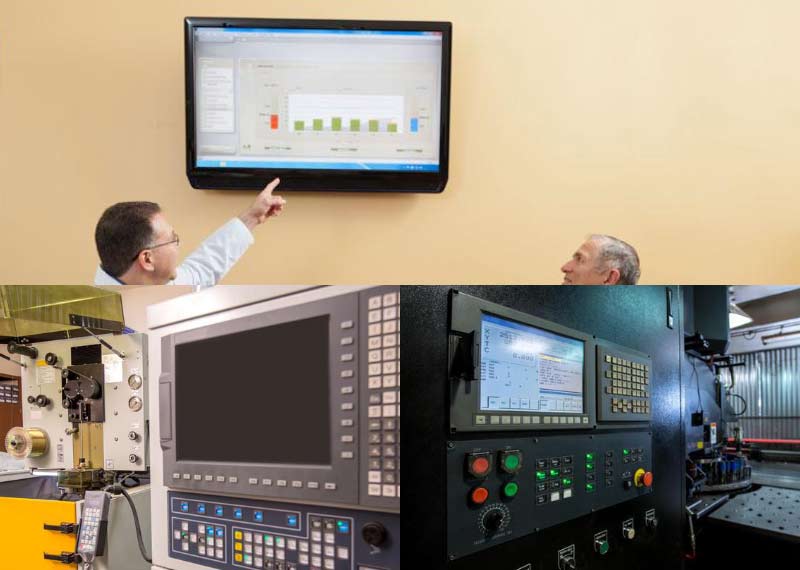

Applications

KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.


FAQ

1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer for over 16 years, located in Shenzhen, China.


2. What’s your MOQ for the PCAP all-in-one touch computer?

Our minimum order quantity is 1pc only.


3. What is your warranty period for the PCAP all-in-one touch computer?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).


4. What is your payment method?

We can accept T/T, Western Union, Paypal, Pay Later, Credit card, Boleto, e-Checking and Alipay. ( L/C can be negotiable. )


5. What is your delivery time?

3-5 work days for inventory orders, 7-15 business days for bulk production.
