| Categories | Industrial Touchscreen Computer |
|---|---|
| Brand Name: | KeeTouch |
| Model Number: | KOT-0150U-CA4P(KTP-150M-002-02) |
| Certification: | CCC, UL, FCC, CE, CB, RoHS |
| Place of Origin: | Shenzhen，China |
| MOQ: | 1 piece |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 Pieces per Week |
| Delivery Time: | 7-15 work days |
| Packaging Details: | carton box |
| Screen: | 15 inch |
| Series: | All-in-One Touch Computer |
| Display Type: | 5:4 Ratio 15" TFT-LCD |
| Active Display Area: | 304.1*228.1 (mm) |
| Suggested Resolution: | 1024*768 @ 60Hz |
| Touch Surface Hardness: | 6H |
| Touch Screen Transparency: | 85% |
| Product name: | Industrial Touchscreen Computer |
| Company Info. |
| Keetouch Co., Ltd. |
| View Contact Details |
| Product List |
Industrial Touchscreen Computer Main Features
Industrial Touchscreen Computer Specifications
| Complete Machine | ||
| Model No. | KOT-0150U-CA4P (P/N:KTP-150M-002-02) | |
| Series | All-in-One Touch Computer | |
| Display Type | 5:4 Ratio 15" TFT-LCD | |
| Active Area | 304.1*228.1 (mm) | |
| Monitor Dimensions (W*H*D) | 360.5*292*72 (mm) | |
| Suggested Resolution | 1024*768 @ 60Hz | |
| Support Colors | 16.2M | |
| Brightness (Typ.) | Pure LCD Panel | 300cd/m2 |
| With Touch Monitor | 255cd/m2 | |
| Response Time (Typ.) | 25ms | |
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 80°/80° |
| Vertical(up/down) | 70°/70° | |
| Contrast Ratio (Typ.) | 700:1 | |
| Frequency (H/V) | 37.9～80KHz / 60～75Hz | |
| Power Supply | Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz | |
| Environment | Operating Temp. | 0～50°C |
| Operating RH | 20%～80% | |
| Storage Temp. | -20～60°C | |
| Storage RH | 10%～90% | |
| Computer parameters | CPU | Freescale i.HX6Q(4 Core) |
| RAM | Onboard memory: Support DDR3, 2GB(default); Onboard storage: 8GB(default) EMMC Flash | |
| Interface | 4*USB, 1*HDMI, 5* serial port, LAN*1 | |
| LVDS | LVDS*1 (dual channel),support 24Bit | |
| HDMI | Support HDMI2.0, Max Resolution: 1080p@120Hz | |
| LAN | RJ45(10/100/1000Mbps) | |
| MTBF | ≥30,000 Hours | |
| LED Back Light Life (Typ.) | ≥30,000 Hours | |
| Mount Interface | 1.VESA 75mm and 100mm 2.Mount bracket, horizontal or vertical mount | |
| Agency approvals | CCC, ETL, FCC, CE, CB, RoHS | |
| Regular Warranty | 1 year | |
| Touch Screen | |
| Touch Type | 15" Capacitive touch screens |
| Touch input | USB |
| Response Time | ≤8ms |
| Hardness | 6H |
| Light Transmittance | ≥85% |
| Support System | Android/windows(optional) |
| Active Area | 305.1*229.1 (mm) |
| Thickness | 4.3±0.2 (mm) |
| Touch Test | ≥50,000,000 times |
| Input Voltage | DC 5V±5% |

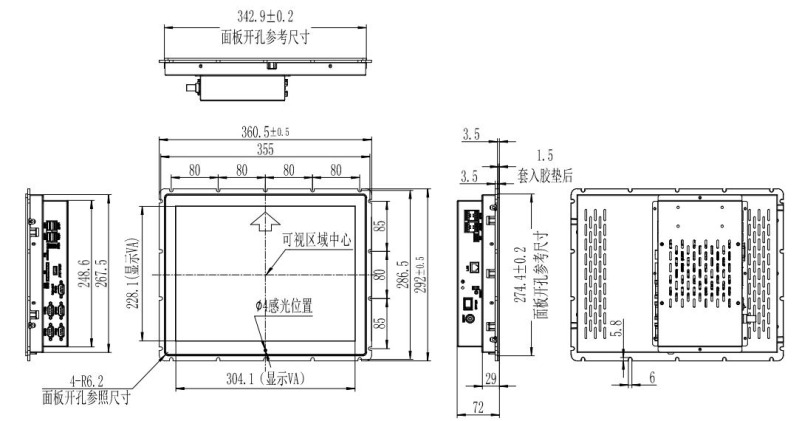

The Industrial Touchscreen Computer Mechanical Dimensions

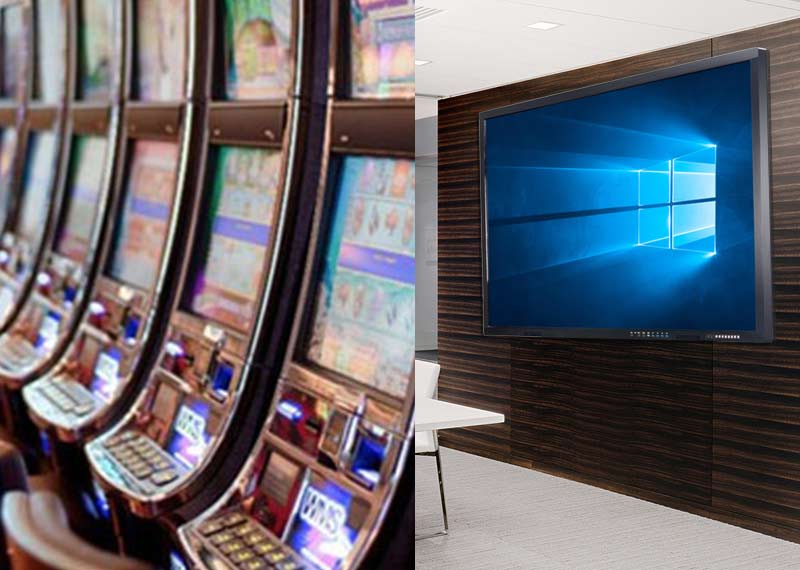

Applications
Widely used in industries such as retail,vending, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart homes, subways, railway stations, control and operation systems, airports, entertainments, etc.
FAQ
Q: Are you a manufacturer?
A: Yes, KeeTouch is a 16-year professional manufacturer of touch products. Our factory is located in Shenzhen, China.
Q: What’s your MOQ?
A: Our minimum order quantity is 1pc only.
Q: What are the shipping ways?
A: We will ship the goods according to the customer’s requirements. For sample, normally by FedEx, DHL, UPS, and TNT. For bulk orders, by air or by sea.
Q: What is your warranty period?
A: Our regular warranty is 12 months for all the products, with a
2-3 years Warranty (optional).
Q: Do you give any discount?
A: We will do our utmost to support you with a competitive price,
also good service will be offered.
|
