1000nit Brightness Touch Screen Computer PC Anti Vandal PCAP 17 Inch

Categories Industrial Touchscreen Computer
Brand Name: KeeTouch
Model Number: KTP-170M-005
Certification: CCC, UL, FCC, CE, CB, RoHS
Place of Origin: Shenzhen,China
MOQ: 1 piece
Price: Negotiable
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 Pieces per Week
Delivery Time: 7-15 work days
Packaging Details: carton box
Screen: 17 inch
Resolution: 1280×1024
Display Type: 5:4
Brightness: 1000nit
Contrast: 1000:1(Typ.)/600:1(Min.)
Response Time: 5s
View angle: 85/85/80/80(CR=10)/88/88/85/85(CR=5)
Product name: Industrial Touchscreen Computer
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

1000nit Brightness Touch Screen Computer PC Anti Vandal PCAP 17 Inch

1000nit Brightness Touch Screen Computer PC Anti Vandal PCAP 17 Inch


Industrial Touchscreen Computer Main Features

  • PCAP multi touch screen, high sensitive and fast response

  • High quality panel with high brightness, contrast ratio and broad viewing angle

  • Pure flat designed PCAP touch computer with IP65water proof function

  • Various configurations for your option, J1900, I3, I5 and I7

  • With a range of I/O ports, support a variety of third-party peripherals

  • Other sizes (7’’-43’’) can be offered or customized

Industrial Touchscreen Computer Specifications


KTP-170M-005
DisplayScreen17 inch
Resolution1280×1024
According to the proportion5:4
Brightness1000nit
Contrast1000:1(Typ.)/600:1(Min.)
Response Time5ms
View angle85/85/80/80(CR=10)/88/88/85/85(CR=5)
Active Display Area337.920×270.336mm
PC ConfigurationCPU

Intel® 8th Gen Supports LGA 1151 CPU Up to 95W Max

Intel® 9th Gen Supports 4 core & 6 core CPU (TDP: 95W), 8 core CPU, only support

CPU TDP up to 35W Max.

Intel® C246 Chipset

System MemoryTwo 260-pin DDR4 2400/2666MHz SO-DIMM socket, supports up to 32GB Max
BIOSAMI uEFI BIOS, 256Mbit SPI Flash ROM
The operating systemWindows7/Windows10/Andriod(optional)
Touch ScreenTouch MethodCapacitive Touch
Touch Surface Hardness6H
Touch Screen Transparency85%
I/O interface1-VGA, 10-USB,4-LAN,2-HDMI, 1-DC,1-SWITCH, 1-PHONEIX TERMINAL
Other parametersCooling SystemFan
Enclosure MaterialMetal
Waterproof RatingIP65 ( Only for front panel )
Power Consumption≤30W
Working Temperature0 ~ 50 °C
Storage Temperature-20~60°C
Stroage Humidity20%~80%
Stroage Humidity10%~90%
Size418*355*98 (mm)
Warranty1 year
CertificationCCC, ETL, FCC, CE, CB, RoHS

The Industrial Touchscreen Computer Mechanical Dimensions



Applications

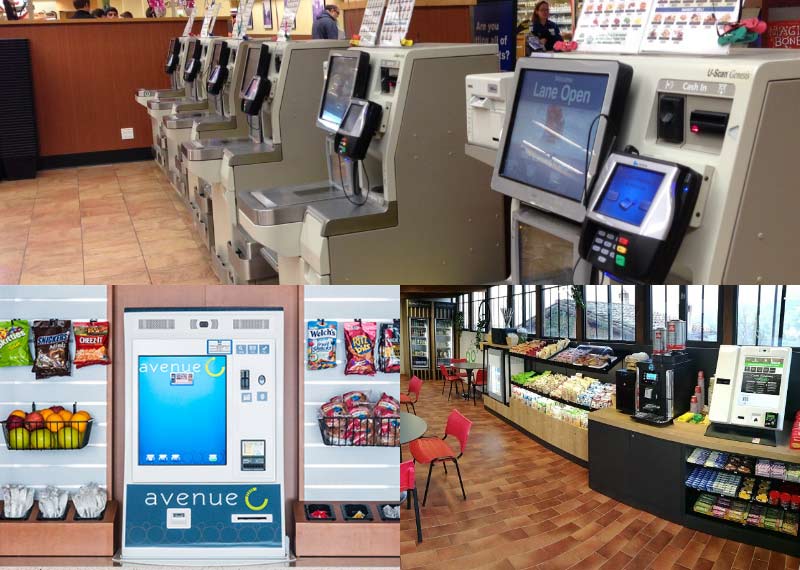

KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.




FAQ


1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer for over 16 years, located in Shenzhen, China.


2. What’s your MOQ for the PCAP all-in-one touch computer?

Our minimum order quantity is 1pc only.


3. What is your warranty period for the PCAP all-in-one touch computer?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).


4. Can you produce the PCAP all-in-one touch computer according to the customer's requirements?

Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.
