Rotor Slot Insulation Paper Insolation Polyester Cell DMD NMN PMP Inserting

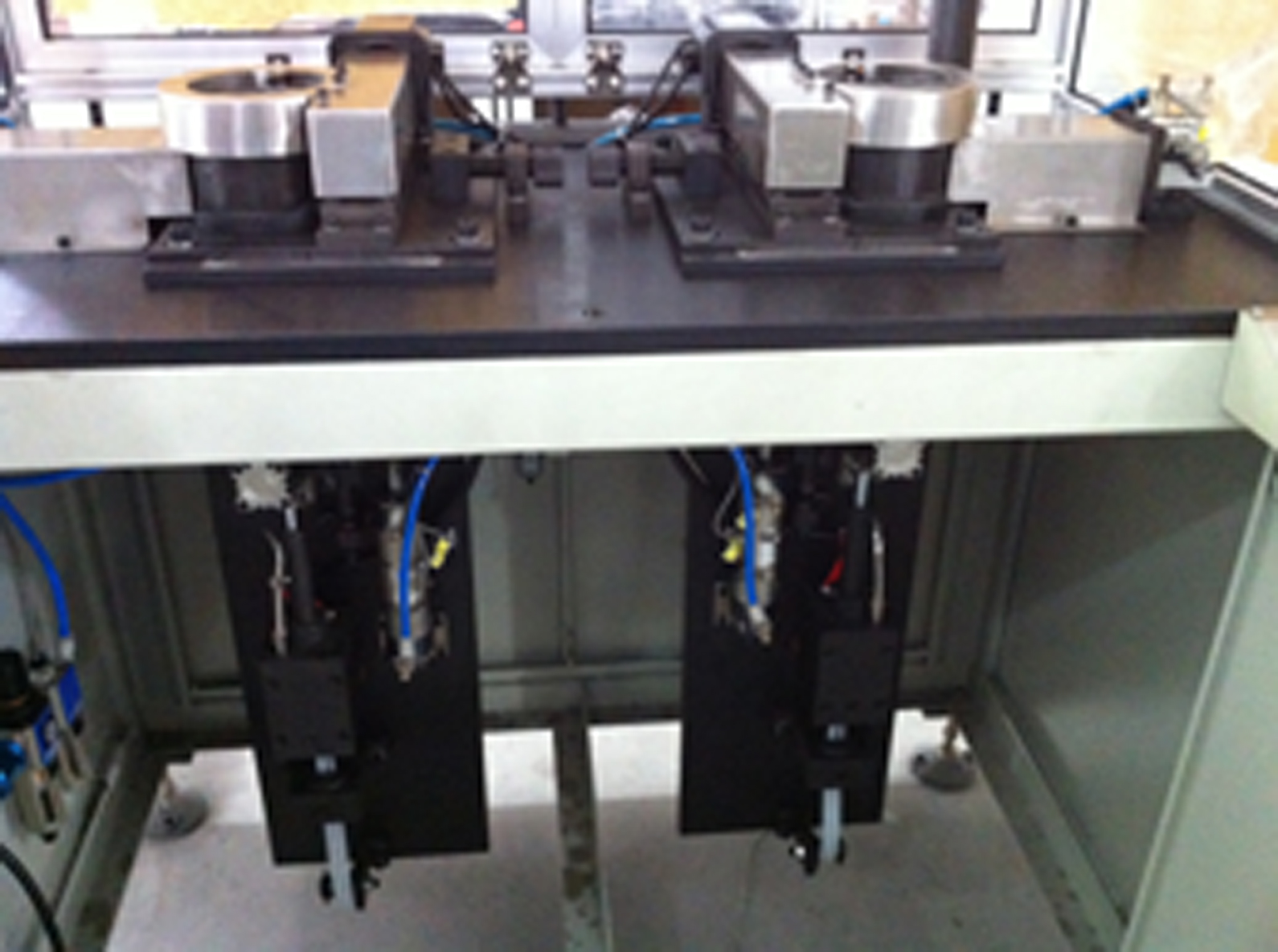

Rotor Slot Insulation Paper Insolation Polyester Cell DMD NMN PMP Inserting WIND-SZ-2

(1) Application

This paper inserting machine WIND-SZ-2 automatic heating, shaping, cutting off paper and

insertion,automatic indexing

(2) Competitive Advantages

a. Easy operation and quicker change tooling

b. The machine mechanical structure co-work perfectly with electronic system,

achieve higher stable performance in starter armature manufacturing market

c. Wind Automation insist on using the best part for oversea market

which can ensure the stable performance,save labor cost

comparing to paper forming and manual inserting production process

d. User like Ametek put repated order because of its easy opearation and quick change tooling process

(3) Parameter

Armature stack height: Max 100mm

Power Supply: 220V±10% 50Hz

Air source Pressure: 0.5~0.7Mpa

Heating temperater: 70~100℃

Weight: Around 700KGS

Dimension: 1200*650*1500mm

Please click below link to view video

http://vimeo.com/106465846

Shanghai Wind Automation Equipment Co.,Ltd supply motor automation solution for global motor manufacturers. Setted up in the year 2010 by Senior Engineer Mr.Wang who involve in electric motor filed since 1998. Through continuous innovation and participating in globalization, it has now developed into a large enterprise that integrates R&D, production and sales to provide motor solutions for customers worldwide.

Shanghai Wind Automation built a 3C business system

1.Customized Machinery

​   Provide armature,stator motor manufacturing mchinery,

   including stand along machine, fully-auto complete production line

​

2.Characteristic Component

  Supply the full range of motor components such as commutator, magnet, fan, motor cover,etc.

3.Comprehensive Service

   Provide motor project technical support and consulting

Centered on Shanghai, the company has formed four production bases in the Yangtze River Delta city group and supplied over 20 countries including USA, Mexico,Brazil, Argentina, Turkey,France,Germany,

Czech Republic,Romania,India, Bangladesh and So on.

Our objective is to provide turn-key motor manufacturing automation equipment with no limitation

as free as the Wind, reduce the labor cost and free the human being operator,

make the life easier and more enjoyable.
