| Categories | Slot Insulation Machine |
|---|---|
| Brand Name: | WIND AUTOMATION |
| Model Number: | WIND-200-WF |
| Place of Origin: | China |
| MOQ: | 1pc |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Delivery Time: | 30 working days |
| Packaging Details: | Wooden pallet suitable for sea or air shipment L910 mm x W880 mm x H1300mm3 |
| Condition: | New |
| Insertion speed: | 0.5 to 0.7 second per slot |
| Material: | DMD, DM, Polyester film(thickness 0.125mm) |
| edge folding length: | Usually the edge folding length is 2.5mm to 3mm |
| Machine Color: | White or Per Customer Requirement |
| After sales: | Engineer available for oversea support |
| Company Info. |
| Shanghai Wind Automation Equipment Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

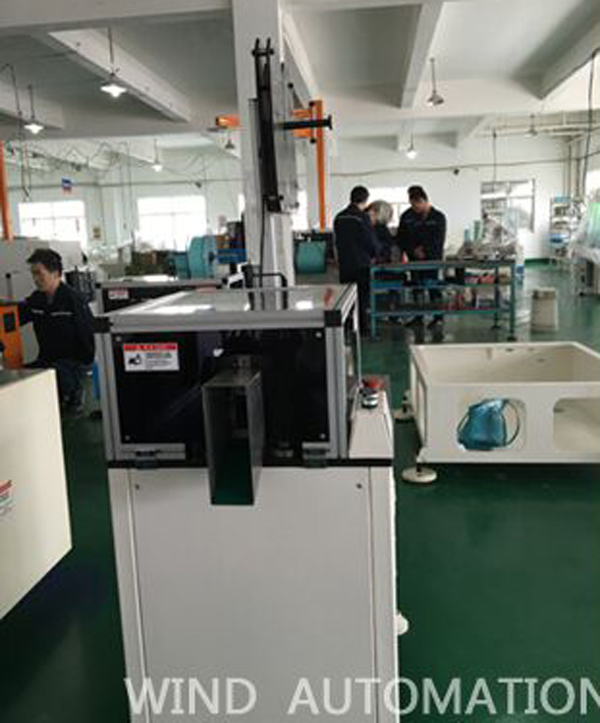

Generator Stator Slot Cell Inserter Insulation Paper Inserting Machine WIND-200-WF
(1) Application
This wedge forming machine WIND-200-WF forming cuffing creasing and cutting wedges
(2) Competitive Advantages
Efficiency 0.5 to 0.7 second per slot
Save labor cost comparing to paper forming and manual inserting production process
The edge folding length and insulation paper length can be adjusted
(3) Parameter
Feeding length 10~200mm
Cutting thickness < 0.35mm
Weight: around 150KGS
Dimension: 500*900*1200mm
Question and Answer:
Question:

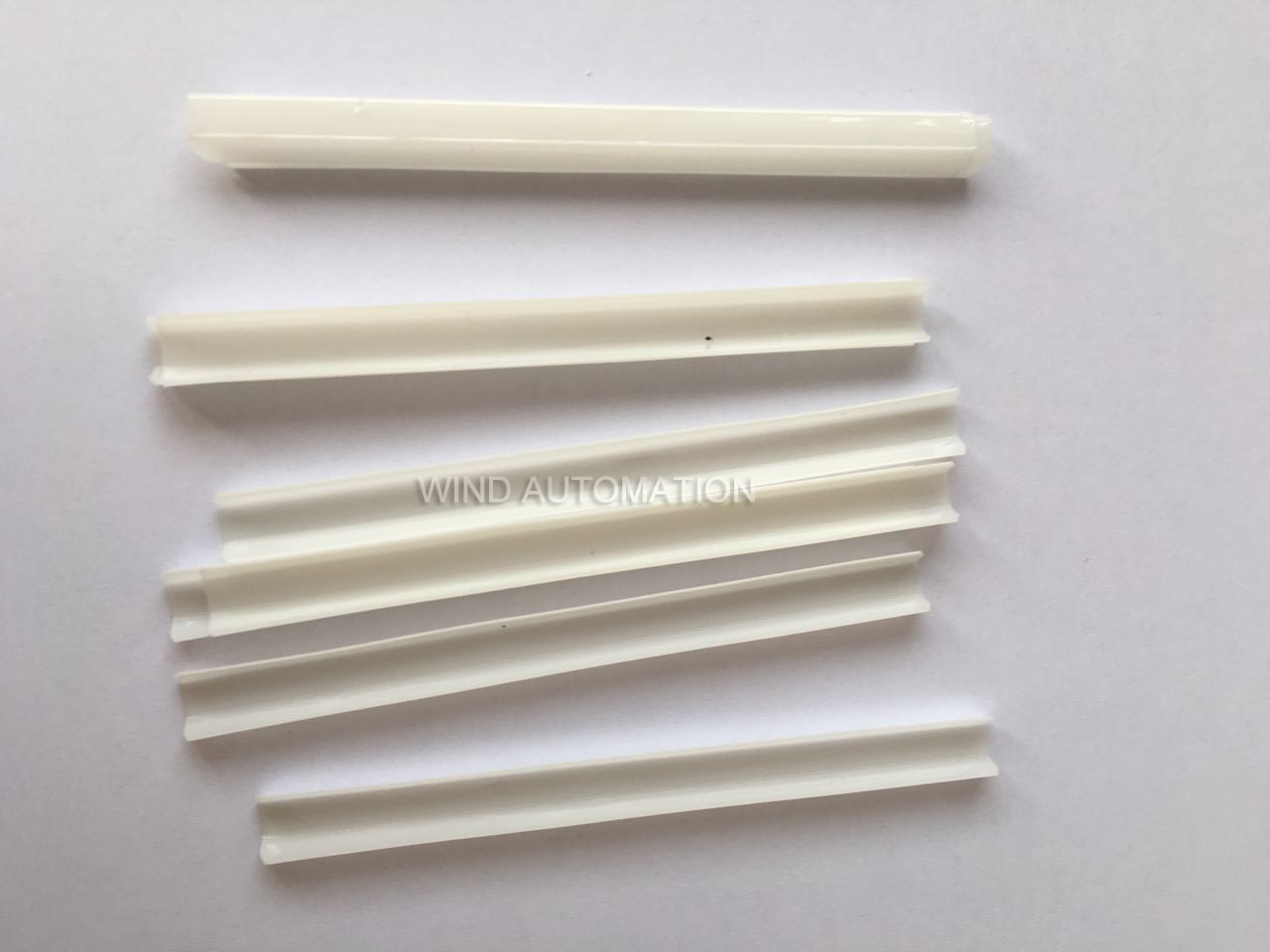

our topsticks (or wedge sample) can be 0.020”. Please advise if your automatic wedge forming machine
can form this wedge or not.
Answer:
in theory the automatic wedge forming machine can only form DMD paper below thickness 0.35mm,
The wedge should be heated on machine before formed,
Your wedge is NMN with 0.51mm and too hard to be formed, sorry, the forming machine WIND-200-WF
can't meet your requirment.
Please click below photo to view video
|
