24 Slot Insulation Machine Generator Stator Slot Cell Inserter Insulation

Generator Stator Slot Cell Inserter Insulation Paper Inserting Machine WIND-100-SI

Application

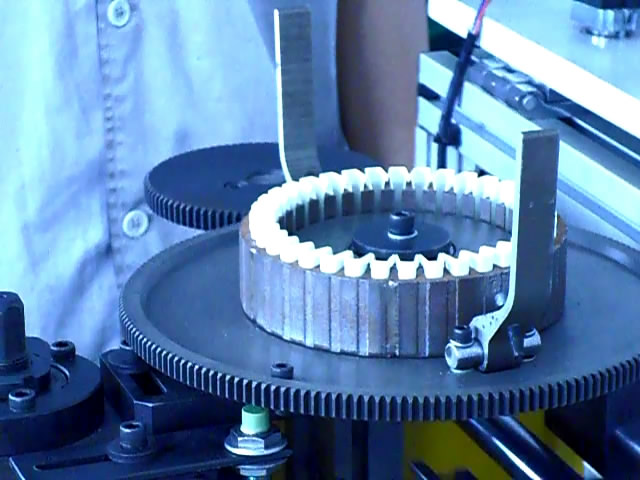

This slot cell forming and inserting machine WIND-100-SI stator insulation paper form cut and

inserting insulation paper for induction motor cell insulation such as pump,ceiling fan, compressor,

hood motors.

Competitive Advantages

Efficiency 0.5 to 0.7 second per slot

Save labor cost comparing to paper forming and manual inserting production process

The edge folding length and insulation paper length can be adjusted

Parameter

Laminated thickness of stator: 10mm-100mm

Max outer diameter of stator: Φ 200mm

Diameter of stator: Φ 15mm- Φ 90mm

Height of edge folded: 2.5mm-5mm

Max insulation paper's thickness: 0.3mm

Feeding length: 12mm-45mm

Tack time: 0.5 to 0.7s/slot

Input: 380V/50Hz

Power: 0.75KW

Machine productivity: around 1500pcs/8hours

Dimension: 950mm × 600mm × 1000mm

Weight: ≈ 150kg

Please click below photo to view video
