Categories | Seamless Stainless Steel Pipe |
---|---|
Brand Name: | KAYSUNS |
Model Number: | KS-SMLS |
Certification: | PED,ISO |
Place of Origin: | China |
MOQ: | 500Kgs |
Price: | USD |
Supply Ability: | 500Tons per Month |
Delivery Time: | 30-45days |
Packaging Details: | Plastic Bags / Plywood Boxes |
Material: | 304, 304L, 316, 316L, 316Ti, 317L, 321, 321H, 347, 347H, 310S, 310H, 904L, 254SMO, etc. |
Standard: | ASTM A312, A213,A269 |
Process: | Cold Drawn / Cold Rolled |
Size: | 1/2” to 60” (DN15 ~DN1500) |
Type: | Seamless |
OD.: | up to 1000mm |
Company Info. |
Kaysuns Industry Ltd. |
View Contact Details |
Product List |

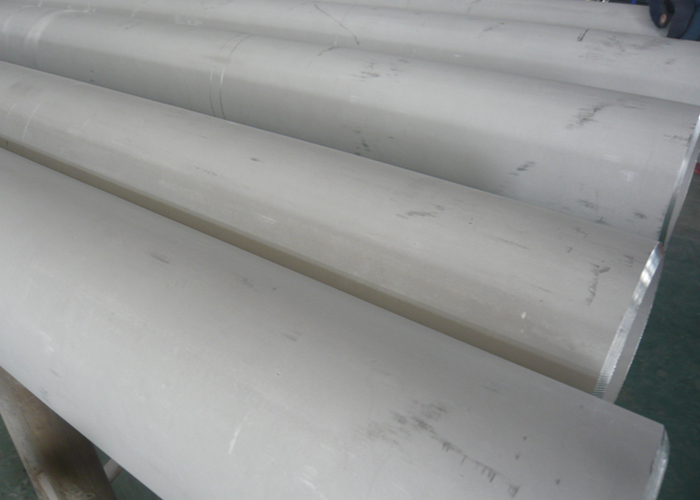

3 Inch SCH40 TP316 / 316L Seamless Stainless Steel Pipes Water And Gas
Steel pipes are found in a variety of places. Since they are
strong, they are used underground for
transporting water and gas throughout cities and towns. They are
also employed in construction to protect
electrical wires.
Cold Rolling is a preferred production process for high precision seamless tube. Most of our heat exchanger tubing and mechanical tube are made by cold rolling. This technique provides a high forming rate, narrow tolerances and good turnouts. Now the biggest diameter we can get is 168.3mm for this process.
Cold Drawing is the general process for our tube and pipe.
Pipe&tubes from this process can be got a a very narrow
tolerance ranges, and keep the chemical element well. Additionally,
the cold drawing process is the perfect choice for situations which
place high requirements on the quality of the surface structure.
Composition:
Elements | 316L (wt%) S31603 | 316 (wt%) S31600 |
(C) Carbon, max | 0.035 | 0.08 |
(Mn) Manganese, max | 2 | 2 |
(P) Phosphorus, max | 0.045 | 0.045 |
(S) Sulfur, max | 0.03 | 0.03 |
(Si) Silicon, max | 1 | 1 |
(Ni) Nickel | 10.0 - 14.0 | 10.0 - 14.0 |
(Cr) Chromium | 16.0 - 18.0 | 16.0 - 18.0 |
(Mo) Molybdenum | 2.0 - 3.0 | 2.0 - 3.0 |
(Fe) Iron | Bal. | Bal. |
(Cu) Copper | N/A | N/A |
(N) Nitrogen | N/A | N/A |
C(max) | Si(max) | Mn(max) | P(max) | S(max) | Cr | Ni | Mo | Ti | |
TP304/1.4301 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-10.5 | ||
TP304L/1.4307 | 0.035 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-12.0 | ||
TP304H/1.4948 | 0.04-0.10 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-12.0 | ||
TP316/1.4401 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 16.0-18.0 | 11.0-14.0 | 2.0-3.0 | |
TP316L/1.4404 | 0.035 | 1.00 | 2.00 | 0.045 | 0.030 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | |
TP316Ti/1.4571 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | 0.7>5x(C+N) |
TP321/1.4541 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 17.0-19.0 | 9.0-12.0 | 0.7>5x(C+N) | |
TP317L/1.4449 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 11.0-14.0 | 3.0-4.0 | |
TP347H/1.4912 | 0.04-0.10 | 1.00 | 2.00 | 0.045 | 0.030 | 17.0-19.0 | 9.0-13.0 | ||
TP309S/1.4833 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 22.0-24.0 | 12.0-15.0 | 0.75 | |
TP310S/1.4845 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 24.0-26.0 | 19.0-22.0 | 0.75 |
Size: | 1/2” to 60” (DN15 ~DN1500), outer diameter up to 1500mm |
Rate: | SCH5S to SCHXXS |
Standard: | ASTM A312, A213, A268,A269, A249, A270, A376,A511; |
Material: | Stainless:
TP304,304L,304H,316,316L,316H,316Ti,317,317L,309S,310S,310H,347,347H,321,321H,
904L, S31254 Duplex: UNS S31803 , S32205, S32750,S32760,S32304 (Mat.1.4462,1.4410,1.4501,1.4362)etc. Alloy: Monel 400, Inconel 600, Inconel 625, Incoloy 800, Incoloy 800H, Incoloy 825, Hastelloy B2, Hastelloy C-22, Hastelloy C-276, 15-5PH, 17-7PH,Cu70Ni30(C71500/B30), Cu90Ni10(C70600/B10)etc. |
Our factory is a leading manufacturer and supplier for qualified
stainless steel seamless pipes, includes ASME/ASTM, EN/DIN, JIS
series stainless steel pipes, and a wide range for material grades.
For more information, please contact us.
![]() |
