| Categories | Seamless Stainless Steel Pipe |
|---|---|
| Brand Name: | KAYSUNS |
| Model Number: | KS-SMLS |
| Certification: | PED,ISO |
| Place of Origin: | China |
| MOQ: | 500Kgs |
| Price: | USD |
| Supply Ability: | 500Tons per Month |
| Delivery Time: | 30-45days |
| Packaging Details: | Plastic Bags / Plywood Boxes |
| Material: | 304, 304L, 316, 316L, 316Ti, 317L, 321, 321H, 347, 347H, 310S, 310H, 904L, 254SMO, etc. |
| Standard: | ASTM A312, A213,A269 |
| Product Name: | Stainless Steel Threaded Pipes |
| Size: | 1/2” to 60” (DN15 ~DN1500) |
| Type: | Threaded |
| OD.: | up to 1000mm |
| Company Info. |
| Kaysuns Industry Ltd. |
| View Contact Details |
| Product List |

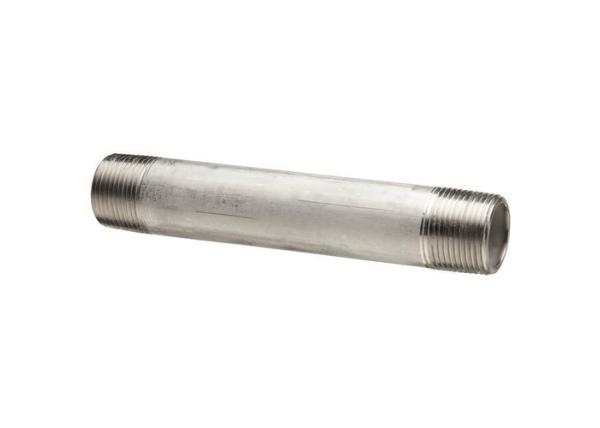

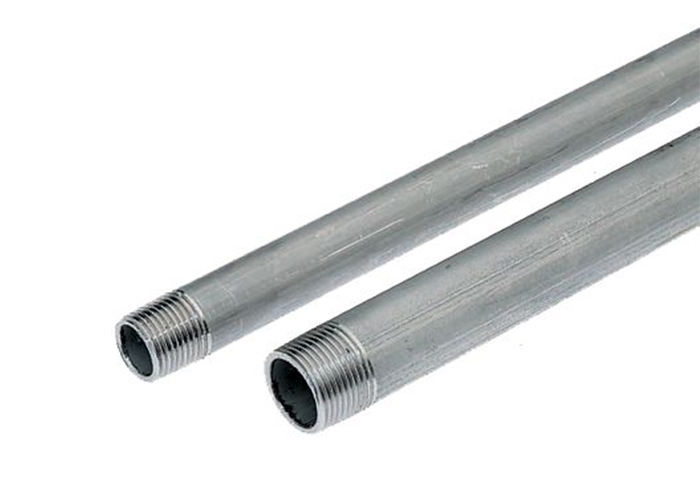

24 Diameter ASTM A312, A213,A269 Stainless Steel Threaded Pipe TP316L
Surface Finishes:
| DN | NPS(Inch) | D(mm) | SCH5S | SCH10S | SCH40S | STD | SCH40 | SCH80 | XS | SCH80S | SCH160 | XXS |
| 6 | 1/8 | 10.30 | - | 1.24 | 1.73 | 1.73 | 1.73 | 2.41 | 2.41 | 2.41 | - | - |
| 8 | 1/4 | 13.70 | - | 1.65 | 2.24 | 2.24 | 2.24 | 3.02 | 3.02 | 3.02 | - | - |
| 10 | 3/8 | 17.10 | - | 1.65 | 2.31 | 2.31 | 2.31 | 3.20 | 3.20 | 3.20 | - | - |
| 15 | 1/2 | 21.30 | 1.65 | 2.11 | 2.77 | 2.77 | 2.77 | 3.73 | 3.73 | 3.73 | 4.78 | 7.47 |
| 20 | 3/4 | 26.70 | 1.65 | 2.11 | 2.87 | 2.87 | 2.87 | 3.91 | 3.91 | 3.91 | 5.56 | 7.82 |
| 25 | 1 | 33.40 | 1.65 | 2.77 | 3.38 | 3.38 | 3.38 | 4.55 | 4.55 | 4.55 | 6.35 | 9.09 |
| 32 | 1 1/4 | 42.20 | 1.65 | 2.77 | 3.56 | 3.56 | 3.56 | 4.85 | 4.85 | 4.85 | 6.35 | 9.70 |
| 40 | 1 1/2 | 48.30 | 1.65 | 2.77 | 3.68 | 3.68 | 3.68 | 5.08 | 5.08 | 5.08 | 7.14 | 10.15 |
| 50 | 2 | 60.30 | 1.65 | 2.77 | 3.91 | 3.91 | 3.91 | 5.54 | 5.54 | 5.54 | 8.74 | 11.07 |
| 65 | 2 1/2 | 73.00 | 2.11 | 3.05 | 5.16 | 5.16 | 5.16 | 7.01 | 7.01 | 7.01 | 9.53 | 14.02 |
| 80 | 3 | 88.90 | 2.11 | 3.05 | 5.49 | 5.49 | 5.49 | 7.62 | 7.62 | 7.62 | 11.13 | 15.24 |
| 90 | 3 1/2 | 101.60 | 2.11 | 3.05 | 5.74 | 5.74 | 5.74 | 8.08 | 8.08 | 8.08 | - | - |
| 100 | 4 | 114.30 | 2.11 | 3.05 | 6.02 | 6.02 | 6.02 | 8.56 | 8.56 | 8.56 | 13.49 | 17.12 |
| 125 | 5 | 141.30 | 2.77 | 3.40 | 6.55 | 6.55 | 6.55 | 9.53 | 9.53 | 9.53 | 15.88 | 19.05 |
| 150 | 6 | 168.30 | 2.77 | 3.40 | 7.11 | 7.11 | 7.11 | 10.97 | 10.97 | 10.97 | 18.26 | 21.95 |
| 200 | 8 | 219.10 | 2.77 | 3.76 | 8.18 | 8.18 | 8.18 | 12.70 | 12.70 | 12.70 | 23.01 | 22.23 |
| 250 | 10 | 273.10 | 3.40 | 4.19 | 9.27 | 9.27 | 9.27 | 15.09 | 12.70 | 12.70 | 28.58 | 25.40 |
Composition:
| Elements | 316L (wt%) S31603 | 316 (wt%) S31600 |
| (C) Carbon, max | 0.035 | 0.08 |
| (Mn) Manganese, max | 2 | 2 |
| (P) Phosphorus, max | 0.045 | 0.045 |
| (S) Sulfur, max | 0.03 | 0.03 |
| (Si) Silicon, max | 1 | 1 |
| (Ni) Nickel | 10.0 - 14.0 | 10.0 - 14.0 |
| (Cr) Chromium | 16.0 - 18.0 | 16.0 - 18.0 |
| (Mo) Molybdenum | 2.0 - 3.0 | 2.0 - 3.0 |
| (Fe) Iron | Bal. | Bal. |
| (Cu) Copper | N/A | N/A |
| (N) Nitrogen | N/A | N/A |
| C(max) | Si(max) | Mn(max) | P(max) | S(max) | Cr | Ni | Mo | Ti | |
| TP304/1.4301 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-10.5 | ||
| TP304L/1.4307 | 0.035 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-12.0 | ||
| TP304H/1.4948 | 0.04-0.10 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-12.0 | ||
| TP316/1.4401 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 16.0-18.0 | 11.0-14.0 | 2.0-3.0 | |
| TP316L/1.4404 | 0.035 | 1.00 | 2.00 | 0.045 | 0.030 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | |
| TP316Ti/1.4571 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | 0.7>5x(C+N) |
| TP321/1.4541 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 17.0-19.0 | 9.0-12.0 | 0.7>5x(C+N) | |
| TP317L/1.4449 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 11.0-14.0 | 3.0-4.0 | |
| TP347H/1.4912 | 0.04-0.10 | 1.00 | 2.00 | 0.045 | 0.030 | 17.0-19.0 | 9.0-13.0 | ||
| TP309S/1.4833 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 22.0-24.0 | 12.0-15.0 | 0.75 | |
| TP310S/1.4845 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 24.0-26.0 | 19.0-22.0 | 0.75 |
| Size: | 1/2” to 60” (DN15 ~DN1500), outer diameter up to 1500mm |
| Rate: | SCH5S to SCHXXS |
| Standard: | ASTM A312, A213, A268,A269, A249, A270, A376,A511; |
| Material: | Stainless:
TP304,304L,304H,316,316L,316H,316Ti,317,317L,309S,310S,310H,347,347H,321,321H,
904L, S31254 Duplex: UNS S31803 , S32205, S32750,S32760,S32304 (Mat.1.4462,1.4410,1.4501,1.4362)etc. Alloy: Monel 400, Inconel 600, Inconel 625, Incoloy 800, Incoloy 800H, Incoloy 825, Hastelloy B2, Hastelloy C-22, Hastelloy C-276, 15-5PH, 17-7PH,Cu70Ni30(C71500/B30), Cu90Ni10(C70600/B10)etc. |
Our factory is a leading manufacturer and supplier for qualified
stainless steel threaded pipes, includes ASME/ASTM, EN/DIN, JIS
series stainless steel pipes, and a wide range for material grades.
For more information, please contact us.
|
