Name: Polished Sch10s Seamless Stainless Steel Pipe TP304 304L DN40 ASTM A312 A213
Brand: KAYSUNS
Price: 1 USD

Home > Pig Iron >

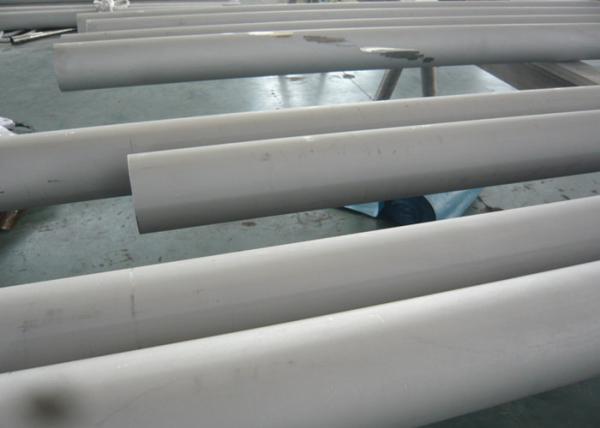

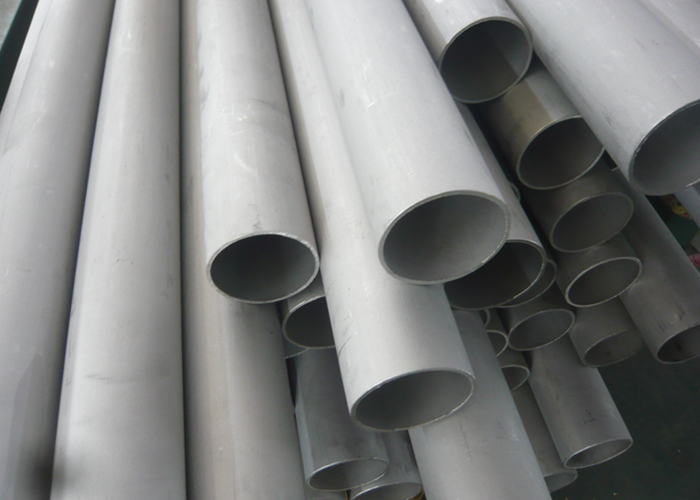

Polished Sch10s Seamless Stainless Steel Pipe TP304 / 304L DN40 ASTM A312 A213

Categories	Seamless Stainless Steel Pipe
Brand Name:	KAYSUNS
Model Number:	KS-SMLS
Certification:	PED,ISO
Place of Origin:	China
MOQ:	500Kgs
Price:	USD
Supply Ability:	500Tons per Month
Delivery Time:	30-45days
Packaging Details:	Plastic Bags / Plywood Boxes
Material:	304, 304L, 316, 316L, 316Ti, 317L, 321, 321H, 347, 347H, 310S, 310H, 904L, 254SMO, etc.
Standard:	ASTM A312, A213,A269
Process:	Cold Drawn / Cold Rolled
Size:	1/2” to 60” (DN15 ~DN1500)
Type:	Seamless
OD.:	up to 1000mm

Contact Now

Add to Cart

Company Info.

Kaysuns Industry Ltd.

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Polished Sch10s Seamless Stainless Steel Pipe TP304 / 304L DN40 ASTM A312 A213

DN25 Sch80 / Sch80s TP304 / 304L ASTM A312, A213 Stainless Steel Pipes Seamless

Cold Rolling is a preferred production process for high precision seamless tube. Most of our heat exchanger tubing and mechanical tube are made by cold rolling. This technique provides a high forming rate, narrow tolerances and good turnouts. Now the biggest diameter we can get is 168.3mm for this process.

Cold Drawing is the general process for our tube and pipe. Pipe&tubes from this process can be got a a very narrow tolerance ranges, and keep the chemical element well. Additionally, the cold drawing process is the perfect choice for situations which place high requirements on the quality of the surface structure.

Composition:

Elements	304L(wt%) S30403	304(wt%) S30400
(C) Carbon, max	0.035	0.08
(Mn) Manganese, max	2	2
(P) Phosphorus, max	0.045	0.045
(S) Sulfur, max	0.03	0.03
(Si) Silicon, max	1	1
(Ni) Nickel	8.0 - 12.0	8.0 - 11.0
(Cr) Chromium	18.0 - 20.0	18.0 - 20.0
(Mo) Molybdenum	N/A	N/A
(Fe) Iron	Bal.	Bal.
(Cu) Copper	N/A	N/A
(N) Nitrogen	N/A	N/A

	C(max)	Si(max)	Mn(max)	P(max)	S(max)	Cr	Ni	Mo	Ti
TP304/1.4301	0.080	1.00	2.00	0.045	0.030	18.0-20.0	8.0-10.5
TP304L/1.4307	0.035	1.00	2.00	0.045	0.030	18.0-20.0	8.0-12.0
TP304H/1.4948	0.04-0.10	1.00	2.00	0.045	0.030	18.0-20.0	8.0-12.0
TP316/1.4401	0.080	1.00	2.00	0.045	0.030	16.0-18.0	11.0-14.0	2.0-3.0
TP316L/1.4404	0.035	1.00	2.00	0.045	0.030	16.0-18.0	10.0-14.0	2.0-3.0
TP316Ti/1.4571	0.080	1.00	2.00	0.045	0.030	16.0-18.0	10.0-14.0	2.0-3.0	0.7>5x(C+N)
TP321/1.4541	0.080	1.00	2.00	0.045	0.030	17.0-19.0	9.0-12.0		0.7>5x(C+N)
TP317L/1.4449	0.080	1.00	2.00	0.045	0.030	18.0-20.0	11.0-14.0	3.0-4.0
TP347H/1.4912	0.04-0.10	1.00	2.00	0.045	0.030	17.0-19.0	9.0-13.0
TP309S/1.4833	0.080	1.00	2.00	0.045	0.030	22.0-24.0	12.0-15.0	0.75
TP310S/1.4845	0.080	1.00	2.00	0.045	0.030	24.0-26.0	19.0-22.0	0.75

Size:	1/2” to 60” (DN15 ~DN1500), outer diameter up to 1500mm
Rate:	SCH5S to SCHXXS
Standard:	ASTM A312, A213, A268,A269, A249, A270, A376,A511; ASTM A789, A790; ASTM B163, B165, B167, B407, B423, B444, B622, B677, B729; EN10216-5, EN/DIN17455,EN/DIN17456, EN/DIN17458DIN2462 etc.
Material:	Stainless: TP304,304L,304H,316,316L,316H,316Ti,317,317L,309S,310S,310H,347,347H,321,321H, 904L, S31254 (mat.1.4301,1.4307,1.4948,1.4401,1.4404,1.4571,1.4438,1.4438, 1.4833,1.4841,1.4845,1.4845,1.4450,1.4541,1.4878,1.4539, 1.4547/254SMO) etc. Duplex: UNS S31803 , S32205, S32750,S32760,S32304 (Mat.1.4462,1.4410,1.4501,1.4362)etc. Alloy: Monel 400, Inconel 600, Inconel 625, Incoloy 800, Incoloy 800H, Incoloy 825, Hastelloy B2, Hastelloy C-22, Hastelloy C-276, 15-5PH, 17-7PH,Cu70Ni30(C71500/B30), Cu90Ni10(C70600/B10)etc.

DN40 Sch10s TP304 304L Seamless Stainless Steel Pipes ASTM A312, A213
Our factory is a leading manufacturer and supplier for qualified stainless steel seamless pipes, includes ASME/ASTM, EN/DIN, JIS series stainless steel pipes, and a wide range for material grades.

For more information, please contact us.
