Automatic highly efficiency and qualified stator coils shape expanding and forming machine

Categories Coil Forming Machine
Brand Name: NIDE
Model Number: Z3XL3-110-160
Certification: CE
Place of Origin: China
MOQ: 1 SET
Price: negotiable
Supply Ability: 300 sets per year
Delivery Time: 50 working days
Packaging Details: Wooden case which is suitable for sea transportation
Payment Terms: L/C, T/T
Production name: stator coil forming equipment
Used for: stator coil final forming
Color: customized
Type: middle
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Automatic highly efficiency and qualified stator coils shape expanding and forming machine

Automatic stator coils shape expanding and forming machine


Brief introduction:

With high technology and stable performance, this final forming machine is of highly efficiency and qualified forming. it is equipped with and driven by the hydraulic system. The displacement of cylinder is 20L/min. The machine tooling design adopts flexible principles of inner expansion. The outer wrapping and edge forming form the stator winding. It can ensure appropriate winding outside dimension after lacing.

Competitive advantages
Variety of application, easy operation.
We have Overseas Service Center.
Machine is controlled by PLC. All the parameter can be set in the touch screen.
It is suitable for stators with different model number and dimension.
The operation and tooling change process is easy.
We could customize machine for our customer as per their requirement.
We directly supply our machines to many countries, like USA, France, Turkey, Iran, India, Brazil, Argentina, Mexico etc.


Required information for quotation:

stator drawing before forming and after forming, including stator O.D, stator I.D, stator stack height, and end coil dimension.


Technical parameter:

ItemData
Size(L)650×(W)950×(H)2300
Tooling included weightAround 700
Power supply380V/50Hz three phase four wire power
Working pitch time≤13
stator IDΦ30~Φ120mm
stator ODΦ50~Φ160mm
Stack height15~160mm
Tooling stroke≤70


Machine maintenance
When doing maintenance, please stop machine running and cut off the power. During machine adjustment or maintenance, please do not disassemble machine or change the mechanical and electrical system elements at random.
Each time before using, check mechanical, electrical, hydraulic, pneumatic and lubricating parts.
After work finished, clean up machine and reset machine to make all the parts to go back to original position.
Regularly check if there is water in the filter. If yes, discharge the water.
Regularly check if there is sufficient oil in the atomized lubricator. If not, replenish it.
Regularly check the lubricating condition of guide mechanism, replenish if necessary.
Check and clean up the electrical cabinet once every three months.
Check solenoid valve screws and pipe connectors once every 3 months.
Check filter once every 2 months.

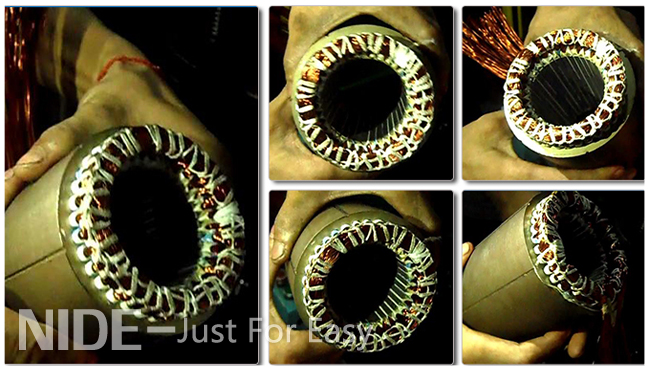

The stator coil forming and shaping machine picture display

Stator coil forming machine ,winding former
