Induction Motor Stator Winding Coil Forming Machine with hydraulic system , Middle size

Categories Coil Forming Machine
Place of Origin: China
Brand Name: Nide
Certification: CE
Model Number: Z2XL1-150-160
MOQ: 1 set
Price: Negotiable
Packaging Details: Wooden case suitable for sea transportation
Delivery Time: 35 working days
Payment Terms: T/T, L/C
Supply Ability: 60 sets per month
Machine color: as Per Customer Requirement
After-Sales Service: Overseas Service Center Available
Machine size: Middle size
Certificate: CE
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Induction Motor Stator Winding Coil Forming Machine with hydraulic system , Middle size


Induction Motor Stator Winding Coil Forming Machine with hydraulic system , Middle size


Quick Detail:

1. Model No.:Z2XL1-100/160
2. This stator winding forming machine is driven by hydraulic system.
3, PLC programming
4. The stator O.D. maximum is 160mm.
5. This stator winding coil forming machine can be designed as per customer's stator.

Description:

Stator Winding Middle Forming Machine is driven by hydraulic system; PLC programming;individual guard teeth in each slot settles fied wire and jump wire to ensure the reliability of electrical leakage distance; whole schematic design of inner expansion, outer wrapping and edge forming ensures appropriate winding outside dimension. Middle forming is done after winding inserting but before winding lacing.



Technical Data:

Stator I.D

30~100mm

Max stator O.D

160mm

Stator stack height

16~100mm

Displacement of oil pump

20F

Voltage

380V/50Hz

Power

3750W

Machine productivity

Around 1500pcs/8hours

Weight

1000Kg

Dimension

1200mm × 750mm × 2500mm


Competitive advantages:

the stator winding forming machine equipment can be designed as per customer's stator.

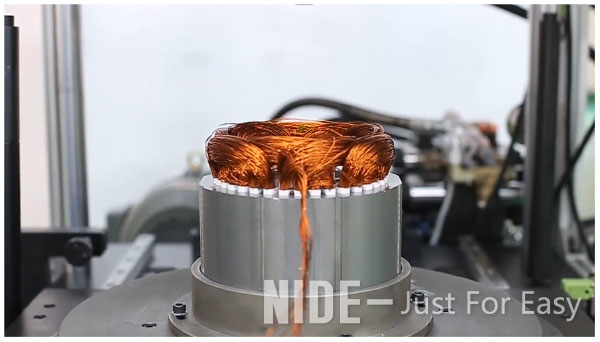

automatic stator coil forming machine

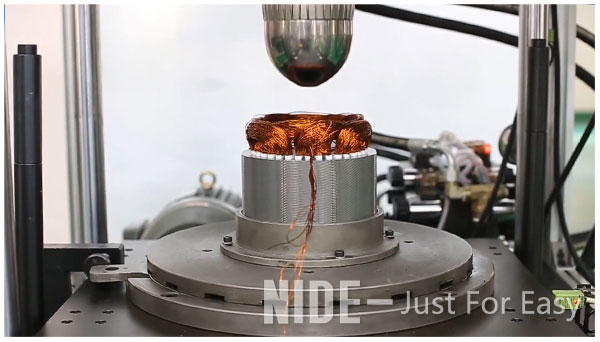

automatic motor stator coil forming machine

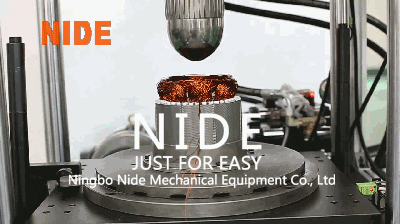

Stator coil forming machine video
