High Efficiency Automation Coil Rolling Machine / Equipment For Stator Winding

Categories Coil Forming Machine
Place of Origin: China
Brand Name: Nide
Certification: None
Model Number: Z3XL1-150-160B
MOQ: 1 set
Price: Negotiable
Packaging Details: Wooden case suitable for sea transportation
Delivery Time: 35 working days
Payment Terms: T/T, L/C
Supply Ability: 400 sets per year
Machine color: RAL9010
Customized service: Available
Condition: New
After-Sales Service: Overseas Service Center Available
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

High Efficiency Automation Coil Rolling Machine / Equipment For Stator Winding


High Efficiency Automation Coil Rolling Machine / Equipment For Stator Winding


Quick Detail:


1. Model No.: Z3XL1-150-160B.
2. This machine is used for stator winding final forming,
3. it is driven by the hydraulic system
4. It is controlled by the PLC.
5. It is of highly efficiency and qualified forming.


Technical parameter:

Stator I.D

80~120mm

Stator O.D

≤200mm

Stack height

20~160mm

Displacement of cylinder

20L

Power supply

380V/50/60Hz 1.5KW

Weight

1000Kg

Dimension

1600*1000*2300mm


Description:

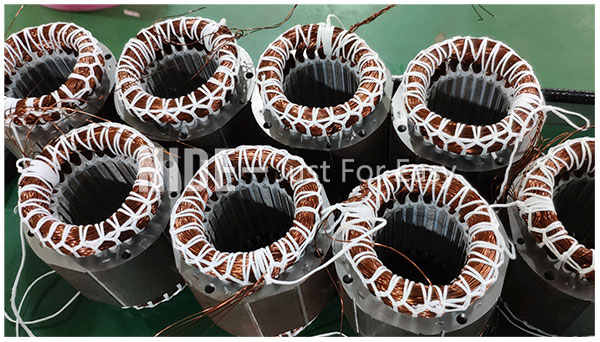

Enter and Exit Station Final Forming Machine is used for stator winding final forming, it is driven by the hydraulic system, controlled by the PLC. Its inward and outward movable station is much convenient for the big motor stator. Its forming is perfectly done by inner expansion,outer wrapping and overhanging pressing. Individual guard teeth fully settles field wire and jump wire to ensure the reliability of electrical leakage distance. It is of highly efficiency and qualified forming. High technology, stable performance and reasonable price.

Required information for quotation: stator drawing before forming and after forming, including stator O.D, stator I.D, stator stack height, and end coil dimension.

Competitive advantages:

It is of highly efficiency and qualified forming. High technology, stable performance and reasonable price.


Fully-automatic-induction-motor-stator-winding-forming-machinery-supplier91


Cheap High Efficiency Automation Coil Rolling Machine / Equipment For Stator Winding for sale
