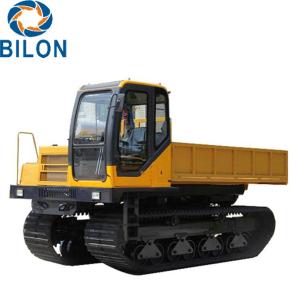

Stable Running Garden Crawler Dump Truck 10 Ton Diesel Fuel Type Mini Dumper Truck

Categories Crawler Dump Truck
Brand Name: Bilon
Certification: CE
Place of Origin: China
MOQ: 1 pc
Price: Negotiation
Payment Terms: L/C, T/T
Supply Ability: 1000pcs
Delivery Time: 15 days

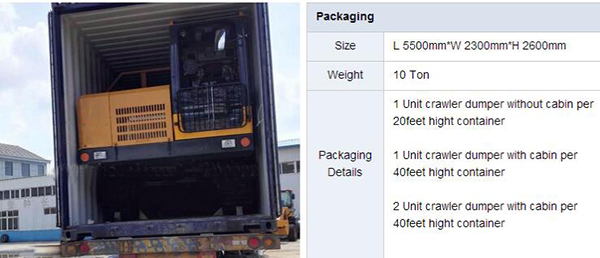

Packaging Details: separate packing in wooden case and nude packing together in container
Rated Load: 10000kg
Dimension(Long * Breadth * High): 5500*2300*2600
overall weight: 16000kg
rated power: 136hp
Engine Capacity: 4 - 6L
Fuel Type: Diesel
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Stable Running Garden Crawler Dump Truck 10 Ton Diesel Fuel Type Mini Dumper Truck

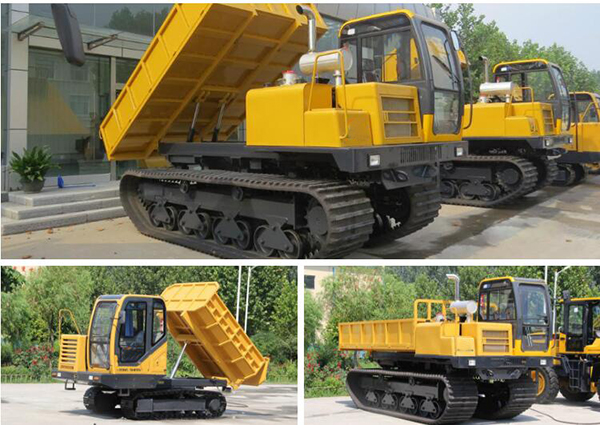

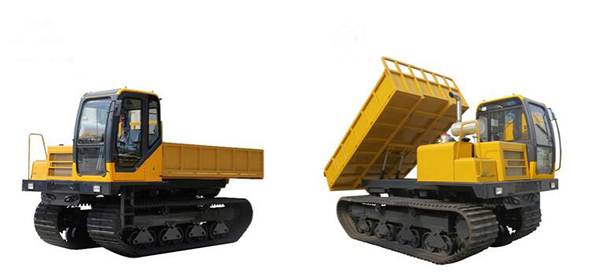

10 Ton Garden Transporter Crawler Mini Dumper Truck

Crawler Dumper is a frequently-used of special track vehicle , it is widely used in agriculture, minerals, water conservancy and other large and medium-sized projects for earth, rock, coal and other displacement work. Crawler transport vehicles according to their product rated capacity (load capacity) can be divided into light crawler and heavy-duty crawler.

Main Features

1. Transport vehicles can operate freely in mud and icy roads
2. Self-unloading design, tracked walking, motor walking, greatly extended the use ability.
3. The specific size can be customized according to the requirements
4. Strong carrying capacity, large climbing ability, simple operation and easy maintenance.



Operating weight
Kg
16000
Rated load
Kg
10000
Engine Brand
Weichai or Cummins
Engine Model
6105 or 6BT5.9-C130

Engine Power
100Kw/2200rpm
Cargo box Length
mm
3600
Cargo box Width
mm
2500
Cargo box Height
mm
600 or more
Track Width
mm
500
Track Length
mm
2560
Min. ground clearance
mm
400
System pressure
Mpa
31.5
Max. Flux
L/min
2*180
Speed
Km/h
7
Dumper Length
mm
5500
Dumper Width
mm
2300
Dumper Height
mm
2600
