HOWO 6*4 10 Crawler Dump Truck 41000kg Tires Tipper Truck For African Market

Categories Crawler Dump Truck
Brand Name: Bilon
Certification: CE
Place of Origin: China
MOQ: 1 pc
Price: Negotiation
Payment Terms: L/C, T/T
Supply Ability: 1000pcs
Delivery Time: 15 days
Packaging Details: separate packing in wooden case and nude packing together in container
Drive Wheel: 6x4
Dimensions: 4800x2300x1200
Horsepower: 266 hp
Fuel Type: Diesel
Thickness of Body: Floor 8 / 10 mm
Gross Vehicle Weight: 41000kgs
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

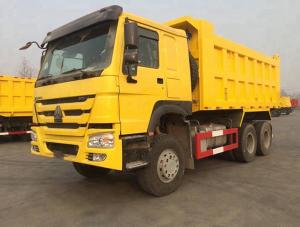

HOWO 6*4 10 Crawler Dump Truck 41000kg Tires Tipper Truck For African Market

HOWO 6*4 10 Tires Tipper Truck For Africa


Single sleeper, all-steel forward control, 70° hydraulically tillable to the front, 2-arm windshield wiper system with three speeds,laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, exterior sun visor, adjustable roof flap, stereo ratio/cassette recorder, safety belts, adjustable steering wheel, air horn, airconditioner, with 4-point support fully floating suspension and shock absorbers.


EngineModel615.62615.87615.69W15.47
Power266 hp290 hp336 hp371 hp
KW/rpm196/2200213/2200247/2200273/2200
Displacement9.726 L
TransmissionHW13710/HW19710 ( 10 forward , 2 reverse , with direct connect PTO )
Front AxleHR9 (Drum Braking) Max.loading:9000 kg
Rear AxleHC16 (Drum Braking) Max.loading:16000 * 2 kg Ratio : 4.8/5.73
SteeringZF8118,hydraulic steering with power assistance
Braking SystemService brake: dual circuit compressed air brake
Parking brake:spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust brake
Electrical SystemOperating voltage:24 V, negative grounded
Starter:24 V,5.4Kw
Alternator:3-phtase,28 V,758 W
Batteries:2×12 V,135Ah
Cigar-lighter, horn, headlamps, fog lights, indicators and reverse light
Wheel TyreTyres: 12.00R20 raidial tyreOption: 315/80R22.5,295/80R22.5,12.00-20
Body Dimension(mm)4800x2300x12005200x2300x14005600x2300x14005800x2300x1400
Body Shaperectangle shape/ U shape / volve shape / mining body
Hydraulic Cylinderventral tipping / front tipping
Thickness of BodyFloor 8 / 10 mmSide 8 / 6 / 4 mm

Cheap HOWO 6*4 10 Crawler Dump Truck 41000kg Tires Tipper Truck For African Market for sale
