50 Ton Diesel Fuel Type Articulated Dump Truck 50 Ton With Drive Wheel 6*4

Categories Crawler Dump Truck
Brand Name: Bilon
Certification: CE
Place of Origin: China
MOQ: 1 pc
Price: Negotiation
Payment Terms: L/C, T/T
Supply Ability: 1000pcs
Delivery Time: 15 days
Packaging Details: separate packing in wooden case and nude packing together in container
Drive Wheel: 6x4
Capacity (Load): 61 - 70t
Horsepower: 351 - 450hp
Fuel Type: Diesel
Engine Capacity: > 8L
Gross Vehicle Weight: 73000
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

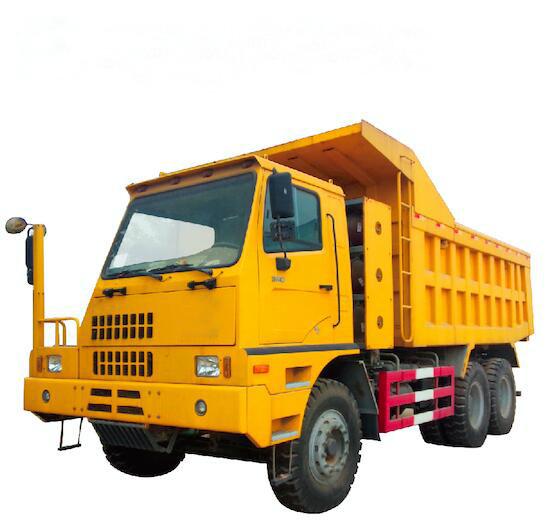

50 Ton Diesel Fuel Type Articulated Dump Truck 50 Ton With Drive Wheel 6*4

50 Ton Dump Trucks


Drive wheel 6*4, tipper ,our new product, populer in Myanmar market, mainly used for mine, still mill, hydroelectric power, port and overload climbing, downgrade working conditions. It is really the ideal construction helper.

Howo 50T/70T Mining dump truck 6*4 for sale
Large-sectioned middle and rear axle


Sale codeHV7/336/K34/6× 4DHV7/336/K36/6× 4D
Size parametersOverall dimension(mm)Rectangular box7760× 3000× 34258060× 3000× 3425
Mining box7960× 3000× 34258260× 3000× 3425
Dimension in container(mm)Rectangular box5100× 2800× 15005400× 2800× 1500
Mining box5300× 2800× 15005600× 2800× 1500
Wheelbase(mm)3400+14003600+1400
Front/rear overhang(mm)1500/14601500/1560
Min. ground clearance(mm)270 (Front axle)
Approach/departure angle(° )25/32.528/32.5
Weight parametersTotal weight/Max. rated contained quality(kg)10500/50000
Performance parametersMax. speed(km/h)/Max. gradeability(%)85/69/34/41
EngineModeWD615.95
Rated engine power(kw/rpm)247/2200
Max. torque(N. m/r/min)1350/1100~1600
Fuel-rate(g/kw. h)192
Clutch430 diaphragm spring clutch A-type
GearboxModeHW18710
Ratio14.28 10.62 7.87 5.88 4.38 3.27 2.43 1.8 1.34 1.00 13.91(R1) 3.18(R2)
CabHOVA cab, double hydraulic lock, max. angle 50°
Tire13.00-20 (Option: 14.00-20-20 )
Brake systemDriving brake: dual circuit brake; Parking brake: spring energy air cut brake; Assist brake: engine exhaust brake
Electric systemsingle line, 24V minus earth
Fuel tank400L
