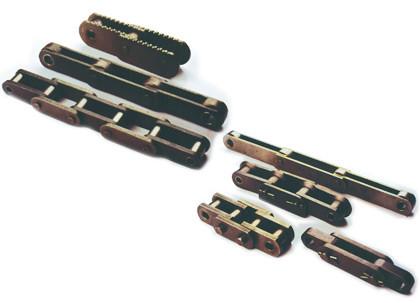

M Series Standard Roller Chain Four Types Lumber Conveyor Chain

Contact Now

Add to Cart

Company Info.

ZHENJIANG FRESH MARINE SUPPLY CO.,LTD

View Contact Details

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

M- series conveyor chain includes four types and the main specification is M28,M40,M56,M112,M160 etc.

M-series conveyor chain

Chain No.	Ultimate Tensile Strength (Kn)	Pitch P mm	Width Between Inner Plate B1 min mm	Pin Dimension d2 max mm	Pin Length L Max mm	Plate Thickness T Max mm	Plate Depth h2 max mm	Bush Diameter D4 max mm	Roller Diameter
									D7 Max mm	D1 Max mm	D5 Max mm
M20	20	40	16.0	6.0	35.0	2.5	19.0	9.0	12.5	25.0		32.0
		50
		63
		80
		100
		125
		160
M28	28	50	18.0	7.0	40.0	3.0	21.0	10.0	15.0	30.0		36.0
		63
		80
		100
		125
		160
		200
M40	40	63	20.0	8.5	45.0	3.5	26.0	12.5	18.0	36.0		42.0
		80
		100
		125
		160
		200
		250
M56	56	63	24.0	10.0	52.0	4.0	31.0	15.0	21.0	42.0		50.0
		80
		100
		125
		160
		200
		250
M80	80	80	28.0	12.0	62.0	5.0	36.0	18.0	25.0	50.0		60.0
		100
		125
		160
		200
		250
		315
M112	112	80	32.0	15.0	73.0	6.0	41.0	21.0	30.0	60.0		70.0
		100
		125
		160
		200
		250
		315
		400
M160	160	100	37.0	18.0	85.0	7.0	51.0	25.0	36.0	70.0		85.0
		125
		160
		200
		250
		315
		400
		500
M224	224	125	43.0	21.0	98.0	8.0	62.0	30.0	42.0	85.0		100.0
		160
		200
		250
		315
		400
		500
		630
M315	315	160	48.0	25.0	112.0	10.0	72.0	36.0	50.0	100.0		120.0
		200
		250
		315
		400
		500
		630
M450	450	200	56.0	30.0	135.0	12.0	82.0	42.0	60.0	120.0		140.0
		250
		315
		400
		500
		630
		800
