| Categories | Standard Roller Chain |
|---|---|
| Brand Name: | FRESH CHAIN |
| Place of Origin: | ZHENJIANG |
| MOQ: | 100METERS |
| Packaging Details: | WOODEN PACKAGE |

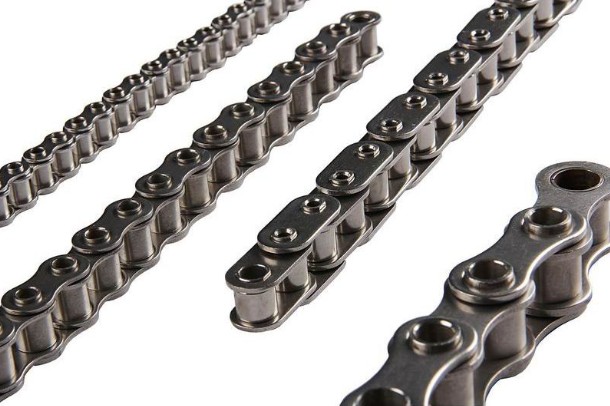

For food handling conveyors, Hollow Pin Chains are available in ANSI standard short pitch series (40HP - 80HP),
double pitch series with
standard rollers (C2040HP - C2080HP), and large rollers (C2042HP - C2082HP).
Attachments or cross-rods can be inserted at any desired spacing,
which provided great design versatility. Changes can be made
without removing the chain from the conveyor. Our Hollow pin chains
are as following items:
1. Hollow pin conveyor chains(MC series)
2. Hollow pin conveyor chains(FVC series)
3. Non-standard hollow pin conveyor chains
4. Hollow pin conveyor chains(ZC series)
5. Hollow pin chains
6. Stainless steel hollow pin chains

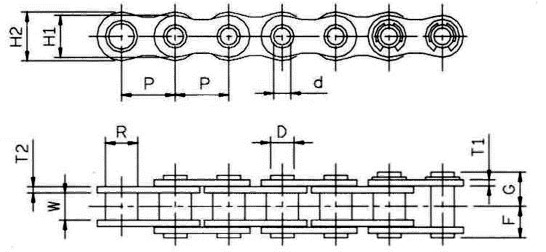

| CHAIN NO. (ANSI) | Pitch | Width | Roller | Plate | Pin | Average Ultimate Strength kgf | Approx Weight kg/m | |||||||
| P | W | Dia | Height | Thickness | Dia | Lengths | ||||||||
| inch | mm | mm | R | H1 | H2 | T1 | T2 | D | d(min) | F | G | |||
| 40HP | 1/2" | 12.70 | 7.94 | 7.92 | 10.20 | 11.80 | 1.50 | 1.50 | 5.58 | 4.00 | 7.90 | 9.4 | 1300 | 0.5 |
| 50HP | 5/8" | 15.875 | 9.53 | 10.16 | 13.00 | 14.80 | 2.00 | 2.00 | 7.01 | 5.12 | 9.90 | 11.65 | 2000 | 0.8 |
| 60HP | 3/4" | 19.05 | 12.70 | 11.91 | 15.50 | 17.50 | 2.40 | 2.40 | 8.12 | 5.99 | 12.40 | 14.25 | 3050 | 1.18 |
| 80HP | 1" | 25.40 | 15.88 | 15.88 | 20.80 | 24.00 | 3.10 | 3.10 | 11.27 | 8.02 | 16.30 | 17.75 | 5800 | 2.10 |
| 08BHP | 1/2" | 12.70 | 7.75 | 8.51 | 10.60 | 11.80 | 1.50 | 1.50 | 6.11 | 4.50 | 8.20 | 9.30 | 1500 | 0.63 |

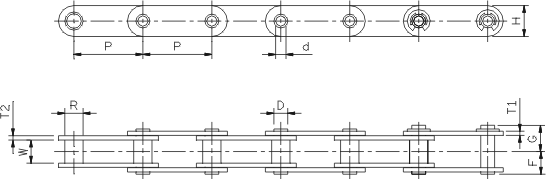

DOUBLE PITCH HOLLOW PIN CHAIN
| CHAIN NO. (ANSI) | Pitch | Width | Roller | Plate | Pin | Average Ultimate Strength kgf | Approx Weight kg/m | ||||||
| P | W | Dia | Height | Thickness | Dia | Lengths | |||||||
| inch | mm | mm | R | H | T1 | T2 | D | d(min) | F | G | |||
| C2040HP | 1" | 25.40 | 7.94 | 7.92 | 11.70 | 1.50 | 1.50 | 5.58 | 4.00 | 7.90 | 9.40 | 1300 | 0.45 |
| C2050HP | 1-1/4" | 31.75 | 9.53 | 10.16 | 14.60 | 2.00 | 2.00 | 7.01 | 5.12 | 9.90 | 11.65 | 2000 | 0.74 |
| C2060HP | 1-1/2" | 38.10 | 12.70 | 11.91 | 17.10 | 2.40 | 2.40 | 8.12 | 5.99 | 12.40 | 14.25 | 3050 | 1.10 |
| C2080HP | 2" | 50.80 | 15.88 | 15.88 | 23.00 | 3.10 | 3.10 | 11.27 | 8.02 | 16.30 | 17.75 | 5800 | 1.95 |

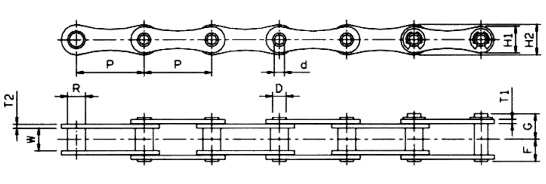

| CHAIN NO. (ANSI) | Pitch | Width | Roller | Plate | Pin | Average Ultimate Strength kgf | Approx Weight kg/m | |||||||
| P | W | Dia | Height | Thickness | Dia | Lengths | ||||||||
| inch | mm | mm | R | H1 | H2 | T1 | T2 | D | d(min) | F | G | |||
| A2040HP | 1" | 25.40 | 7.94 | 7.92 | 10.10 | 11.70 | 1.50 | 1.50 | 5.58 | 4.00 | 7.90 | 9.40 | 1300 | 0.43 |
| A2050HP | 1-1/4" | 31.75 | 9.53 | 10.16 | 12.60 | 14.60 | 2.00 | 2.00 | 7.01 | 5.12 | 9.90 | 11.65 | 2000 | 0.72 |
HP chain standard is rollerless,R indicates bushing diameter.
|
