A Series Standard Roller Chain Short Pitch Precision Roller Chain

A Series Standard Roller Chain Short Pitch Precision Roller Chain

ANSI Standard Short Pitch Power Transmission Roller Chains are the most popular chains for driving, transmission reduction, tension, shuttle traction, and other applications. ANSI standard roller chains are produced according to with ISO 606A, ANSI B29.1M and DIN 8188 from high quality steel and incorporated with latest manufacturing technologies. Products are available from pitch size 6.35 to 76.2 mm in single,multiple and triple strands, riveted or cottered.

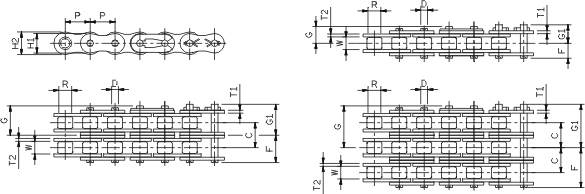

Short pitch precision roller chain

CHAIN NO.	Pitch		Width	Roller	Plate				Pin				Transverse Pitch	Average Ultimate Strength kgf	Approx Weight kg/m
	P		W	Dia	Height		Thickness		Dia	Lengths			Transverse Pitch
	inch	mm	mm	R	H1	H2	T1	T2	D	F	G	G1	C
25-1	1/4"	6.35	3.18	3.30	5.00	5.80	0.75	0.75	2.30	3.80	4.80	---	---	450	0.14
25-2	1/4"	6.35	3.18	3.30	5.00	5.80	0.75	0.75	2.30	7.03	8.02	---	6.40	900	0.26
25-3	1/4"	6.35	3.18	3.30	5.00	5.80	0.75	0.75	2.30	10.20	11.20	---	6.40	1350	0.40
35-1	3/8"	9.525	4.76	5.08	7.60	9.00	1.20	1.20	3.59	5.80	7.00	7.60	---	1050	0.33
35-2	3/8"	9.525	4.76	5.08	7.60	9.00	1.20	1.20	3.59	10.80	12.00	12.70	10.10	2100	0.69
35-3	3/8"	9.525	4.76	5.08	7.60	9.00	1.20	1.20	3.59	15.90	17.10	17.40	10.10	3150	1.05
41	1/2"	12.70	6.35	7.77	8.50	9.70	1.20	1.20	3.58	6.60	7.95	8.50	---	1200	0.41
40-1	1/2"	12.70	7.94	7.92	10.20	11.80	1.50	1.50	3.96	8.20	9.35	10.00	---	1850	0.63
40-2	1/2"	12.70	7.94	7.92	10.20	11.80	1.50	1.50	3.96	15.30	17.00	17.60	14.40	3700	1.19
40-3	1/2"	12.70	7.94	7.92	10.20	11.80	1.50	1.50	3.96	22.65	23.80	24.55	14.40	5550	1.77
50-1	5/8"	15.875	9.53	10.16	13.00	14.80	2.00	2.00	5.06	10.10	11.65	12.60	---	3100	1.01
50-2	5/8"	15.875	9.53	10.16	13.00	14.80	2.00	2.00	5.06	19.20	20.70	21.10	18.10	6200	2.04
50-3	5/8"	15.875	9.53	10.16	13.00	14.80	2.00	2.00	5.06	28.30	29.65	30.20	18.10	9300	3.05
60-1	3/4"	19.05	12.70	11.91	15.50	17.50	2.40	2.40	5.95	12.50	14.15	15.40	---	4400	1.44
60-2	3/4"	19.05	12.70	11.91	15.50	17.50	2.40	2.40	5.95	24.00	25.50	26.90	22.80	8800	3.03
60-3	3/4"	19.05	12.70	11.91	15.50	17.50	2.40	2.40	5.95	35.35	36.95	37.65	22.80	13200	4.50
80-1	1"	25.40	15.88	15.88	20.40	24.00	3.10	3.10	7.94	16.10	17.75	18.80	---	7800	2.40
80-2	1"	25.40	15.88	15.88	20.40	24.00	3.10	3.10	7.94	30.60	32.20	33.60	29.30	15600	5.26
80-3	1"	25.40	15.88	15.88	20.40	24.00	3.10	3.10	7.94	45.30	47.00	48.00	29.30	23400	7.80
100-1	1-1/4"	31.75	19.05	19.05	24.80	30.10	3.90	3.90	9.52	20.10	---	23.10	---	11800	3.74
100-2	1-1/4"	31.75	19.05	19.05	24.80	30.10	3.90	3.90	9.52	38.00	---	41.00	35.80	23600	7.51
100-3	1-1/4"	31.75	19.05	19.05	24.80	30.10	3.90	3.90	9.52	55.90	---	58.90	35.80	35400	11.20
120-1	1-1/2"	38.10	25.40	22.23	30.00	35.00	4.70	4.70	11.10	25.20	---	28.60	---	15500	6.18
120-2	1-1/2"	38.10	25.40	22.23	30.00	35.00	4.70	4.70	11.10	47.90	---	51.30	45.40	31000	12.25
120-3	1-1/2"	38.10	25.40	22.23	30.00	35.00	4.70	4.70	11.10	70.60	---	74.00	45.40	46500	18.30
140-1	1-3/4"	44.45	25.40	25.40	36.20	42.00	5.60	5.60	12.70	27.30	---	31.50	---	21500	7.49
140-2	1-3/4"	44.45	25.40	25.40	36.20	42.00	5.60	5.60	12.70	51.75	---	55.75	48.90	43000	14.83
140-3	1-3/4"	44.45	25.40	25.40	36.20	42.00	5.60	5.60	12.70	76.20	---	80.40	48.90	64500	22.20
160-1	2"	50.80	31.75	28.58	41.40	48.00	6.40	6.40	14.28	32.55	---	37.25	---	27500	10.10
160-2	2"	50.80	31.75	28.58	41.40	48.00	6.40	6.40	14.28	61.80	---	66.50	58.50	55000	20.04
160-3	2"	50.80	31.75	28.58	41.40	48.00	6.40	6.40	14.28	91.05	---	95.75	58.50	82500	30.02
180-1	2-1/4"	57.15	35.71	35.71	46.70	54.20	7.20	7.20	17.45	36.50	---	42.20	---	36000	13.40
180-2	2-1/4"	57.15	35.71	35.71	46.70	54.20	7.20	7.20	17.45	69.42	---	75.12	65.84	72000	26.20
180-3	2-1/4"	57.15	35.71	35.71	46.70	54.20	7.20	7.20	17.45	102.34	---	108.04	65.84	108000	38.10
200-1	2-1/2"	63.50	38.10	39.68	51.80	60.10	8.00	8.00	19.84	39.75	---	47.10	---	46000	16.5
200-2	2-1/2"	63.50	38.10	39.68	51.80	60.10	8.00	8.00	19.84	75.55	---	82.85	71.60	92000	32.7
200-3	2-1/2"	63.50	38.10	39.68	51.80	60.10	8.00	8.00	19.84	111.35	---	118.65	71.60	138000	49.05
240-1	3"	76.20	47.63	47.60	62.40	72.20	9.50	9.50	23.80	47.70	---	54.80	---	68500	24.2
240-2	3"	76.20	47.63	47.60	62.40	72.20	9.50	9.50	23.80	91.60	---	98.70	87.80	137000	47.8
240-3	3"	76.20	47.63	47.60	62.40	72.20	9.50	9.50	23.80	135.50	---	142.60	87.80	205500	71.1

1. To suit specific working conditions, the following versions are also available: bushed chain (with the omission of rollers), straight linkplate chain, heavy-duty chain, super strength chain, stainless steel chain, nickel-plated chain, zinc-plated chain, copper-plated chain, dacrotised chain, hollow pin chain, side bow chain, o-ring chain,and engineering plastic chain.

2. Unless cottered construction chains are requested, products are supplied in riveted construction. Please note the above multiple strand roller chains should not be used as oil field chains. For oil field roller chains, please inform us.

3. Unless otherwise requested, all ANSI Standard Roller Chains are packed in 3.048 meter (10 feet) per length including one connecting link. Offset links are used for adjust chain length. When used for perform power transmission at high speed or heavy-duty power transmission, two-pitch offset links (one inner link and one offset link) are recommended.
