Continuous Bright Annealing Furnace For Metal Materials With Protective Atmosphere Device

Categories Industrial Furnace Equipment
Brand Name: Star Power
Model Number: RC20-50
Certification: CU,ISO
Place of Origin: Guangdong, China
MOQ: 1 set
Price: Negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Set/Sets per Month
Delivery Time: 1-2 month
Packaging Details: metal frame with film
Rated Voltage: 380V*3
Heating Zone No: 5
Rated Power: 150KW
Heating Zone(L*W*H): 4500*500*200
Rated Temo: 1150 ℃
Temp.Rising Time: ≤5h
Empty Consumption: 45KW
Ammonia Decomposition Power: 24 KW
Decomposition Capacity: 15m³/h
Output: 280 kg/h
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Continuous Bright Annealing Furnace For Metal Materials With Protective Atmosphere Device

Continuous bright annealing furnace
Usage: Used for continuous bright annealing of copper straight pipes (rods), steel pipes, aluminum pipes or coils of different specifications under controlled atmosphere.
Features: The workpiece is continuously preheated, heated, insulated, slowly cooled, and cooled without being limited by length. The transmission adopts roller synchronous transmission, variable frequency speed regulation, and is stable and reliable. A hot atmosphere cycle that protects the atmosphere, with uniform temperature and very bright inner and outer surfaces. The unique design of the cooling zone ensures uniform cooling of the workpiece. The processed products have bright inner and outer surfaces, high product quality, and high productivity.
Heating method: Electric heating or gas heating.
Production line composition: front roller conveyor material platform, front air exchange chamber, front preheating zone, heating furnace, slow cooling zone, cooling zone (including transition zone and strong wind cooling zone), rear air exchange chamber (including water cooling zone), rear roller conveyor material system, computer control system, electrical control system, and protective atmosphere device.
Bell type bright annealing furnace.

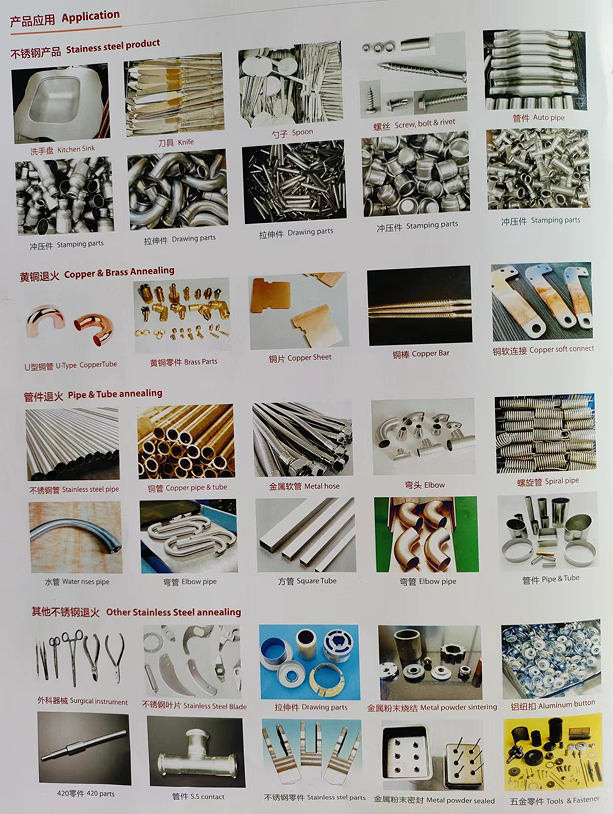

Application:




Characteristic:
●Adoptfor heat-resistance stainless steel belt or mesh belt transmit the heat treatment workpieces to pass through heating zone and colingzoneAndinjectinsert gas or gas ammonia decomposition as a protective atmosphere to prevent and avoid the workpiece oxidation in the processafheatingand cooling, to ensure the brazing surface brightness, no oxidation, no scratches and welding line satiation

●Fumacehearth(i.e.hearting zone or muffle) adopt for imported Sweden heat-resisting temperature nickel metal 310S) to ensure thattheworkprietemperature come down to technical requirement when outlet.

●Withreasonable structure ofheating, uniform furnace temperature, workpiece on the conveyo belt running smoothly, lit deformation. Fumaehearth sze Canbe acroding to customer's dif size of the product and production design and manufacturing, with a strong specificity and generality.

●Channelfurnace overall appearance is "bridge" structure, front back inlet and outlet chamber using high quality materials into intermediate sandwichpipe body;The front and back working face with horizontal line to be a certain angle, the angle designis6 ' . lts advantages to saving protectiveatmosphere consumption, reduce the production cost.

●Adopts advanced frequency control of motor speed conveyor belt control system, realize the stepless variable speed drive of components, preciselycontrolthe workpiece in the running time of the heating zoen, ensure the aluminum brazing process curve accurate implementation.

● Equipped with modem energy saving type ammonia decomposition funace.

Thchnical Parameters:


Specifications:

Description
Continuous gas shielded aluminum brazing furnace equipment
Automatic constant temperature control
Advantage: safe operation.
Operator: 1 person.
Rated Power(KW)150
Rated Voltage(V)380x3
Working Temperature(℃)1150
Effective Cooling Length (MM)18000
Heating up time(h) ≤5
Empty furnace loss power (KW)45
Output (kg/h)280
Decomposition power (KW)24
Decomposition capacity (m ³/h)15
Heating size (L*W*H) mm4500x500x200
