Categories | Plastic Crushing Recycling Production Line |
---|---|
Brand Name: | TONTEN |
Model Number: | TT-LR300 |
Place of Origin: | China |
MOQ: | 1 Set |
Price: | Negotiable |
Payment Terms: | T/T |
Supply Ability: | 80 sets per month |
Delivery Time: | 5-7 working days |
Packaging Details: | standard international export packing, container or as required |
Rotor Diemeter: | 710mm |
Roller Length: | 6000mm |
Main Power: | 30kw |
Label suction fan power: | 2x4kw |
Label Seaparation Rate: | 99% |
Blade quantity: | 96pcs |
material: | Plastic,Beverage Bottle |
machine type: | Label Removal,Label Separation Machine |
Company Info. |
TONTEN MACHINERY LIMITED |
Verified Supplier |
View Contact Details |
Product List |
Plastic Label Removal Machine Beverage Bottle Label Separation Machine

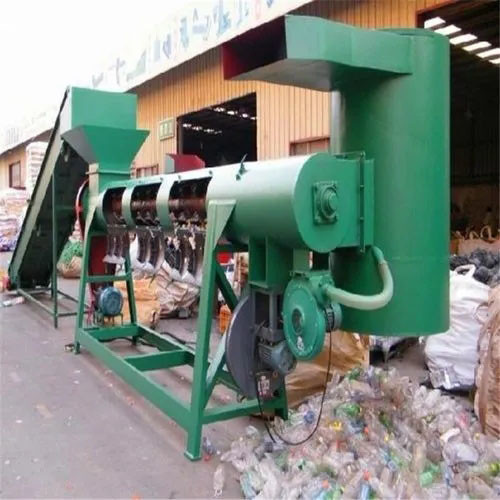

Label removal machine introduction:
Label stripping removal machine is used to remove labels from
beverage bottles, mineral water bottles, milk bottles, juice
bottles, PET bottles and other plastic bottles before crushing and
cleaning. The TONTEN machinery label removal machine is driven by
an electric motor, the speed is adjusted by a pulley, and the main
shaft is equipped with a uniquely designed blade. The plastic
bottle is driven forward in the working room by the main shaft
blade, and the blade cuts the label and separates it from the
plastic bottle. The label stripping machine can peel off the label
paper on various types of PET bottles, and at the same time, it can
initially rinse the attached mud and dirt, and secondly, it can
also remove some PP bottle caps.
Advantages:
1. The blade of the label stripper is optimized and designed to be
more wear-resistant, corrosion-resistant and fatigue-resistant,
which can reduce cutting resistance, reduce power consumption, and
improve cutting speed and efficiency. The special geometric shape
and tool structure of the label stripper blade also make it more
durable, reduce blade wear and extend the life of the blade
2. Label stripper can quickly complete tedious, repetitive and
inefficient label removal tasks, and precise and efficient
operation can also reduce the cost of label removal.
3. Compared with manual operation, the label stripper has higher
operating accuracy and more precise label removal process, which
can ensure product quality and label applicability.
4. The unique design of the label stripper blade can improve the
cutting accuracy and flatness, thereby improving the quality of the
product. The structural design of the blade makes the cutting
surface smoother and reduces burrs and cracks on the cutting
surface. The efficient cutting ability of the blade and the long
life of the blade can also improve production efficiency and reduce
the production cost per unit product.
Specification:
Model | TT-LR800 | TT-LR110 | TT-LR150 | TT-LR200 | TT-LR300 |
Rotor diemeter | 600mm | 600mm | 600mm | 600mm | 710mm |
Roller length | 3500mm | 3500mm | 4500mm | 4500m | 6000mm |
Motor power | 7.5kw | 8.5kw | 12kw | 18kw | 22kw |
Suction fan power | 4kw | 4kw | 3.6kwx2 | 4kwx2 | 4kwx2 |
label scraping power | 1.1kw | 1.1kw | 1.1kwx2 | 1.1kwx2 | 1.5kwx2 |
Seaparation rate | 99% | 99% | 99% | 99% | 99% |
Blade quantity | 68PCS | 68PCS | 96PCS | 96PCS | 96PCS |
![]() |
