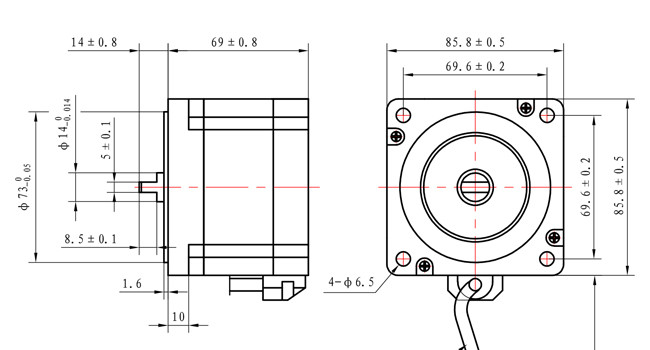

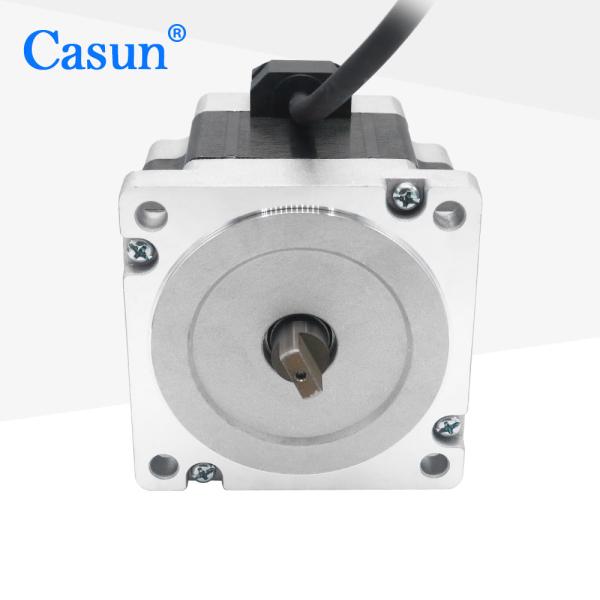

Nema 34 Bipolar Stepper Motor 86*86*69mm 4.0A For CNC Engraving Machine

NEMA 34 motors have a larger volume and heavier rotor, which can provide higher torque without sacrificing speed.

Suitable for occasions that require large starting and operating torque, such as heavy machinery or automation equipment.

Features:

• Bipolar or unipolar versions available

• Enjoy a ten-year warranty and purchase with confidenc

• We provide tailored services and welcome contract-based production

• With 12 years of experience in China, we have served over 800 customers

• Our products deliver exceptional torque and precision

Motor Specifications

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

Please click the "Get a quote" button below to tell us your requirements.
