Nema 34 Bipolar 1.8 Deg Stepping Motor 86x86x76mm 4N.m 4 Wires For Printing Machine

Categories NEMA 34 Stepper Motor
Brand Name: Casun
Model Number: 86SHD4114-37
Certification: CE,ROSH,ISO
Place of Origin: CHINA
MOQ: 1PC
Price: $24.92-$25.96
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Delivery Time: 7-15 days
Packaging Details: Carton:36x29x14cm
Step angel: 1.8°
Holding Torque: 4.0N.m
Current: 4.0A
Motor Length: 76mm
Shaft: Keyway shaft 37mm Length
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Nema 34 Bipolar 1.8 Deg Stepping Motor 86x86x76mm 4N.m 4 Wires For Printing Machine

NEMA 34 stepper motors can quickly respond to control signals and are suitable for situations that require rapid action.

The driving circuit of a stepper motor is relatively simple, easy to design and maintain.


Features:

  • Bipolar or unipolar versions available

  • Enjoy a ten-year warranty and purchase with confidenc

  • We provide tailored services and welcome contract-based production

  • High torque and precision guaranteed

  • Our engineers will contact you within 48 hours to provide the optimal solution

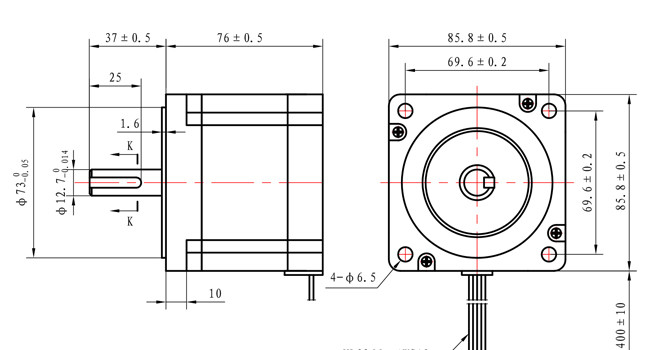

Dimensions


Motor Specifications

Step Angel


1.8 °

Fram Size


86 mm

Number of Phase


2 Phase

Rated Current


4.0 A

Holding Torque


4.0N.m

Resistance


0.62ohm

Inductance


3.5mH

Rotor Inertia


1000 g-cm²

Motor weight


2.3 kg

Number of leads


4

Connection


Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min


Torque Curves


Submodels


ModelHolding TorqueStep AngleLengthType of ShaftRated Current
86SHD4003-324.0N.m1.8°69mmKey Shaft-32mm4.0A
86SHD4101-324.5N.m1.8°76mmKey Shaft-32mm4.0A
86SHD4201-375.6N.m1.8°98mmKey Shaft-37mm4.0A
86SHD4314-376.8N.m1.8°112mmKey Shaft-37mm5.0A
86SHD4404-378.0N.m1.8°127mmKey Shaft-37mm5.0A
86SHD4505-3712.0N.m1.8°150mmKey Shaft-37mm5.5A

Download


If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft


Please click the "Get a quote" button below to tell us your requirements.
