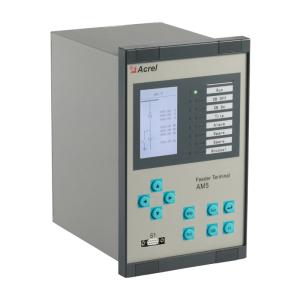

AM5 Series Protection Relay

AM5 Series Protection Relay

● A complete set of protection, related to the application;

● 8 current input, 4 voltage input, 16 DI, 10 DO;

● Auxiliary power supply adapts with AC220V, DC220V, DC110V, AC110V;

● 2 RS485 serial communication, IEC 60870-5-101, IEC60870-5-103 and Modbus-RTU;

● 1 RS232 for user update;

● 1 GPS for GPS timing;

● More than 200 sequence of event records, more than 400 system logs, and more than 10 seconds tripping context records;

● Powerful graphic programmable Logic.

Parameters

Auxiliary power supply	Rated input	AC220V/DC220V, DC110V, DC48V
	Range	Rated Voltagex (1±20%)
	Power consumption	≤10W (DC)
Rated Voltage	Rated input	AC 100V/100V
	Range	1-120V
	Accuracy	±0.5%
	Power consumption	0.5VA (single phase)
Rated Current	Rated input	AC 5A/1A
	Range	0.04ln 〜15ln
	Accuracy	±0.5%
	Power consumption	0.5VA (single phase)
Frequency DI	Rated frequency	50Hz or 60Hz
	Range	45〜55Hz or 60Hz
	Accuracy	±0.1 Hz
	Rated Voltage	AC220V/DC220V, DC110V, DC48V
	Range	Rated Voltagex (1±20%)
	Power consumption	S1W (DC220V) single DI
DO	Mechanical life	N10000
	Switching capacity	N1000W, L/R = 40ms
	On current	Continuous N5A, short time (200ms) N30A
	Interrupting capacity	N30W, L/R = 40ms
Environment	Temperature	‘-10℃ ~ +55℃
	Humidity	5%〜95% (No condensation and freeze inside)
	Altitude	4000m
Insulating property	Insulation resistance	>100MQ, 500Vdc
	Dielectric strength	Power frequency voltage withstand 2kV
	Impulse voltage	±5kV (1.2/50Ws, 0.5J)

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	Jiangsu Acrel Electrical Manufacturing Co., LTD.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Motor Management Relay
Brand Name:	ACREL
Model Number:	AM5 Series
Certification:	CE CCC ISO9000
Place of Origin:	Jiangsu, China
MOQ:	1
Price:	USD15-35PCS
Payment Terms:	T/T
Delivery Time:	5-8 work days
Packaging Details:	Single package size: 10X10X10cm; Single gross weight:10.000 kg; Package Type: carton box
