ISO RS485 communication Smart Motor Protector / Motor Protection Device

General

ARD series intelligent motor protector (hereinafter referred to as protector) can perform various conditions such as start timeout, overload, phase failure, unbalance, underload, ground/leakage, blockage, short circuit and external fault during motor operation. Protection, and SOE fault event recording function, convenient for on-site maintenance personnel to find the cause of the fault. Suitable for coal, petrochemical, smelting, electric power, ships, and civil construction. The protector has RS485 remote communication interface, DC 4 ~ 20mA analog output, and PLC, PC and other control machines form a network system. Remote monitoring of motor operation.

Features

● Measurement functions are divided into basic measurement (current parameter) and co-selection measurement (voltage, power, phase sequence, residual current (leakage current);

● Start timeout, overload, stall, block, underload, phase failure, unbalance, residual current (ground/leakage), temperature, external fault, phase sequence, overvoltage, undervoltage, underpower, overpower, tE time Motor comprehensive protection function;

● 9-channels DI passive dry node input, signal power supply with built-in DC24V power supply;

● 5-channels DO output, which can meet the direct start, star-delta start, autotransformer start, soft start and other starting modes. Real-time remote control "start/stop" operation of the remote master station can be realized through the communication bus;

● It has standard RS485 communication interface and adopts Modbus-RTU and Profibus-DP communication protocol to ensure fast and reliable communication of the host computer;

● It has a DC4-20mA analog output interface and is directly connected to the DCS system to monitor the field devices.

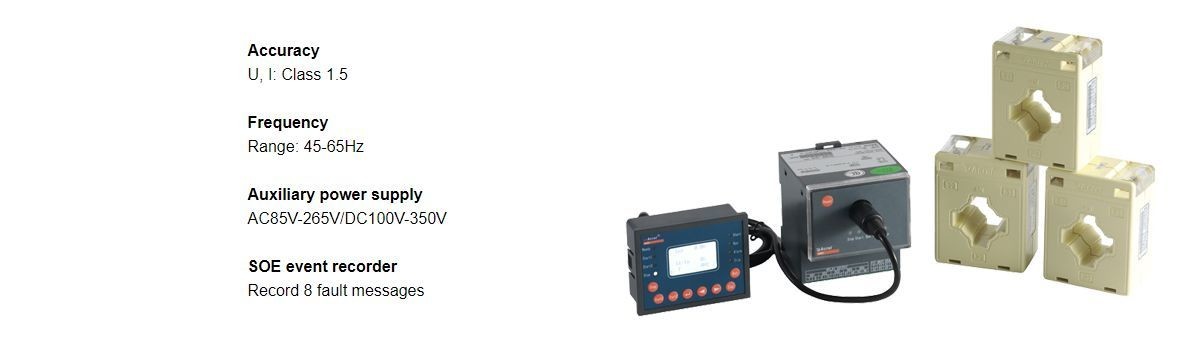

Technical Parameters

Technical data of motor protector ARD2F-25
Auxiliary power supply of protector	AC85V~265V/DC100V~350V, power consumption ≤7VA
Rated working voltage of motor	AC380V/AC660V, 50H/60Hz
Rated working current of motor	1A(0.1 ~9999)	Small specific current transformer
	5A(0.1 ~9999)
	1.6A(0.4A—1.6A)
	6.3A(1.6A~6.3A)
	25A(6.3A~25A)
	100A(25A~100A)
	250A(63A-250A)	Specific current transformer
	800A(250A~800A)
Relay output contactor, rated load capacity	4-way,AC250V, 3A, DC30V, 3A
Switching input	2-way, optical isolation
Communication	RS485 Modbus
Volume of SOE event recorder	8 events
Environment	Working temperature	-10℃-55℃
	Storage temperature	-20℃-65℃
	Relative humidity	5%-95%, no dew
	Altitude	≤2000m
Class of pollution	2
Protection level	IP20

Rated current of motor protector(A)	current ratio setting	Transformer primary side turns	Setting current Is range(A)	Motor Power(kW)
1	able to set	5	0.1~9999	0.12~440
5		1	0.1~9999	0.12~440
1.6	unable to set	1	0.4~1.6	0.12~0.55
6.3		1	1.6~6.3	0.75~2.2
25		1	6.3~25	3~11
100		1	25~100	15~45
250		1	63~250	55~132
800		1	250~800	160~440

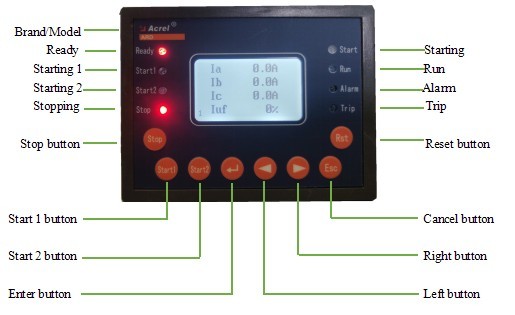

Function

Wiring

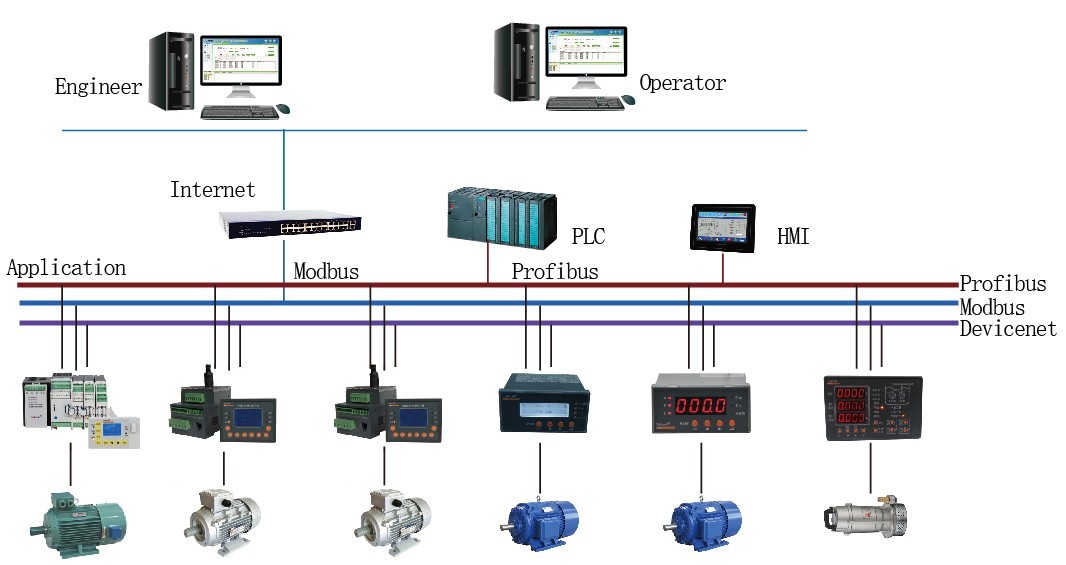

Typical connection
