Stainless Steel Tank Shell Mirror Surface Automatic Buffing Machine

Categories Tank Polishing Machine
Brand Name: Trancar Industries
Model Number: TCM-T
Certification: CE/ISO
Place of Origin: China
MOQ: 1 set
Price: USD 9000-25000 Dollar per set
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 25 sets per Month
Delivery Time: 35 work days
Packaging Details: Custom design plywood box
product name: Stainless steel tank shell mirror surface automatic buffing machine
Dimension: 2500x1600x3080mm
Weight: 2200 kg
Color: Blue/Red/Grey
Voltage: 380V 400V 415V etc
Provide: ODM & OEM
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Stainless Steel Tank Shell Mirror Surface Automatic Buffing Machine

Stainless steel tank shell mirror surface automatic buffing machine

Trancar Industries Stainless steel tank shell mirror surface automatic buffing machine is made up of column and boom,This model is suitable for all kinds of stainless steel tank shell surface buffing,such as industrial tanks internal and external polishing and buffing,also workable for cylinder interior & exterior surface,pressure vessel,industrial container surface and the circumferential welded seams polishing.This machine is widely used in medical area,chemical,environmental purification,food,beverage and water filter,etc.


It could buffing all kinds of steel metal cylinder tanks such as,atmospheric / pressure tanks,CIP-tanks,Milk / Creamn/ Yogurt Tanks,Chocolate Processing tanks,Beer Fermentation Tanks,Yeast propagation Tanks,Mixer,Bio / Cosmetics Reactors,Pharma Mixers,centrifugal cylinder shell,crystal furnace tank shell etc.#automaticbuffingmachine #stainlesssteeltankpolishingmachine


Ss tank shell mirror surface automatic buffing machine parameter:


Normal configuration(customer design acceptable)

Steel tank size

Outside diameter

400~5000mm / 7000 mm

Inside diameter

400~5000mm / 7000 mm

Length

<=5000mm / 8000 mm

Tank Roller Max.Loading capacity

1 Ton,2 Ton,5 Ton,10 Ton for option or customization 13T,15 T 20T.

Polishing Precision

Surface roughness(Ra)

<=0.25μm

Production Efficiency

Polishing working speed

6~12 m2/h

Total Dimension

Machine Dimension

3500*1600*3080mm

Column Dimension

300x400x8 mm

Beam Dimension

150x200x6 mm

Input total Power

/

12 kw

Power Supply

380V 415V / 50Hz 60HZ / 3p or Customization

Machine Weight

/

2250kg

Color

Grey/Green/Blue/Red/Yellow Custom design

Suitable Polishing Material

Abrasive sanding belts,grinding wheels (flap/cloth/ emery/Nylon wheel etc)

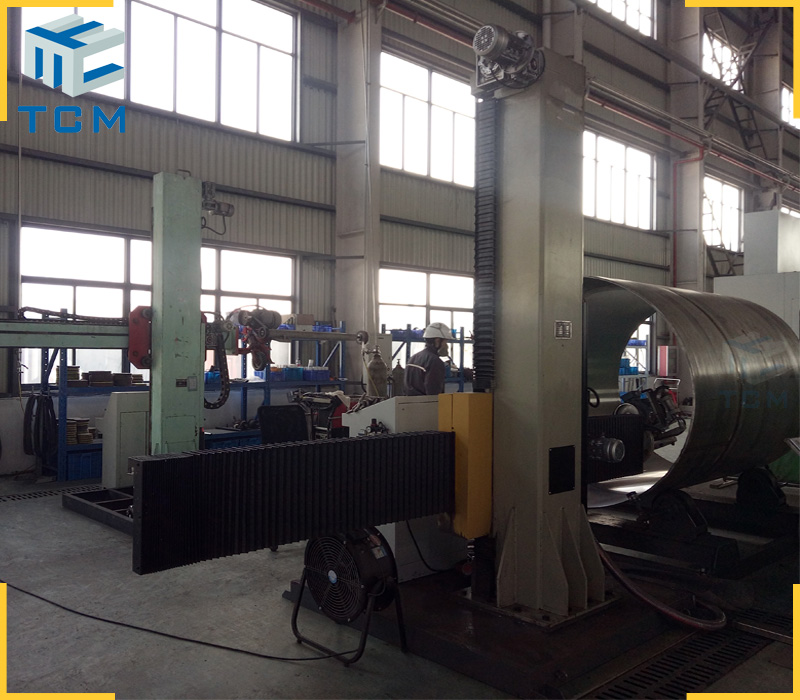

tank buffing machine.jpg

Trancar Polishing machine delivery and package:
