Tank Surface Automatic Stainless Steel Polishing Machine

Categories Tank Polishing Machine
Brand Name: Trancar Industries
Model Number: TCM-T
Certification: CE ISO
Place of Origin: China
MOQ: 1 set
Price: 5000-12000 USD/set
Payment Terms: T/T, Western Union, L/C
Supply Ability: 20 sets per month
Delivery Time: 10-35 workdays
Packaging Details: Custom design Plywood boxes+carton+PE film
Power supply: 380V/400V/415 etc
Polisher Color: Blue/Red/Grey
Rotator loading capacity: 1ton/2ton/5ton/10ton/15Ton
input power: 12kw
Dimension: 3500x1600x3080mm
Weight: 2200 kg
Warranty: 1 year
After surface provided: Engineer oversea service is available
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

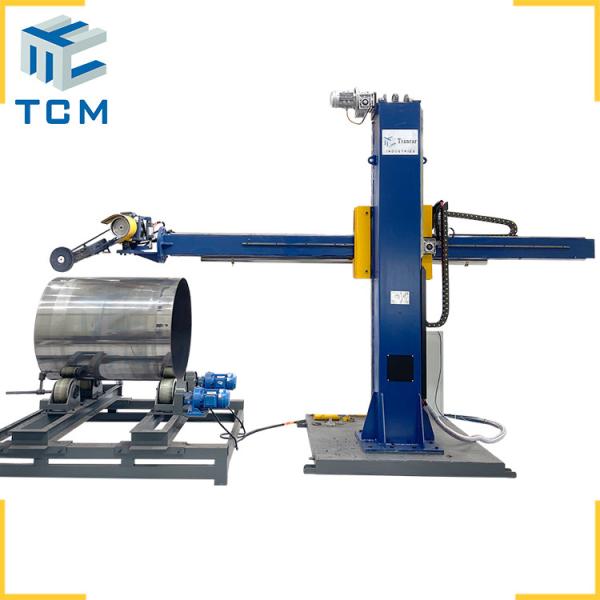

Tank Surface Automatic Stainless Steel Polishing Machine

Stainless steel tank surface automatic polishing machine from China

How to polish stainless steel tank inner outer surface with Trancar Industries TCM-T semi-automatic polishing machine?

Trancar Industries TCM-T column and boom manipulator stainless steel tank automatic polishing machine,This model is suitable for not only all kinds of stainless steel tanks ,industrial tanks internal and external polishing grinding and buffing,

but surface of the cylinder inside and outside,pressure vessel,industrial container and the circumferential welded seams polishing.This machine is widely used in medical area,chemical,environmental purification,food ,beverage and water filter,

etc.It could buffing all kinds of steel metal cylinder tanks such as,atmospheric / pressure tanks,CIP-tanks,Milk / Cream /

Yoghurt Tanks,Chocolate Processing tanks,Beer Fermentation Tanks,Yeast propagation Tanks,Mixer,Bio / Cosmetics Reactors,Pharma Mixers,centrifugal cylinder shell,crystal furnace tank shell etc.

TCM-T Steel tank automatic polishing machine parameter:

Normal configuration(customer design acceptable)

Steel tank size

Outside diameter

400~5000mm / 7000 mm

Inside diameter

400~5000mm / 7000 mm

Length

<=5000mm / 8000 mm

Tank Roller Max.Loading capacity

1 Ton,2 Ton,5 Ton,10 Ton for option or customization 13T,15 T 20T.

Polishing Precision

Surface roughness(Ra)

<=0.25μm

Production Efficiency

Polishing working speed

6~12 m2/h

Total Dimension

Machine Dimension

3500*1600*3080mm

Column Dimension

300x400x8 mm

Beam Dimension

150x200x6 mm

Input total Power

/

12 kw

Power Supply

380V 415V / 50Hz 60HZ / 3p or Customization

Machine Weight

/

2250kg

Color

Grey/Green/Blue/Red/Yellow Custom design

Suitable Polishing Material

Abrasive sanding belts,grinding wheels (flap/cloth/ emery/Nylon wheel etc)
