One Straight And One RA L- Shaped Microwave Waveguide Rotary Joints

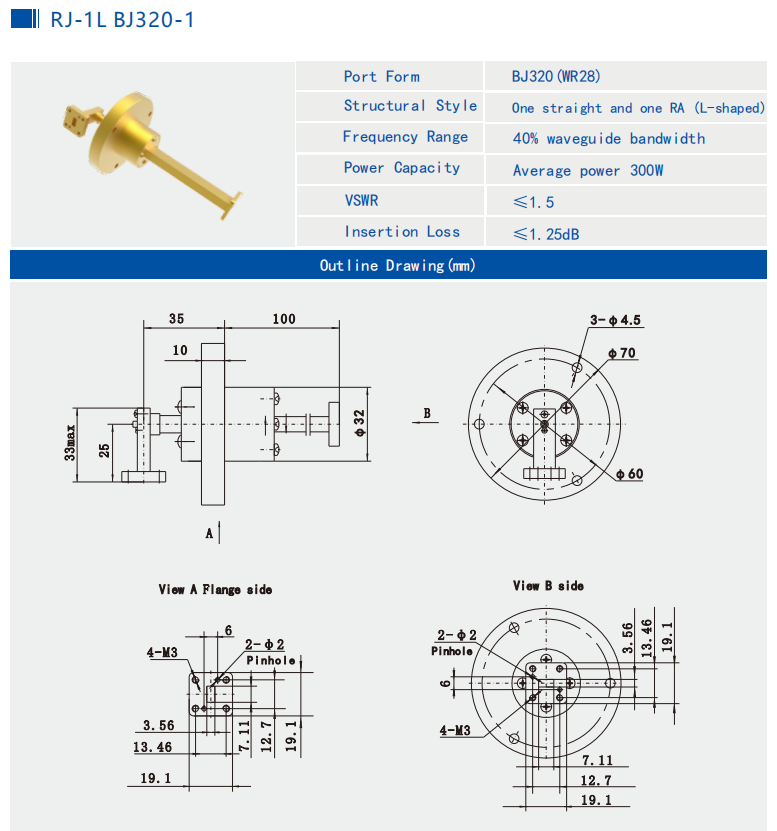

Detailed Drawing

Test Curve Example:

Application:

1. Radar system: Waveguide rotary joint is the key device in the mechanically scanned radar antenna feedline system. It can ensure the efficient transmission of microwave signals in the feedline while the radar antenna rotates 360°, ensuring that the radar system can accurately detect and track targets.
2. Aerospace field: In the aircraft, avionics equipment, waveguide rotary joints are used to realize signal transmission in different directions, to meet the needs of communication and navigation in various attitudes of the aircraft. For example, in the aircraft's airborne radar, communication antennas and other equipment, waveguide rotary joints can ensure stable signal transmission in different directions.
3. Satellite communication: In the satellite communication system, waveguide rotary joints can be used in the rotating part of satellite antenna to enable the satellite to maintain a stable communication connection in the orbit, and at the same time, it can be adjusted in attitude according to the need to realize the coverage of the ground or other satellites.
4. Industrial automation: In some industrial automation equipment, such as rotary robots and automated production lines, waveguide rotary joints can be used to realize signal transmission and control within the equipment, improving the flexibility and reliability of the equipment.

NOTE:
We have over 10,000 types of Connector, if the connector you are using is not found, please contact us with your details.

Xi'an Elite Electronic Industrial Co., Ltd. is a national high-tech enterprise that specializes in R & D, manufacture and sales of RF connectors, adapters, cable assemblies, wave-guide products, glass-to-metal hermetic connectors, micro d-sub, microwave rotary joints and other microwave components. These RF/Microwave products are widely used in aerospace, aviation, navigation, 5G, satellite, communications, antennas and other important electrical systems.

AS the qualified components supplier of many national high tech projects, Elite Electronic has more than 22+ years ODM experience on Interconnect Components. With a commitment to innovation and quality, Xi'an Elite Electronic provides cutting-edge solutions that empower technological advancements and drive industry growth.

Welcome to contact and visit Elite Electronic for business relationships and mutual success!
