| Brand Name: | ELT (Elite) |
| Model Number: | ELT- RJ-1L3.5 |
| Certification: | CE ROHS |
| Place of Origin: | China |
| MOQ: | 100pcs |
| Price: | Negotiable |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 10,000 Pieces Per Month |
| Delivery Time: | Within in 3 weeks |
| Packaging Details: | Standard Export Carton |

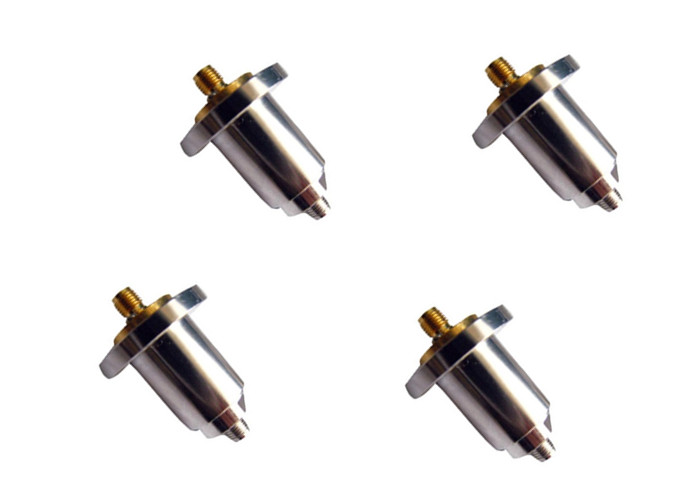

| Product name: | Microwave Rotary (Joint) |
| Input and output: | 3.5-K/3.5-K |
| Frequency: | DC-40GHz |
| VSWR: | ≤1.60 |
| Insertion loss: | 1.3dB |
| Material: | Brass |
| Company Info. |
| Xi'an Elite Electronic Industry Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Microwave rotary joint is essential part to guarantee the normal work of microwave rotary antenna. When the antenna is constantly rotating, the microwave signal is transmitted from the transmitter to the antenna, or from the antenna to the receiver, the azimuth and pitching search is realized.
Our company can design and produce various single channel coaxial
rotary joint, multichannel rotary joint, MMW rotary joint, product
with characteristics of small standing wave, low loss, small phase
fluctuation, high integration, etc, it’s widely used in microwave
devices of radar, navigation, surveillance,etc.
| Working temperature | -40-+70°C |
| Frequency | DC-40GHz |
| Input and output | 3.5-K/3.5-K |
| VSWR | ≤1.6 |
| VSWR fluctuation | 0.05 |
| Insertion loss | 1.3dB |
| Insertion loss fluctuation | 0.1dB |
| Speed | 10 revolutions per minute |
Detailed Drawing
