KRJ-180CGYNL Vertical entry 100 BASE RJ45 Shielded Ethernet Connector with LEDS

Categories RJ45 Lan Jack
Place of Origin: DongGuan of China
Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
MOQ: 1 piece
Packaging Details: Tray in Carton
Delivery Time: 10 days
Payment Terms: T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability: 100K pcs/day
Model Number: KRJ-180CGYNL
Price: Please contact us to get the latest price.
Product Name: RJ45 Shielded Connector
Feature: Metal pcb MOUNTABLE rj45 jack
rj45 port: 1x1,1x2,2x2 etc,custom
LEDS/EMI fingers: customized
Gender: Female,Receptacle
Applications: switch,transceiver,laptop,computer RJ45 etc
working temperature: - 40 ℃ ~ 85 ℃
Storage temperature: - 40 ℃ ~ 85 ℃
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

KRJ-180CGYNL Vertical entry 100 BASE RJ45 Shielded Ethernet Connector with LEDS

KRJ-180CGYNL Vertical entry 100 BASE RJ45 Shielded Ethernet Connector with LEDS

Our strengths:

Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet

Type: RJ45 built in magnetics

Working frequency: high frequency characteristic: filtering, anti-interference

Working temperature: - 40 ℃ - 85 ℃

Storage temperature: - 40 ℃ - 85 ℃

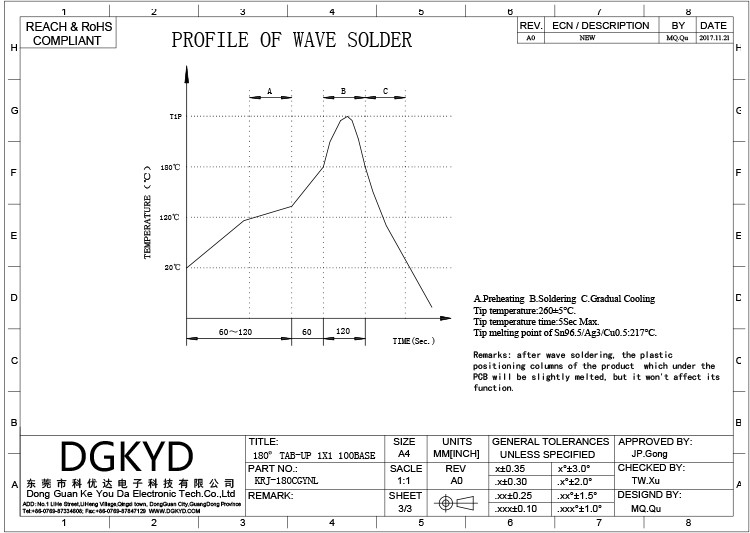

Lead free soldering: wave soldering height up to 265 ℃


RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply

1. Business mode: Manufacturer

2. Delivery time: on time delivery, around two weeks.

3. Specs for choices: LED indicator light(green, yellow, red, orange, blue, bi-color LED)

Shield with EMI fingers or not

coil ratio of magnetic core

magnetics circuit diversification optional

contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)

plastic housing material (PBT,PA46,PA9T, LCP)

4. The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!


Performance parameters:

1. Applied to Ethernet, coil ratio: 1CT: 1CT

2. Meet IEEE 802.3 & ANSI X 3.263 standard

3. Open circuit inductance (OCL): 350uH (MIN) @ 100kHz, 0.1VRMS with 8Ma DC Bias

4. Wave soldering process of 265 ℃ Max meeting the requirements of EU ROHS standard

5. Withstand voltage: 2250VDC 1mA max, 60s

6.Impedance: 100 ohms

7. RJ45 interface meets FCC 68.5 standard

8. DC resistance: 1.5 Ω


Parameters

Part NumberKRJ-180CGYNLBrandDGKYD/OEM/ODM
Place of OriginGuangdong of ChinaCertificationRoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type Connector-ModularConnector StyleJack
Jack TypeRJ45Connector Type Modular Jack
Latch StyleStandardLatchTAB-UP
FilterWith FilterLED OptionWith LED
LED ColorL-Green/R-YellowPanel StopsWith Panel Stops
ShieldedYesApplies To Printed Circuit Board
Performance Speed10/100/1000 BASE-T/TXSuitable for welding typeReflowsolding(Alternative).
Port Configuration single PortsNumber of Positions 8
Jack Configuration1X1Terminals per Port8
Shield MaterialCopper Alloy preplated with NickelPCB Mounting Orientation Side Entry (Right Angle)
Contact Mating Area Plating Material Gold 6u/15u/30u/50uContact Base Material Phosphor Bronze
Solder Tail Contact Plating Material Tin-Lead over NickelPCB Mounting Style Through Hole
Termination Method to PC Board Through Hole-Press-FitBoard LockWith/Without Board Lock
Housing Material PBT PolyesterHousing ColorBlack
Housing Material  TemperatureStandardUL Flammability Rating UL 94V-0

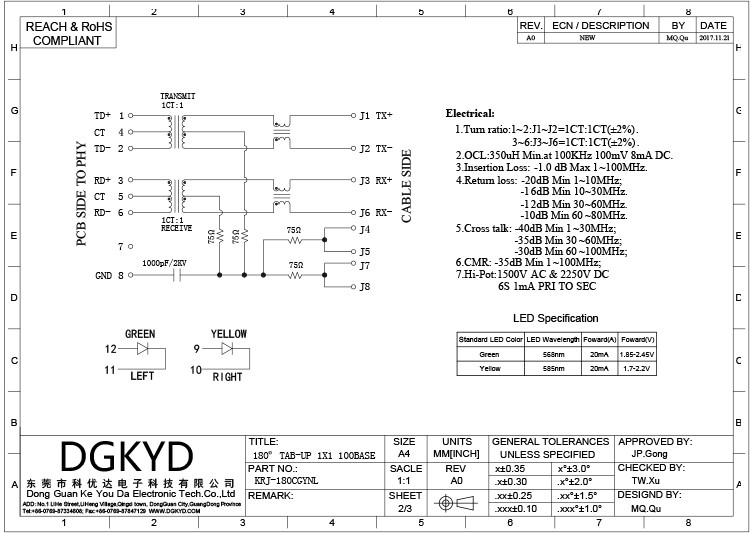

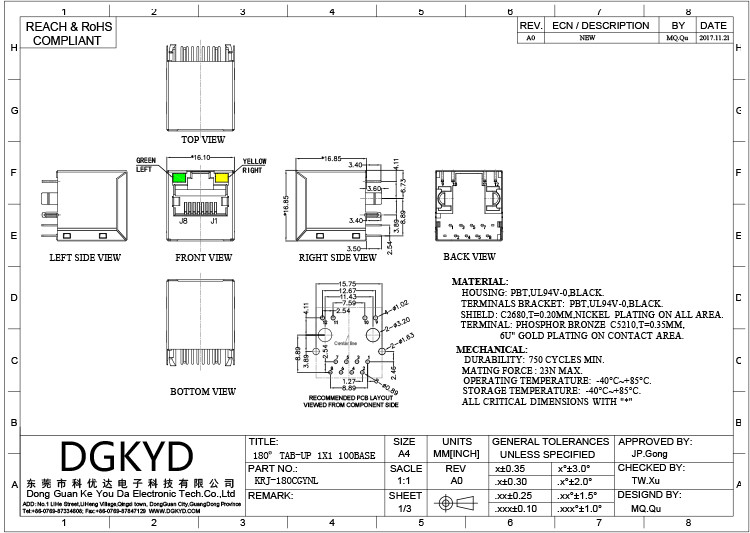

Drawings
