| Categories | MoSi2 Heating Element |
|---|---|
| MOQ: | 10pcs |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | Spark Industry (Henan) Co., Ltd. |
| Delivery Time: | 15 work days |
| Packaging Details: | WOODEN CASE |
| Maximum Temperature: | 1800℃ |
| Thermal Conductivity: | 18-25W/m·K |
| Features: | High temperature resistance, oxidation resistance, long service life |
| Diameter: | 3/6/9/12mm |
| Length: | 100/200/300/400/500/600/700/800/900/1000mm |
| Material: | Mosi2 |
| Density: | 6.5-7.5g/cm³ |
| Surface Load: | 6-12W/cm² |
| Power: | 100/200/300/400/500/600/700/800/900/1000W |
| Usage: | High temperature heating element for industrial furnaces |
| Thermal Expansion Coefficient: | 4.5-5.0×10^-6/K |
| Maximum Bending Strength: | 350MPa |
| Voltage: | 110/220/240V |
| Shape: | W shape |
| Place of Origin: | China |
| Brand Name: | SONGYU |
| Company Info. |
| ZHENGZHOU SONGYU HIGH TEMPERATURE TECHNOLOGY CO.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

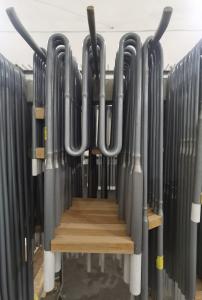

W type Mosi2 Heating Element
The W-shaped MoSi2 heating element is a revolutionary heating solution that sets new standards in the industry. Its unique design and advanced materials make it highly efficient and durable. The molybdenum disilicide material offers excellent resistance to thermal shock and oxidation. The W-shape provides a larger heating surface area, enabling faster heating and more uniform temperature distribution. This heating element is easy to operate and maintain, saving time and effort. Whether used in research laboratories or industrial production lines, it delivers outstanding heating performance.
| Atmosphere | SP1700 | SP1800 |
| Air | 1700 | 1800 |
| N2 Nitrogen | 1600 | 1700 |
| Ar Ne Argon,Helium | 1600 | 1700 |
| Dry Hydrogen(dew point)-80°C | 1150 | 1150 |
| Wet Hydrogen(dew point)-20°C | 1450 | 1450 |
| Exogas(e.g.10% CO2,50%CO,15%H2) | 1600 | 1700 |
| Exogas(e.g.40%CO2,20%CO) | 1400 | 1450 |
| Cracked and partially burnt ammonia | 1400 | 1450 |
|
