| Categories | Lithium Polymer Battery Cell |
|---|---|
| Certification: | CE, RoHS, MSDS, Un38.3 |
| Brand Name: | RESKY |
| Model Number: | LP606090 |
| Place of Origin: | China |
| MOQ: | 10pcs |
| Price: | Negotiable |
| Payment Terms: | Western Union,T/T |
| Supply Ability: | 50000pcs/day |
| Delivery Time: | 7-10days |
| Packaging Details: | Paper box |
| Shape: | Flat shape |
| Electrolyte: | Li(Nicomn)O2 |
| Nominal Capacity: | 4000mAh |
| Weight: | 43.5g |
| Cycle Life: | 500cycles |
| Warranty: | 12months |
| Shipping: | UPS, DHL, FedEx, TNT, by Air, by Sea, Special Line |
| Connector: | Jst, Molex.... |
| Specification: | 6*60*90mm |
| HS Code: | 8507600090 |
| Company Info. |
| Shenzhen Resky Electronics Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

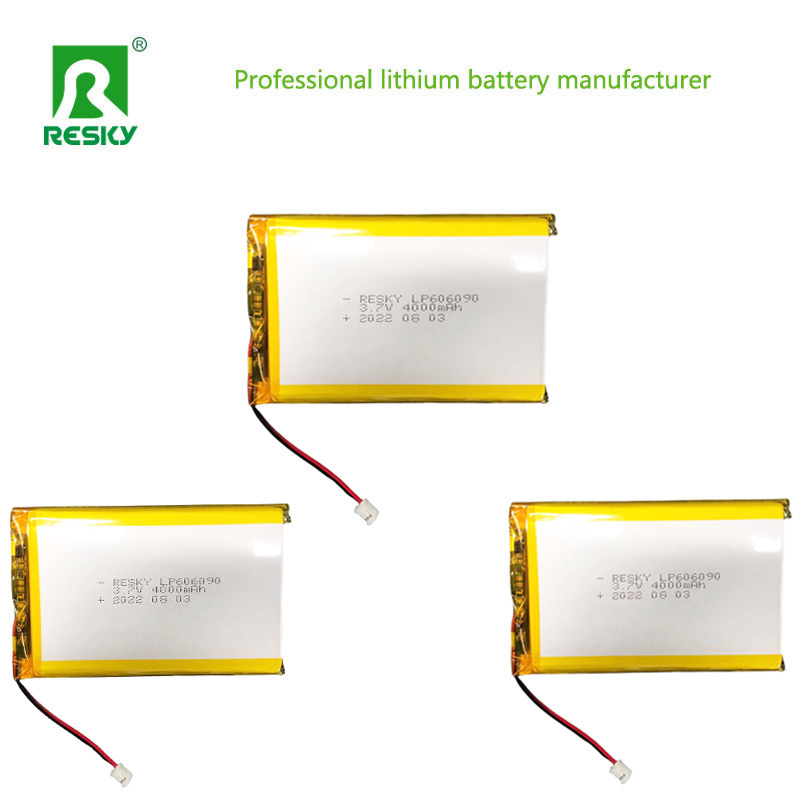

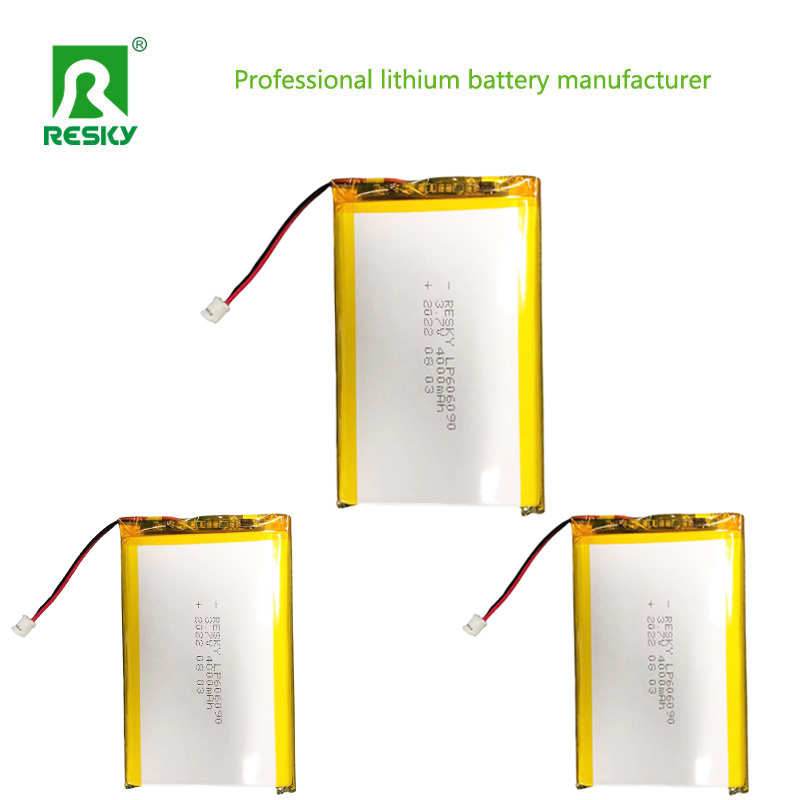

Lithium Polymer Battery Cell 606090 3.7V 4000mAh Rechargeable Lipo Batteries
| NO. | Items | Specifications |
| 1 | batteries | 3.7V 4000mah lipo battery |
| 2 | Charge voltage | 4.2V |
| 3 | Nominal voltage | 3.7V |
| 4 | Nominal capacity | 4000mAh 0.2C Discharge |
| 5 | Charge current | Standard Charging:0.2C Rapid charge: 1.0C |
| 6 | Standard Charging method | 0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C |
| 7 | Charging time | Standard Charging:2.75hours(Ref.) Rapid charge: 2hours(Ref.) |
| 8 | Max.charge current | 0.5C |
| 9 | Max.discharge current | 1.0C |
| 10 | Discharge cut-off voltage | 2.5V0.25V(0.2C) |
| 11 | Operating temperature | Charging: 0 °C ~45 °C Discharging:0 °C ~45 °C |
| 12 | Storage temperature | -10°C~ +45 °C |
| 13 | Dimension | Length:90±0.5mm (not including tabs) Width:60±0.5mm Thickness:6±0.2mm |
| 14 | Drop Test | The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage |
| 15 | cycle time | ≥500times |
Compared with lead-acid batteries:
Higher energy density per unit volume and weight: Lead-acid batteries generally have a lower energy density. For example, to achieve a certain capacity, lead-acid batteries usually need to be much larger and heavier than flat lithium polymer batteries. Flat lithium polymer batteries can provide a similar or even higher capacity in a much smaller and lighter package, which makes them more suitable for portable and space-constrained applications.
Lower absolute capacity in some common applications: In the field of automotive and large-scale energy storage, lead-acid batteries often have much higher capacities, usually ranging from tens to hundreds of ampere-hours (Ah). Common flat lithium polymer batteries used in consumer electronics typically have capacities in the range of a few hundred to a few thousand milliampere-hours (mAh).
